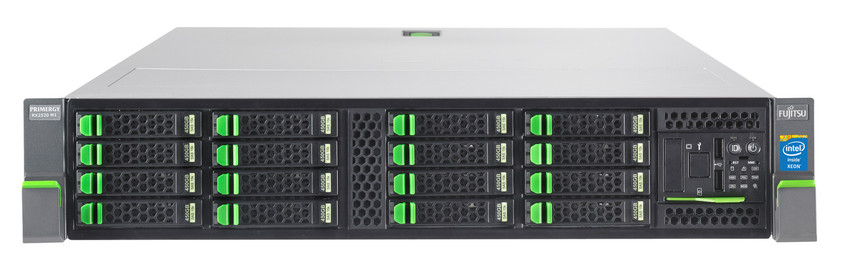

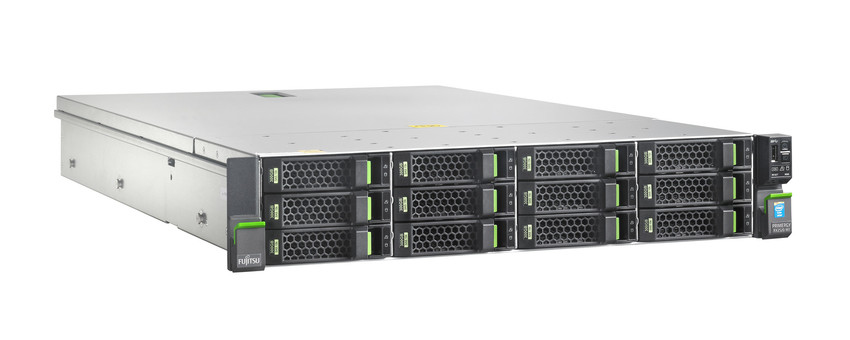

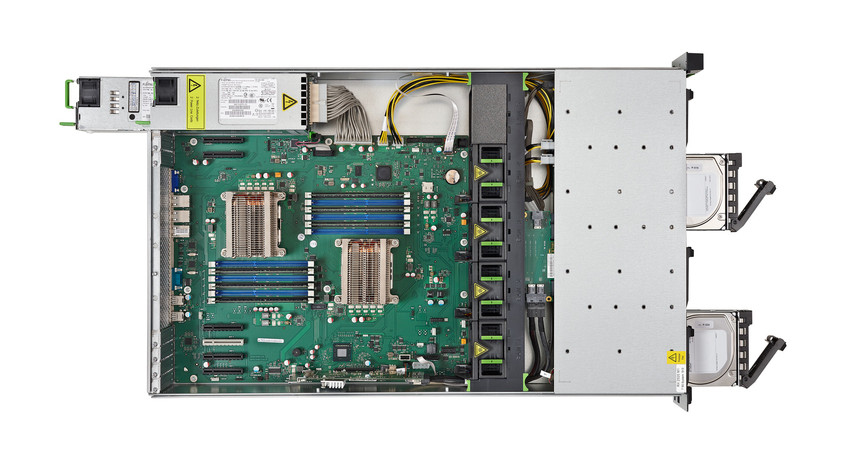

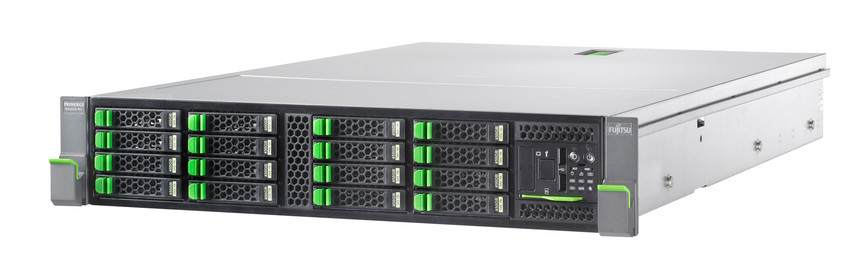

Fujitsu RX2540 M1

Model RX2540 M1Part no. VFY:R2541SC040IN/R9EAN 4053026823043

93 specifications

Overview

Brand: Fujitsu
Category: Server
Model: RX2540 M1
Part numbers: VFY:R2541SC040IN/R9, VFY:R2541SX060DE, VFY:R2541SC070IN, VFY:R2541SC070IN S26361-F2567-D413, VFY:R2541SC070IN S26361-F2567-D423, VFY:R2541SC071IN +34 more
EAN / UPC: 4053026823043, 4057185545365, 4057185530880, 4057185607308 +19 more
Also known as: Fujitsu PRIMERGY RX2540 M1 server 1.6 TB Rack (2U) Intel® Xeon® E5 Family E5-2667 2.9 GHz 256 GB DDR4-SDRAM 715 W

93 specifications in 11 groups

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Xeon® E5 Family
Processor model	E5-2667
Processor frequency	2.9 GHz
Processor boost frequency	3.5 GHz
Processor cores	6
Processor cache	15 MB
Memory channels supported by processor	Quad
Number of processors installed	2
Thermal Design Power (TDP)	130 W
Processor cache type	Smart Cache
System bus rate	8 GT/s
Bus type	QPI
CPU multiplier (bus/core ratio)	35
ECC supported by processor	Yes
Embedded options available	No
Execute Disable Bit	Yes
FSB Parity	No
Graphics & IMC lithography	32 nm
Idle States	Yes
Maximum internal memory supported by processor	750 GB
Maximum number of PCI Express lanes	40
Memory bandwidth supported by processor (max)	51.2 GB/s
Memory clock speeds supported by processor	800,1066,1333,1600 MHz
Memory types supported by processor	DDR3-SDRAM
Number of QPI links	2
Processor codename	Sandy Bridge EP
Processor lithography	32 nm
Processor operating modes	64-bit
Processor package size	52.5 x 45.0 mm
Processor series	Intel Xeon E5-2600
Processor socket	LGA 2011 (Socket R)
Processor threads	12
Scalability	2S
Supported instruction sets	AVX
Tcase	85 °C
Thermal Monitoring Technologies	Yes
Conflict-Free processor	No

Specification	Value
Cabling technology	10/100/1000Base-T(X)
Ethernet LAN	Yes

Specification	Value
Ethernet LAN (RJ-45) ports	1
USB 2.0 ports quantity	5
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	5
Serial ports quantity	1
VGA (D-Sub) ports quantity	1

Specification	Value
PCI Express slots version	3.0

Specification	Value
Chassis type	Rack (2U)

Specification	Value
Operating system installed	No

Specification	Value
CPU configuration (max)	2
Enhanced Intel SpeedStep Technology	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	Yes
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	Yes
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Identity Protection Technology version	0.00
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Anti-Theft Technology (Intel® AT)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Identity Protection Technology (Intel® IPT)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Quick Sync Video Technology	No
Intel® Smart Cache	Yes
Intel® Turbo Boost Technology	2.0
Intel® Wireless Display (Intel® WiDi)	No
Processor ARK ID	64589

Specification	Value
Redundant power supply (RPS) support	Yes
Power supply	715 W
