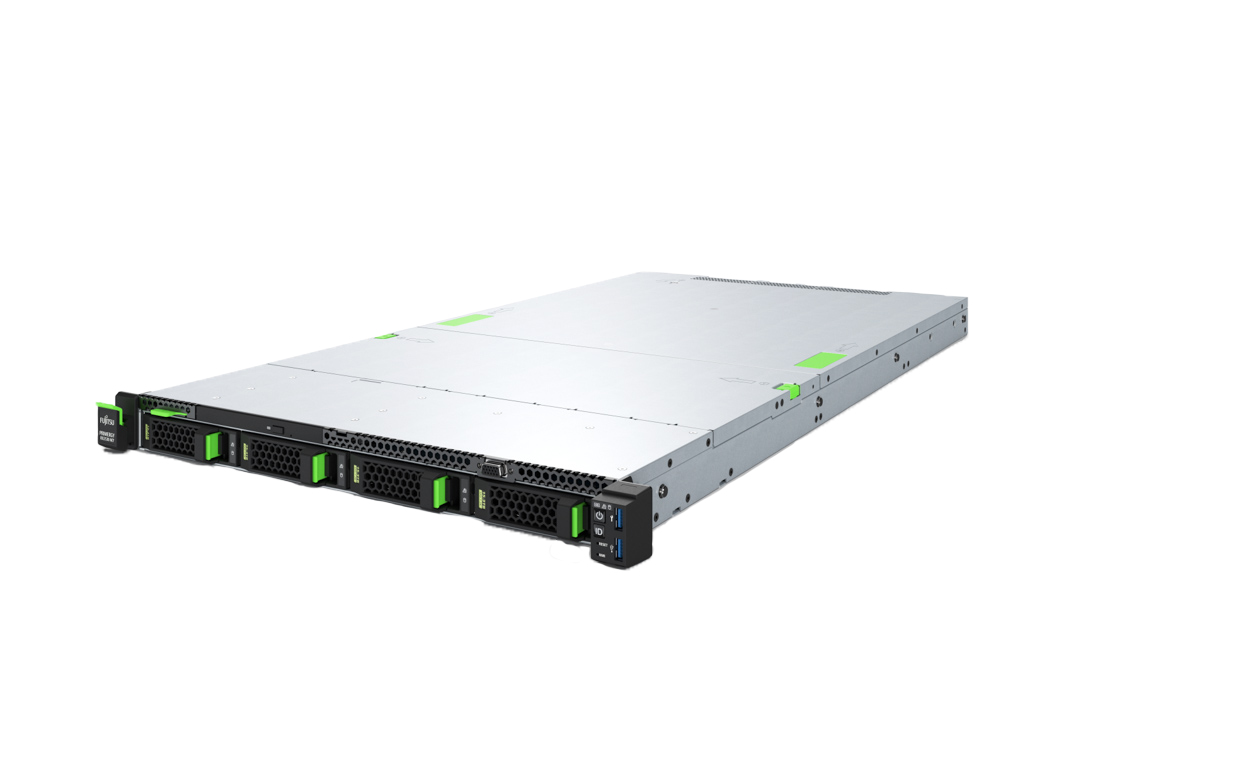

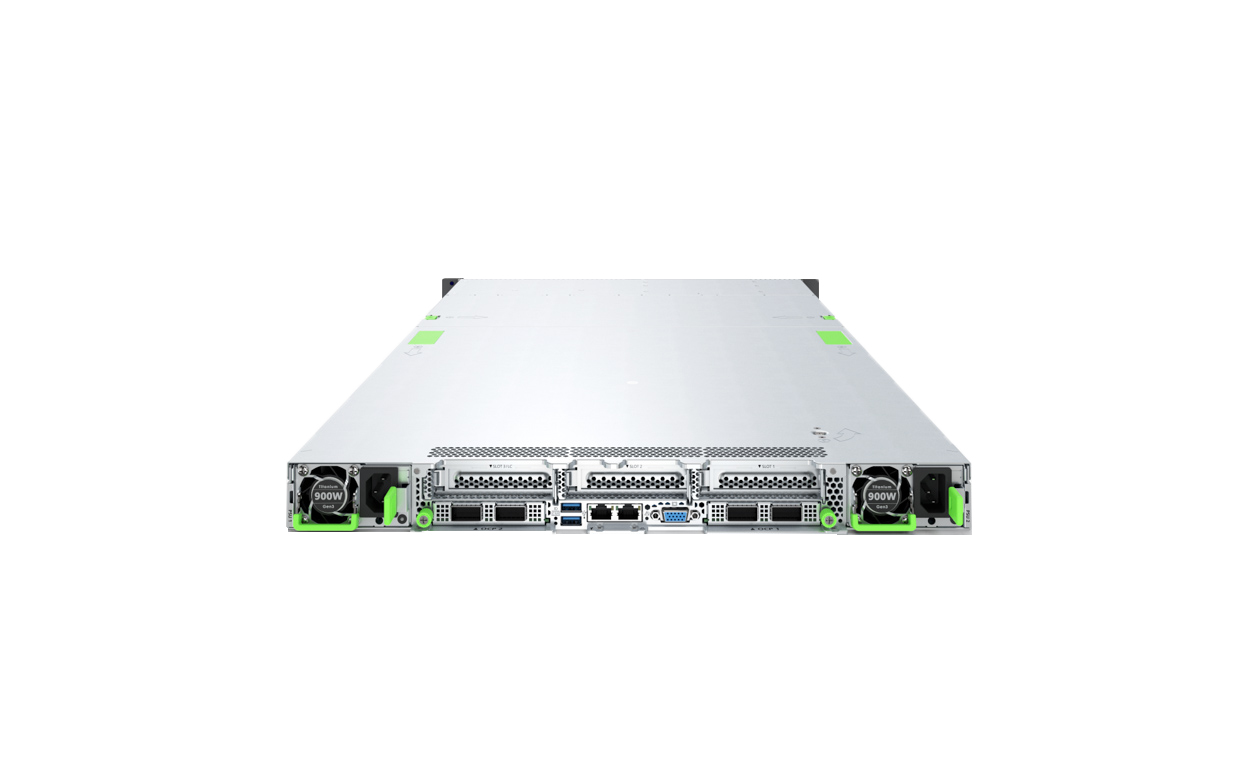

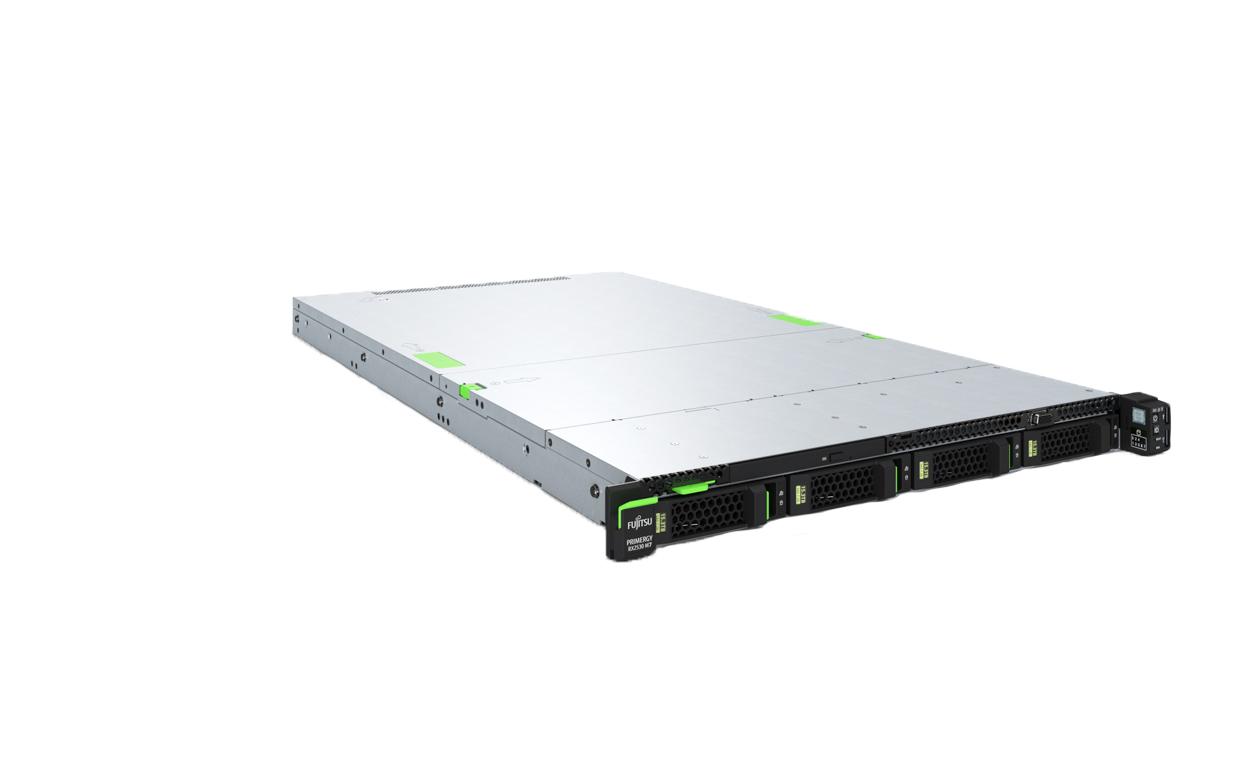

RX2530 M7
Model RX2530 M7Part no. VFY:R2537SC562INEAN 4066733144240
42 specifications
- ProcessorIntel Xeon Silver
- Memory32 GB
- Storage0 GB
- OSNo
- Weight18.2 kg
- ColourBlack
Overview
- Processor
- Intel Xeon Silver
- Memory
- 32 GB
- Storage
- 0 GB
- OS
- No
- Weight
- 18.2 kg
- Colour
- Black
- Brand
- Fujitsu
- Category
- Server
- Model
- RX2530 M7
- Part numbers
- VFY:R2537SC562IN, VFY:R2537SC340IN, VFY:R2537SC330IN, VFY:R2537SC345IN, VFY:R2537SC380IN, VFY:R2537SC540IN +2 more
- EAN / UPC
- 4066733144240, 4065221942214, 4065221942207, 4065221946076 +4 more
- Also known as
- Fujitsu PRIMERGY RX2530 M7 server 0 GB Rack (1U) Intel Xeon Silver 4410Y 2 GHz 32 GB DDR5-SDRAM 900 W
Specifications
42 specifications in 12 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel Xeon Silver |
| Processor model | 4410Y |
| Processor frequency | 2 GHz |
| Processor boost frequency | 3.9 GHz |
| Processor cores | 12 |
| Processor cache | 30 MB |
| Motherboard chipset | Intel C741 |
| Configurable TDP-down | 4.5 W |
| Bus type | OPI |
Memory
| Specification | Value |
|---|---|
| Internal memory | 32 GB |
| Internal memory type | DDR5-SDRAM |
| Memory clock speed | 4800 MHz |
| Maximum internal memory | 8 TB |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 0 GB |
| HDD size | 2.5" |
| Number of HDDs supported | 8 |
| RAID support | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| VGA (D-Sub) ports quantity | 1 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x16 (Gen 4.x) slots | 1 |
Design
| Specification | Value |
|---|---|
| Chassis type | Rack (1U) |
| Product colour | Black |
| Redundant fans support | Yes |
Performance
| Specification | Value |
|---|---|
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
Software
| Specification | Value |
|---|---|
| Operating system installed | No |
| Compatible operating systems | Windows Server 2022 Datacenter Windows Server 2022 Standard Windows Server 2019 Datacenter Windows Server 2019 Standard Windows Server 2019 Essentials SUSE® Linux Enterprise Server 15 Red Hat® Enterprise Linux 8 |
Processor special features
| Specification | Value |
|---|---|
| CPU configuration (max) | 1 |
| Intel Secure Key Technology version | 1.00 |
| Intel Smart Response Technology version | 1.00 |
| Intel TSX-NI version | 0.00 |
Power
| Specification | Value |
|---|---|
| Redundant power supply (RPS) support | Yes |
| Power supply | 900 W |
| Number of redundant power supplies installed | 2 |
| Power supply input voltage | 100 - 240 V |
| Power supply input frequency | 50/60 Hz |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 482.2 mm |
| Depth | 807.5 mm |
| Height | 42.7 mm |
| Weight | 18.2 kg |
