Fujitsu RX2520 M1
Model RX2520 M1Part no. VFY:R2521SC040IN + S26361-F2567-D413EAN 4053162438378
123 specifications
- ProcessorIntel® Xeon® E5 V2 Family
- Memory8 GB
- Storage0 GB
- Weight25 kg
- Processor manufacturerIntel
- Cabling technology10/100/1000Base-T(X)
Overview
- Processor
- Intel® Xeon® E5 V2 Family
- Memory
- 8 GB
- Storage
- 0 GB
- Weight
- 25 kg
- Processor manufacturer
- Intel
- Cabling technology
- 10/100/1000Base-T(X)
- Brand
- Fujitsu
- Category
- Server
- Model
- RX2520 M1
- Part numbers
- VFY:R2521SC040IN + S26361-F2567-D413, VFY:R2521SC010IN, VFY:R2521SC020IN, VFY:R2521SC040IN, VFY:R2521SX140DE, VFY:R2521SX160FR +34 more
- EAN / UPC
- 4053162438378, 4053026630351, 4053162429017, 4053026630368 +46 more
- Also known as
- Fujitsu PRIMERGY RX2520 M1 server 0 GB Rack (2U) Intel® Xeon® E5 V2 Family E5-2403V2 1.8 GHz 8 GB DDR3-SDRAM 450 W
Specifications
123 specifications in 14 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Xeon® E5 V2 Family |
| Processor model | E5-2403V2 |
| Processor frequency | 1.8 GHz |
| Processor boost frequency | 1.8 GHz |
| Processor cores | 4 |
| Processor cache | 10 MB |
| Motherboard chipset | Intel C600 |
| Memory channels supported by processor | Triple |
| Number of processors installed | 1 |
| Thermal Design Power (TDP) | 80 W |
| Processor cache type | Smart Cache |
| System bus rate | 6.4 GT/s |
| Bus type | QPI |
| ECC supported by processor | Yes |
| Embedded options available | No |
| Execute Disable Bit | Yes |
| FSB Parity | No |
| Idle States | Yes |
| Maximum internal memory supported by processor | 384 GB |
| Maximum number of PCI Express lanes | 24 |
| Maximum number of SMP processors | 2 |
| Memory bandwidth supported by processor (max) | 32 GB/s |
| Memory clock speeds supported by processor | 800,1066,1333 MHz |
| Memory types supported by processor | DDR3-SDRAM |
| Number of QPI links | 1 |
| PCI Express configurations | x4, x8, x16 |
| Physical Address Extension (PAE) | 46 bit |
| Physical Address Extension (PAE) | Yes |
| Processor code | SR1AL |
| Processor codename | Ivy Bridge EN |
| Processor lithography | 22 nm |
| Processor operating modes | 64-bit |
| Processor package size | 45 x 42.5 mm |
| Processor series | Intel Xeon E5-2400 v2 |
| Processor socket | LGA 1356 (Socket B2) |
| Processor threads | 4 |
| Scalability | 2S |
| Stepping | S1 |
| Supported instruction sets | AVX |
| Tcase | 76 °C |
| Thermal Monitoring Technologies | Yes |
| Conflict-Free processor | No |
Memory
| Specification | Value |
|---|---|
| Internal memory | 8 GB |
| Internal memory type | DDR3-SDRAM |
| ECC | Yes |
| Memory clock speed | 1600 MHz |
| Memory layout (slots x size) | 1 x 8 GB |
| Memory slots | 12 |
| Maximum internal memory | 192 GB |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 0 GB |
| Number of HDDs installed | 0 |
| HDD interface | Serial ATA, Serial Attached SCSI (SAS) |
| HDD size | 2.5" |
| Number of HDDs supported | 16 |
| RAID support | Yes |
| RAID levels | 0, 1, 10 |
| Hot-Plug support | Yes |
| Hot-swap | Yes |
| Optical drive type | DVD Super Multi |
Network
| Specification | Value |
|---|---|
| Cabling technology | 10/100/1000Base-T(X) |
| Ethernet LAN | Yes |
| Ethernet interface type | Fast Ethernet, Gigabit Ethernet |
| LAN controller | Intel I210 |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 3 |
| USB 2.0 ports quantity | 6 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| Serial ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x4 (Gen 2.x) slots | 1 |
| PCI Express x8 (Gen 3.x) slots | 6 |
| PCI Express slots version | 3.0 |
Design
| Specification | Value |
|---|---|
| Chassis type | Rack (2U) |
| Rack mounting | Yes |
Software
| Specification | Value |
|---|---|
| Compatible operating systems | Windows Server 2008, 2012/R2 Hyper-V Server Windows Web Server 2008 R2 Windows Small Business Server 2011 VMware vSphere 5.5 SUSE Linux Enterprise Server 11/12 Red Hat® Enterprise Linux 5/6 Citrix XenServer |
Processor special features
| Specification | Value |
|---|---|
| CPU configuration (max) | 2 |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel 64 | Yes |
| Intel Clear Video Technology | No |
| Intel Demand Based Switching | Yes |
| Intel Dual Display Capable Technology | No |
| Intel Enhanced Halt State | Yes |
| Intel FDI Technology | No |
| Intel Fast Memory Access | No |
| Intel Flex Memory Access | No |
| Intel Identity Protection Technology version | 0.00 |
| Intel Rapid Storage Technology | No |
| Intel Secure Key Technology version | 1.00 |
| Intel TSX-NI | No |
| Intel TSX-NI version | 0.00 |
| Intel Trusted Execution Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Anti-Theft Technology (Intel® AT) | No |
| Intel® Clear Video HD Technology (Intel® CVT HD) | No |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | No |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Intel® Identity Protection Technology (Intel® IPT) | No |
| Intel® InTru™ 3D Technology | No |
| Intel® Insider™ | No |
| Intel® My WiFi Technology (Intel® MWT) | No |
| Intel® OS Guard | Yes |
| Intel® Quick Sync Video Technology | No |
| Intel® Secure Key | Yes |
| Intel® Smart Cache | Yes |
| Intel® Turbo Boost Technology | No |
| Intel® Wireless Display (Intel® WiDi) | No |
| Processor ARK ID | 75975 |
Power
| Specification | Value |
|---|---|
| Redundant power supply (RPS) support | Yes |
| Power supply | 450 W |
| Number of redundant power supplies supported | 2 |
| Number of redundant power supplies installed | 1 |
| Number of main power supplies | 0 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 40 °C |
| Operating relative humidity (H-H) | 10 - 85% |
Certificates
| Specification | Value |
|---|---|
| Certification | CB, RoHS, WEEE |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 445 mm |
| Depth | 770 mm |
| Height | 86.9 mm |
| Weight | 25 kg |
Other features
| Specification | Value |
|---|---|
| iSCSI support | Yes |
What people say
Reviews & ratings
Fujitsu RX2520 M1
No reviews yet
Be the first to tell others how Fujitsu RX2520 M1 works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare Fujitsu RX2520 M1

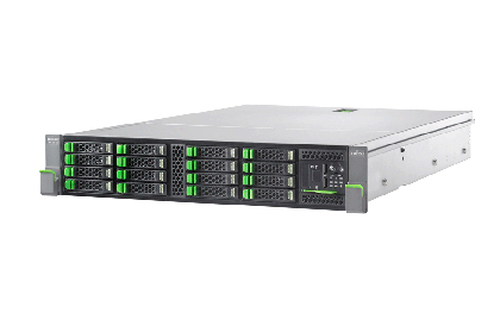

All server comparisons- Fujitsu RX2520 M1 vsFujitsu PRIMERGY RX300S8 serverCompare specs
- Fujitsu RX2520 M1 vsFujitsu PRIMERGY TX140S2 serverCompare specs

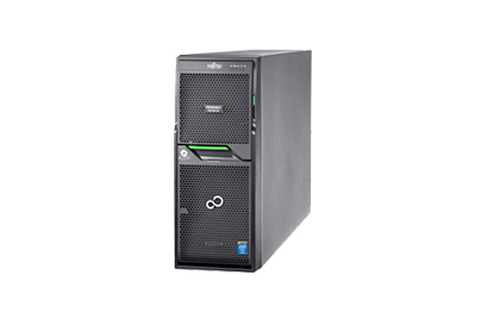

- Fujitsu RX2520 M1 vsFujitsu TX2540 M1Compare specs
- Fujitsu RX2520 M1 vsFujitsu PRIMERGY S8 server Rack Intel® Xeon® E3 V3 Family E3-1220V3Compare specs
- Fujitsu RX2520 M1 vsXerox EFI FieryCompare specs

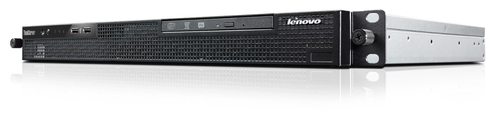

- Fujitsu RX2520 M1 vsLenovo ThinkServer RS140 serverCompare specs

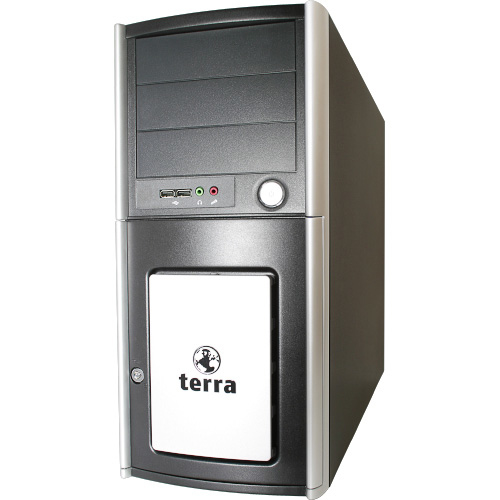

- Fujitsu RX2520 M1 vsTERRA SERVER 5031 G1 (BTO)Compare specs

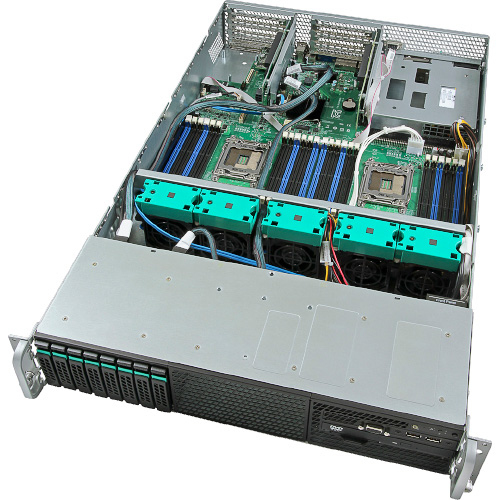

- Fujitsu RX2520 M1 vsTERRA SERVER 7220 G1 (Modular-Konzept/BTO)Compare specs
