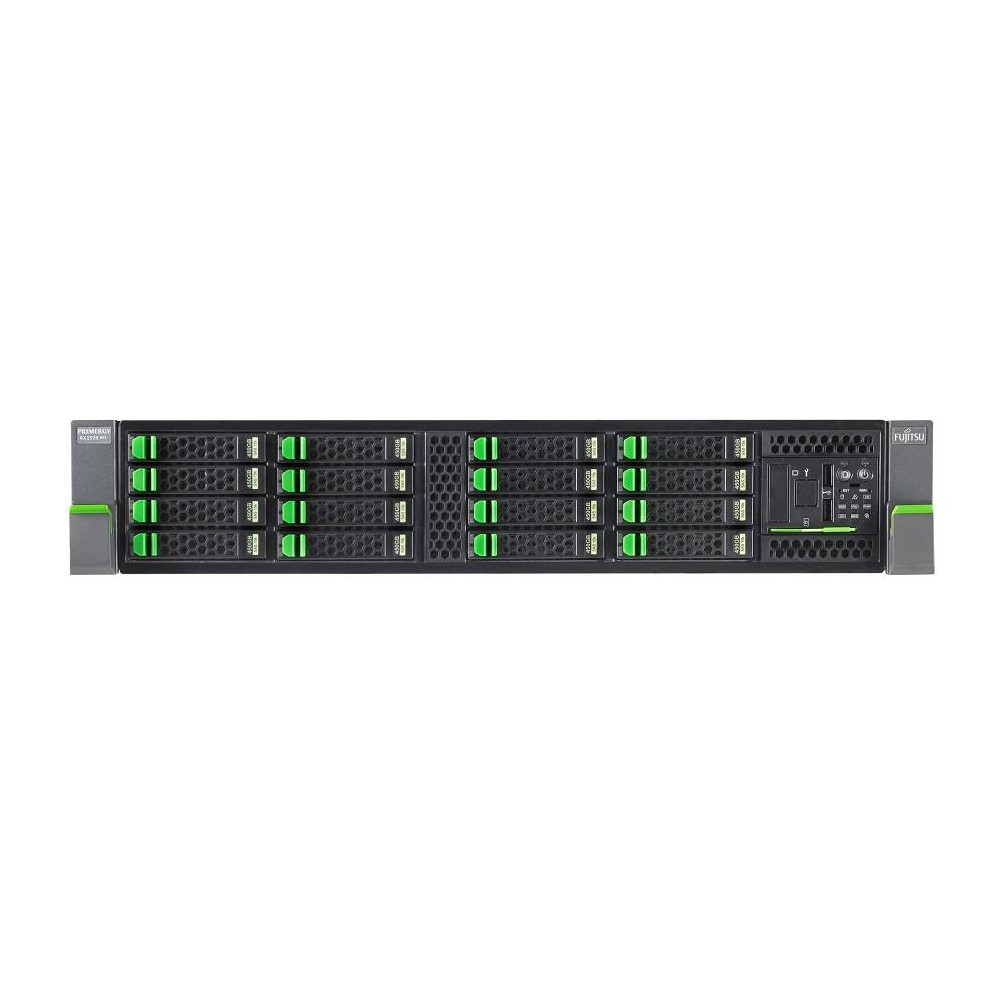

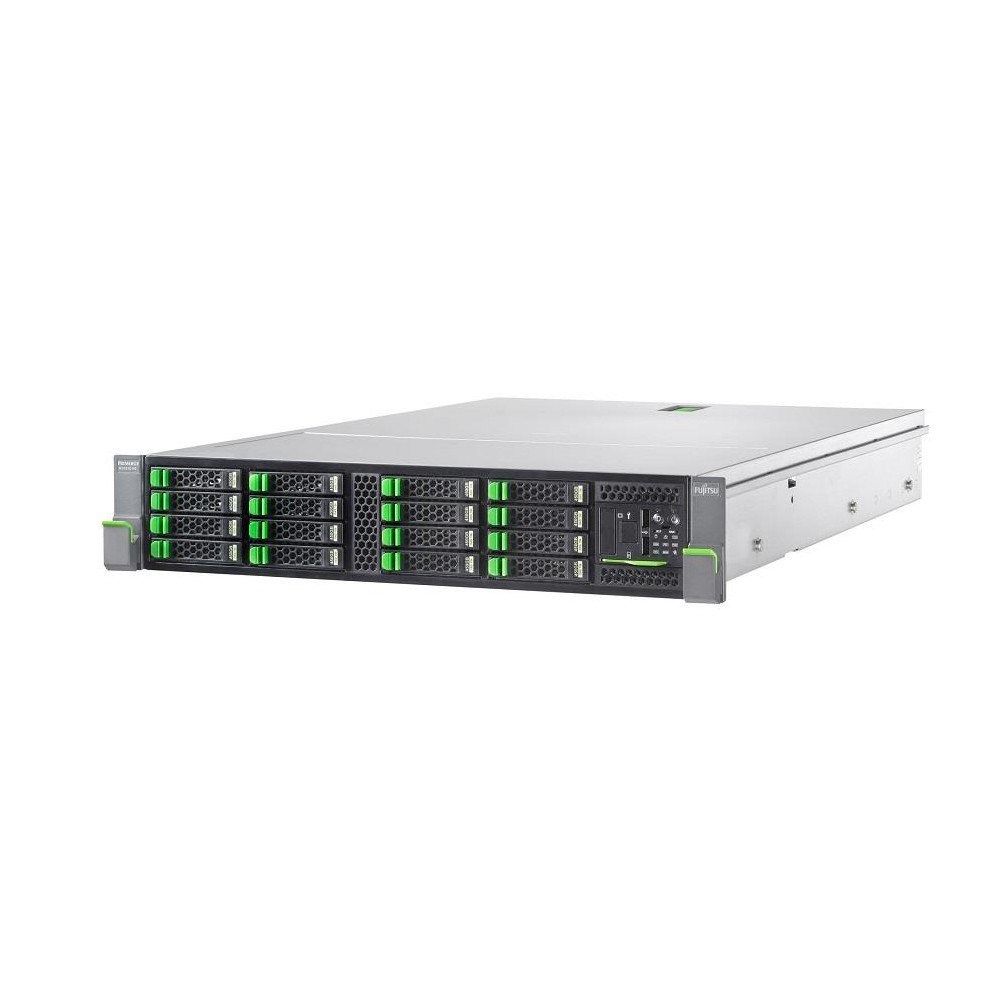

Fujitsu PRIMERGY RX2520 server

600 GB Rack (2U) Intel® Xeon® E5 V2 Family E5-2420V2 2.2 GHz 16 GB DDR3L-SDRAM 450 W

Model RX2520Part no. LKN:R2521S0008PLEAN 4053026800853

100 specifications

Overview

Brand: Fujitsu
Category: Server
Model: RX2520
Part number: LKN:R2521S0008PL
EAN / UPC: 4053026800853, 4053162835900
Also known as: Fujitsu PRIMERGY RX2520 server 600 GB Rack (2U) Intel® Xeon® E5 V2 Family E5-2420V2 2.2 GHz 16 GB DDR3L-SDRAM 450 W

100 specifications in 11 groups

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Xeon® E5 V2 Family
Processor model	E5-2420V2
Processor frequency	2.2 GHz
Processor boost frequency	2.7 GHz
Processor cores	6
Processor cache	15 MB
Memory channels supported by processor	Triple
Number of processors installed	2
Thermal Design Power (TDP)	80 W
Processor cache type	Smart Cache
System bus rate	7.2 GT/s
Bus type	QPI
ECC supported by processor	Yes
Embedded options available	No
Execute Disable Bit	Yes
Idle States	Yes
Maximum internal memory supported by processor	384 GB
Maximum number of PCI Express lanes	24
Memory bandwidth supported by processor (max)	38.4 GB/s
Memory clock speeds supported by processor	800,1066,1333,1600 MHz
Memory types supported by processor	DDR3-SDRAM
Number of QPI links	1
Physical Address Extension (PAE)	46 bit
Physical Address Extension (PAE)	Yes
Processor code	SR1AJ
Processor codename	Ivy Bridge EN
Processor lithography	22 nm
Processor operating modes	64-bit
Processor package size	45 x 42.5 mm
Processor socket	LGA 1356 (Socket B2)
Processor threads	12
Scalability	2S
Stepping	S1
Supported instruction sets	AVX
Tcase	76 °C
Thermal Monitoring Technologies	Yes
Conflict-Free processor	No

Specification	Value
Ethernet LAN (RJ-45) ports	3
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	9
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
DisplayPorts quantity	0
Firewire (IEEE 1394) ports	0
Internal FireWire ports quantity	0
Mini DisplayPorts quantity	0
PS/2 ports quantity	0
Parallel ports quantity	0
Serial ports quantity	1
VGA (D-Sub) ports quantity	1

Specification	Value
PCI Express x8 slots	6
PCI Express slots version	3.0

Specification	Value
Chassis type	Rack (2U)

Specification	Value
Operating system installed	No
Compatible operating systems	Microsoft Windows Server 2012 R2,Microsoft Windows Server 2012,Microsoft Windows Server 2008 R2,Microsoft Windows Server 2008,Oracle VM 3,VMware vSphere,SUSE Linux Enterprise Server,Red Hat Enterprise Linux,Citrix® XenServer™,Microsoft Server Hyper-V 2012,Microsoft Server Hyper-V 2012 R2

Specification	Value
CPU configuration (max)	2
Enhanced Intel SpeedStep Technology	Yes
Intel 64	Yes
Intel Demand Based Switching	Yes
Intel Enhanced Halt State	Yes
Intel Flex Memory Access	No
Intel Identity Protection Technology version	0.00
Intel Secure Key Technology version	1.00
Intel TSX-NI	No
Intel TSX-NI version	0.00
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Identity Protection Technology (Intel® IPT)	No
Intel® OS Guard	Yes
Intel® Secure Key	Yes
Intel® Smart Cache	Yes
Intel® Turbo Boost Technology	2.0
Processor ARK ID	75784

Specification	Value
Redundant power supply (RPS) support	Yes
Power supply	450 W
