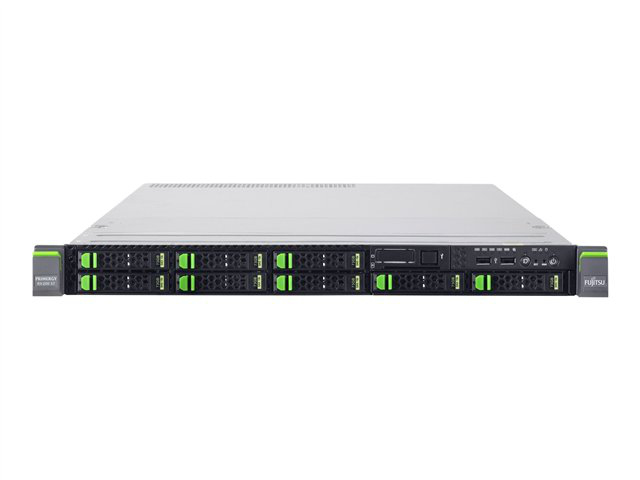

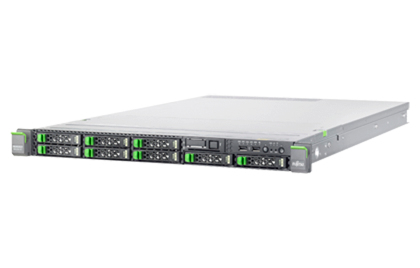

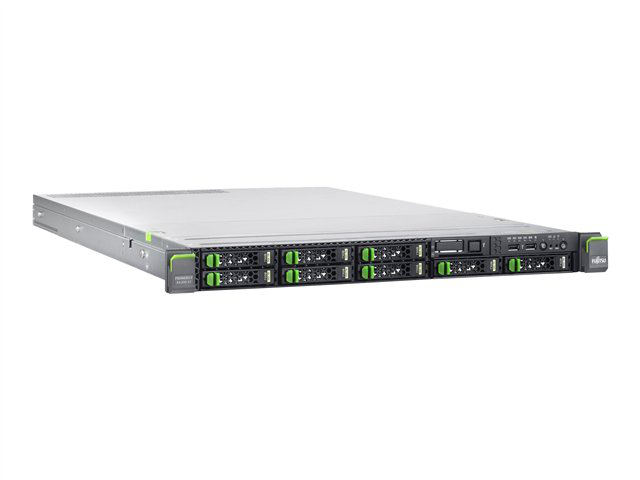

Fujitsu PRIMERGY RX200S7 server Rack (1U) Intel® Xeon® E5 Family E5-2620
2 GHz 16 GB DDR3-SDRAM 450 W
Model RX200S7Part no. VFY:R2007SF010BEEAN 887045255264
114 specifications
- ProcessorIntel® Xeon® E5 Family
- Memory16 GB
- OSNo
- Weight18 kg
- Processor manufacturerIntel
- HDD size2.5"
Overview
- Processor
- Intel® Xeon® E5 Family
- Memory
- 16 GB
- OS
- No
- Weight
- 18 kg
- Processor manufacturer
- Intel
- HDD size
- 2.5"
- Brand
- Fujitsu
- Category
- Server
- Model
- RX200S7
- Part numbers
- VFY:R2007SF010BE, LKN:R2007S0007FR, LKN:R2007S0008FR, LKN:R2007S0015FR, LKN:R2007S0023FR, LKN:R2007S0031FR +13 more
- EAN / UPC
- 887045255264, 4051554520731, 4051554433796, 4051554435318
- Also known as
- Fujitsu PRIMERGY RX200S7 server Rack (1U) Intel® Xeon® E5 Family E5-2620 2 GHz 16 GB DDR3-SDRAM 450 W
Specifications
114 specifications in 14 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Xeon® E5 Family |
| Processor upgrade | 2 |
| Processor model | E5-2620 |
| Processor frequency | 2 GHz |
| Processor boost frequency | 2.5 GHz |
| Processor cores | 6 |
| Processor cache | 15 MB |
| Motherboard chipset | Intel C600 |
| Memory channels supported by processor | Quad |
| Number of processors installed | 1 |
| Thermal Design Power (TDP) | 95 W |
| Processor cache type | Smart Cache |
| System bus rate | 7.2 GT/s |
| Bus type | QPI |
| CPU multiplier (bus/core ratio) | 25 |
| ECC supported by processor | Yes |
| Embedded options available | Yes |
| Execute Disable Bit | Yes |
| FSB Parity | No |
| Graphics & IMC lithography | 32 nm |
| Idle States | Yes |
| Maximum internal memory supported by processor | 750 GB |
| Maximum number of PCI Express lanes | 40 |
| Memory bandwidth supported by processor (max) | 42.6 GB/s |
| Memory clock speeds supported by processor | 800,1066,1333 MHz |
| Memory types supported by processor | DDR3-SDRAM |
| Number of QPI links | 2 |
| PCI Express configurations | x4, x8, x16 |
| Physical Address Extension (PAE) | 46 bit |
| Processor codename | Sandy Bridge EP |
| Processor lithography | 32 nm |
| Processor operating modes | 64-bit |
| Processor package size | 52.5 x 45.0 mm |
| Processor series | Intel Xeon E5-2600 |
| Processor socket | LGA 2011 (Socket R) |
| Processor threads | 12 |
| Scalability | 2S |
| Stepping | C2 |
| Supported instruction sets | AVX |
| Tcase | 77.4 °C |
| Thermal Monitoring Technologies | Yes |
| Conflict-Free processor | No |
Memory
| Specification | Value |
|---|---|
| Internal memory | 16 GB |
| Internal memory type | DDR3-SDRAM |
| ECC | Yes |
| Memory clock speed | 1333 MHz |
| Memory layout (slots x size) | 4 x 4 GB |
| Memory slots | 24 |
| Maximum internal memory | 768 GB |
Storage
| Specification | Value |
|---|---|
| HDD interface | Serial ATA, Serial Attached SCSI (SAS) |
| HDD size | 2.5" |
| Number of HDDs supported | 4 |
| RAID support | Yes |
| RAID levels | 0, 1, 10 |
| Hot-swap | Yes |
| Optical drive type | DVD-RW |
Network
| Specification | Value |
|---|---|
| Cabling technology | 10/100/1000Base-T(X) |
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 2 |
| USB 2.0 ports quantity | 6 |
| PS/2 ports quantity | 0 |
| Serial ports quantity | 1 |
| VGA (D-Sub) ports quantity | 2 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x8 slots | 3 |
| PCI Express x16 slots | 1 |
| PCI Express slots version | 3.0 |
Design
| Specification | Value |
|---|---|
| Chassis type | Rack (1U) |
Software
| Specification | Value |
|---|---|
| Operating system installed | No |
| Compatible operating systems | Microsoft Hyper-V Server 2008 R2, Microsoft Windows Server 2008 R2 Datacenter, Microsoft Windows Server 2008 R2 Enterprise, Microsoft Windows Server 2008 R2 Standard, Microsoft Windows Web Server 2008 R2, Microsoft Windows HPC Server 2008 R2 Suite, Microsoft Windows Small Business Server 2011 Premiu |
Processor special features
| Specification | Value |
|---|---|
| CPU configuration (max) | 2 |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel 64 | Yes |
| Intel Clear Video Technology | No |
| Intel Demand Based Switching | Yes |
| Intel Dual Display Capable Technology | No |
| Intel Enhanced Halt State | Yes |
| Intel FDI Technology | No |
| Intel Fast Memory Access | No |
| Intel Flex Memory Access | No |
| Intel Identity Protection Technology version | 0.00 |
| Intel Rapid Storage Technology | No |
| Intel Secure Key Technology version | 1.00 |
| Intel TSX-NI version | 0.00 |
| Intel Trusted Execution Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Anti-Theft Technology (Intel® AT) | No |
| Intel® Clear Video HD Technology (Intel® CVT HD) | No |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | No |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Identity Protection Technology (Intel® IPT) | No |
| Intel® InTru™ 3D Technology | No |
| Intel® Insider™ | No |
| Intel® My WiFi Technology (Intel® MWT) | No |
| Intel® Quick Sync Video Technology | No |
| Intel® Secure Key | Yes |
| Intel® Turbo Boost Technology | 1.0 |
| Intel® Wireless Display (Intel® WiDi) | No |
| Processor ARK ID | 64594 |
Power
| Specification | Value |
|---|---|
| Number of power supply units | 1 |
| Power supply | 450 W |
| Power supply input frequency | 47 - 63 Hz |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 10 - 35 °C |
| Operating relative humidity (H-H) | 10 - 85% |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | ENERGY STAR |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 762 mm |
| Depth | 431 mm |
| Height | 43 mm |
| Weight | 18 kg |
Other features
| Specification | Value |
|---|---|
| Ventilation fan(s) | 6 |
