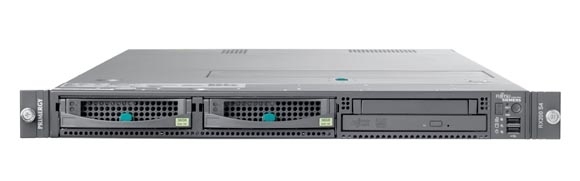

Fujitsu RX200 S4

Model RX200 S4Part no. VFY:R2004SF070DE?2.CPU-50%

99 specifications

Overview

Brand: Fujitsu
Category: Server
Model: RX200 S4
Part numbers: VFY:R2004SF070DE?2.CPU-50%, VFY:R2004SF090PL, VFY:R2004SH080DE?2.CPU-50%, VFY:R2004SH080DE?GARANTIE, VFY:R2004SF070DE, VFY:R2004SP060PL
Also known as: Fujitsu PRIMERGY RX200 S4 server Rack (1U) Intel® Xeon® 5000 Sequence E5405 2 GHz 2 GB DDR2-SDRAM 650 W

99 specifications in 14 groups

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Xeon® 5000 Sequence
Processor model	E5405
Processor frequency	2 GHz
Processor cores	4
Processor cache	12 MB
Motherboard chipset	Intel® 5000P
Number of processors installed	1
Thermal Design Power (TDP)	80 W
Processor cache type	L2
Bus type	FSB
CPU multiplier (bus/core ratio)	6
ECC supported by processor	No
Embedded options available	No
Execute Disable Bit	Yes
FSB Parity	Yes
Idle States	No
Number of Processing Die Transistors	820 M
Processing Die size	214 mm²
Processor code	SLBBP
Processor codename	Harpertown
Processor front side bus	1333 MHz
Processor lithography	45 nm
Processor operating modes	64-bit
Processor package size	37.5 x 37.5 mm
Processor series	Intel Xeon 5400 Series
Processor socket	LGA 771 (Socket J)
Processor threads	4
Stepping	E0
Tcase	67 °C
Thermal Monitoring Technologies	Yes
Conflict-Free processor	No

Specification	Value
Chassis type	Rack (1U)

Specification	Value
Noise level	58 dB

Specification	Value
Compatible operating systems	Windows Server 2003 Windows Server 2008 Novell SUSE Linux Enterprise Server Red Hat Enterprise Linux

Specification	Value
Enhanced Intel SpeedStep Technology	No
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	No
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	No
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Quick Sync Video Technology	No
Intel® Turbo Boost Technology	No
Intel® Wireless Display (Intel® WiDi)	No
Processor ARK ID	33079

Specification	Value
Power supply type	AC
Power requirements	100 - 127/ 200 - 240 V
Power supply	650 W
Power supply input frequency	50 - 60 Hz
Power consumption (typical)	530 W

Specification	Value
Operating temperature (T-T)	10 - 35 °C

Specification	Value
Compliance industry standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
Safety	IEC, EN, UL, CAN/CSA, EN, FCC, CB, CSAus/CSAc

Specification	Value
Data transfer rate	1 Gbit/s
Supported data transfer rates	10/100/1000 Mbit/s
Motherboard manufacturer	D 2671
