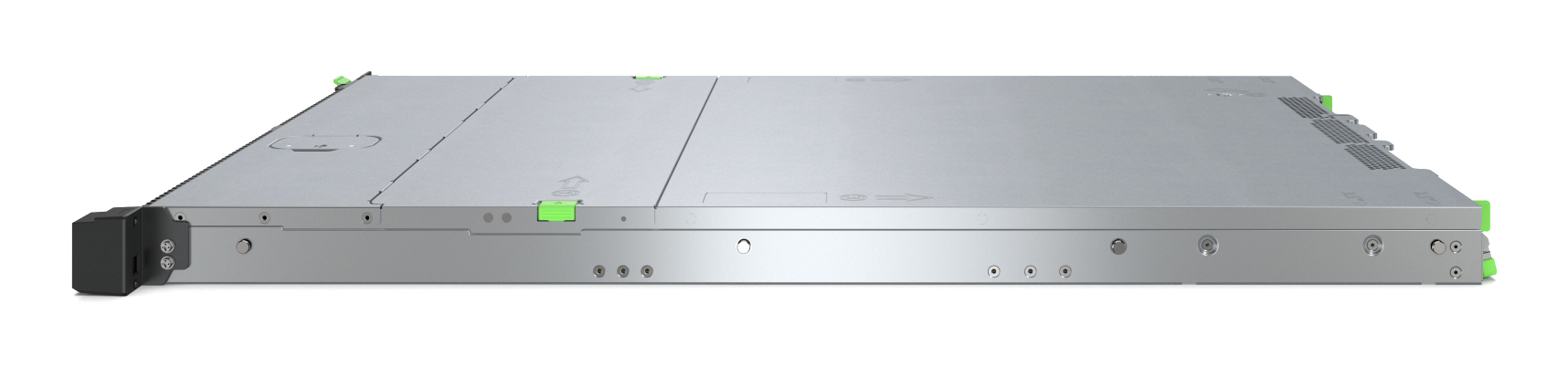

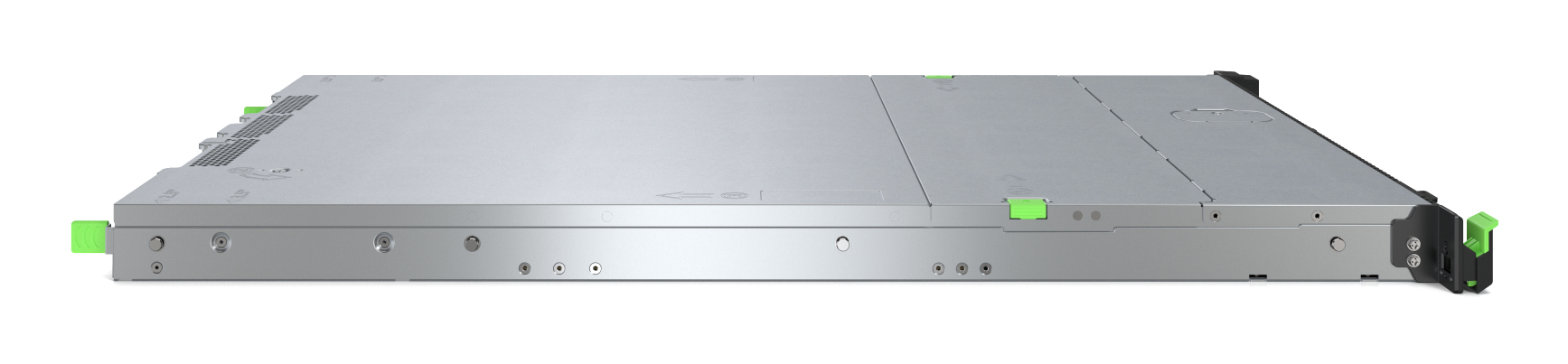

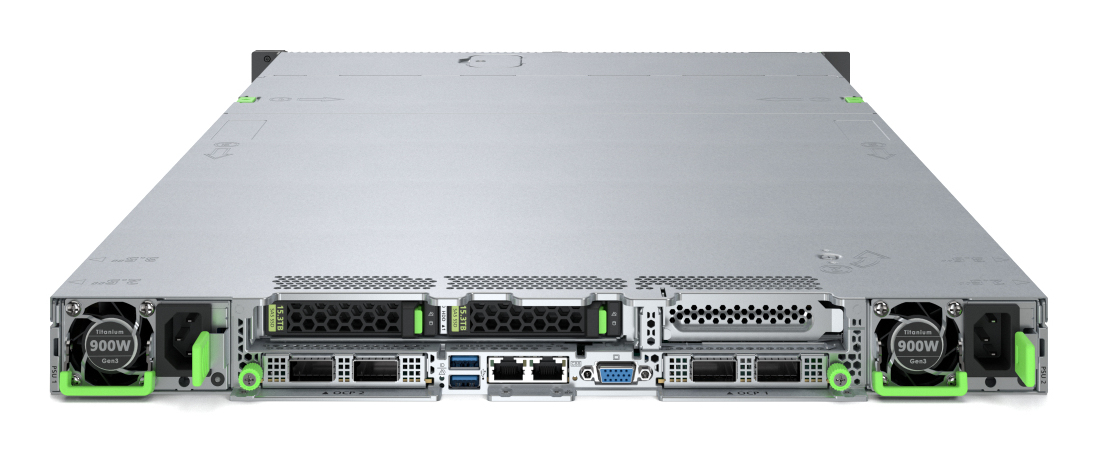

RX1440 M2
Model RX1440 M2Part no. VFY:R1442SC331INEAN 4066733088636
43 specifications
- ProcessorAMD EPYC
- Memory32 GB
- Storage0 GB
- OSNo
- Weight18.9 kg
- ColourBlack
Overview
- Processor
- AMD EPYC
- Memory
- 32 GB
- Storage
- 0 GB
- OS
- No
- Weight
- 18.9 kg
- Colour
- Black
- Brand
- Fujitsu
- Category
- Server
- Model
- RX1440 M2
- Part numbers
- VFY:R1442SC331IN, VFY:R1442SC311IN
- EAN / UPC
- 4066733088636, 4066733088629
- Also known as
- Fujitsu PRIMERGY RX1440 M2 server 0 GB Rack (1U) AMD EPYC 9354P 3.25 GHz 32 GB DDR5-SDRAM 900 W
Specifications
43 specifications in 11 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | AMD |
| Processor family | AMD EPYC |
| Processor model | 9354P |
| Processor frequency | 3.25 GHz |
| Processor boost frequency | 3.75 GHz |
| Performance-core Max Turbo Frequency | 3.8 GHz |
| Processor cores | 32 |
| Processor cache | 256 MB |
| Number of processors installed | 1 |
Memory
| Specification | Value |
|---|---|
| Internal memory | 32 GB |
| Internal memory type | DDR5-SDRAM |
| Memory clock speed | 4800 MHz |
| Memory slots | 24x DIMM |
Storage
| Specification | Value |
|---|---|
| Maximum storage capacity | 0 TB |
| Total storage capacity | 0 GB |
| Number of HDDs supported | 8 |
| Supported HDD sizes | 2.5" |
| Supported SSD sizes | 2.5" |
| RAID support | Yes |
| Optical drive type | No |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| Serial ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
Design
| Specification | Value |
|---|---|
| Chassis type | Rack (1U) |
| Product colour | Black |
| Rack mounting | Yes |
Performance
| Specification | Value |
|---|---|
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
Software
| Specification | Value |
|---|---|
| Operating system installed | No |
Power
| Specification | Value |
|---|---|
| Redundant power supply (RPS) support | Yes |
| Power supply | 900 W |
| Number of main power supplies | 2 |
| Power supply input voltage | 100 - 240 V |
| Power supply input frequency | 50/60 Hz |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 10 - 35 °C |
| Operating relative humidity (H-H) | 8 - 85% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 483 mm |
| Depth | 842 mm |
| Height | 43 mm |
| Weight | 18.9 kg |
