RX1330 M6
Model RX1330 M6Part no. VFY:R1336SC233INEAN 4066733142222
38 specifications
- ProcessorIntel Xeon E
- Memory32 GB
- OSNo
- ColourBlack
- Processor manufacturerIntel
- Supported SSD sizes2.5", 3.5"
Overview
- Processor
- Intel Xeon E
- Memory
- 32 GB
- OS
- No
- Colour
- Black
- Processor manufacturer
- Intel
- Supported SSD sizes
- 2.5", 3.5"
- Brand
- Fujitsu
- Category
- Server
- Model
- RX1330 M6
- Part numbers
- VFY:R1336SC233IN, VFY:R1336SC237IN, VFY:R1336SC269IN, VFY:R1336SC082IN, VFY:R1336SC065IN, VFY:R1336SC042IN +7 more
- EAN / UPC
- 4066733142222, 4066733131677, 4066733149313, 4066733351815 +7 more
- Also known as

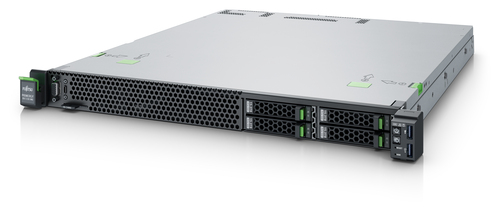

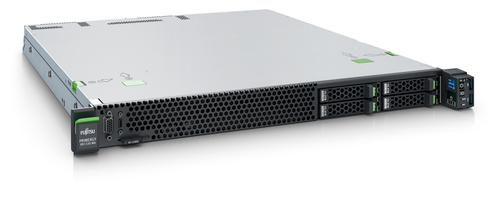

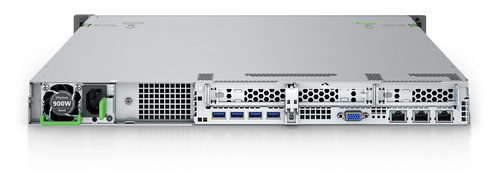

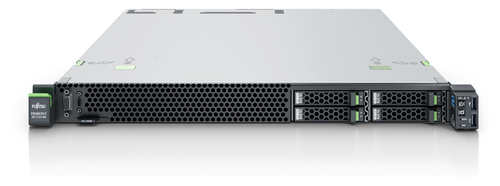

- Fujitsu PRIMERGY RX1330 M6 server Rack (1U) Intel Xeon E E-2488 3.2 GHz 32 GB DDR5-SDRAM 500 W
Specifications
38 specifications in 11 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel Xeon E |
| Processor model | E-2488 |
| Processor frequency | 3.2 GHz |
| Processor boost frequency | 5.6 GHz |
| Performance cores | 8 |
| Processor cores | 8 |
| Processor cache | 24 MB |
| Motherboard chipset | Intel C266 |
Memory
| Specification | Value |
|---|---|
| Internal memory | 32 GB |
| Internal memory type | DDR5-SDRAM |
| Memory clock speed | 4800 MHz |
| Memory layout (slots x size) | 1 x 32 GB |
Storage
| Specification | Value |
|---|---|
| HDD interface | SATA III, Serial Attached SCSI (SAS) |
| Supported SSD sizes | 2.5", 3.5" |
| RAID support | Yes |
| RAID levels | 0, 1, 10 |
| Optical drive type | No |
Network
| Specification | Value |
|---|---|
| Cabling technology | 10/100/1000Base-T(X) |
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| LAN controller | Intel I210 |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 6 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
Design
| Specification | Value |
|---|---|
| Chassis type | Rack (1U) |
| Product colour | Black |
Performance
| Specification | Value |
|---|---|
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
Software
| Specification | Value |
|---|---|
| Operating system installed | No |
Power
| Specification | Value |
|---|---|
| Power supply | 500 W |
| Power supply input frequency | 50/60 Hz |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 45 °C |
| Operating relative humidity (H-H) | 8 - 85% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 483 mm |
| Depth | 556 mm |
| Height | 43 mm |
