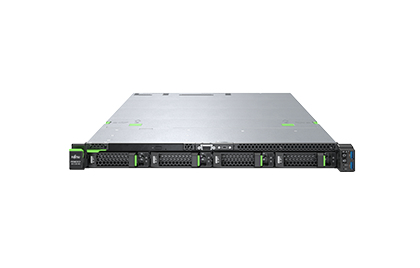

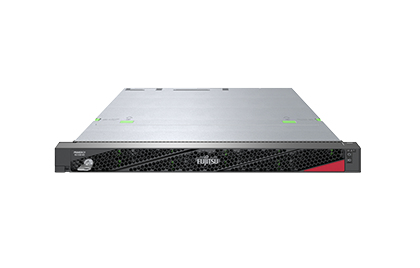

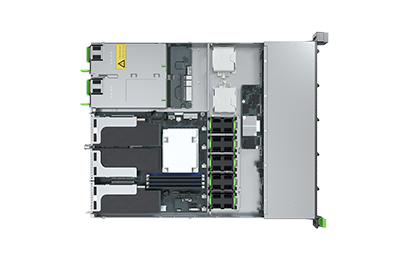

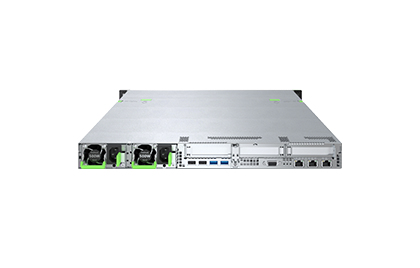

RX1330 M5
Model RX1330 M5Part no. VFY:R1335SC091INEAN 4065221880288
69 specifications
- ProcessorIntel Xeon E
- Memory16 GB
- Storage0 GB
- Noise22 dB
- Weight13 kg
- ColourBlack, Stainless steel
Overview
- Processor
- Intel Xeon E
- Memory
- 16 GB
- Storage
- 0 GB
- Noise
- 22 dB
- Weight
- 13 kg
- Colour
- Black, Stainless steel
- Brand
- Fujitsu
- Category
- Server
- Model
- RX1330 M5
- Part numbers
- VFY:R1335SC091IN, VFY:R1335SC061IN, VFY:R1335SC066IN, VFY:R1335SC010PL, VFY:R1335SX340IN, VFY:R1335SC020IN +10 more
- EAN / UPC
- 4065221880288, 4065221880493, 4065221880134, 4065221880677 +8 more
- Also known as
- Fujitsu PRIMERGY RX1330 M5 server 0 GB Rack Intel Xeon E E-2336 2.9 GHz 16 GB DDR4-SDRAM 500 W
Specifications
69 specifications in 16 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel Xeon E |
| Processor model | E-2336 |
| Processor frequency | 2.9 GHz |
| Processor boost frequency | 4.6 GHz |
| Processor cores | 6 |
| Processor cache | 12 MB |
| Motherboard chipset | Intel C256 |
| Number of processors installed | 1 |
| Embedded options available | No |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Maximum number of SMP processors | 1 |
Memory
| Specification | Value |
|---|---|
| Internal memory | 16 GB |
| Internal memory type | DDR4-SDRAM |
| ECC | Yes |
| Memory clock speed | 3200 MHz |
| Memory layout (slots x size) | 1 x 16 GB |
| Memory slots | 4x DIMM |
| Maximum internal memory | 128 GB |
Storage
| Specification | Value |
|---|---|
| Maximum storage capacity | 0 TB |
| Total storage capacity | 0 GB |
| Number of HDDs supported | 4 |
| Supported HDD sizes | 2.5" |
| RAID support | Yes |
Network
| Specification | Value |
|---|---|
| Cabling technology | 10/100/1000Base-T(X) |
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| LAN controller | Intel I210 |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 3 |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x4 (Gen 3.x) slots | 1 |
| PCI Express x8 (Gen 4.x) slots | 2 |
| PCI slots | 1 |
Design
| Specification | Value |
|---|---|
| Chassis type | Rack |
| Product colour | Black, Stainless steel |
| Bezel | Yes |
| Rack mounting | Yes |
Performance
| Specification | Value |
|---|---|
| Remote administration | iRMC S6 |
| Noise level | 22 dB |
| BIOS type | UEFI |
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
Software
| Specification | Value |
|---|---|
| Compatible operating systems | Windows Server 2022 Datacenter, Windows Server 2022 Standard, Windows Server 2022 Essentials, Windows Server 2019 Datacenter, Windows Server 2019 Standard, Windows Server 2019 Essentials, VMware vSphere 7.0, Red Hat Enterprise Linux 8 |
Processor special features
| Specification | Value |
|---|---|
| CPU configuration (max) | 1 |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel 64 | Yes |
| Intel Software Guard Extensions (Intel SGX) | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
Power
| Specification | Value |
|---|---|
| Redundant power supply (RPS) support | Yes |
| Power supply | 500 W |
| Number of main power supplies | 1 |
| Power supply input voltage | 100 - 240 V |
| Power supply input frequency | 50 / 60 Hz |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 45 °C |
| Operating relative humidity (H-H) | 10 - 85% |
Certificates
| Specification | Value |
|---|---|
| Certification | CB, GS, CE, NRTLc/us, FCC, ICES-003, NMB-003, VCCI, JIS 61000-3-2, EAC, KC, CCC, RCM, BSMI |
Sustainability
| Specification | Value |
|---|---|
| Sustainability compliance | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 482.6 mm |
| Depth | 612 mm |
| Height | 43 mm |
| Weight | 13 kg |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS, WEEE |
