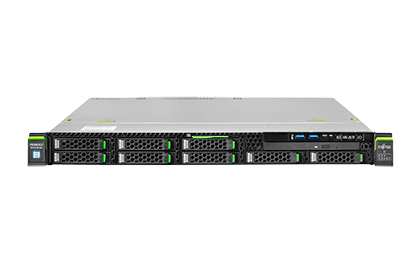

RX1330 M4 SFF
Model RX1330 M4 SFFPart no. VFY:R1334SC022INEAN 4063872904698
58 specifications
- ProcessorIntel Xeon E
- Memory16 GB
- Storage0 GB
- OSNo
- Weight13 kg
- ColourBlack, Steel
Overview
- Processor
- Intel Xeon E
- Memory
- 16 GB
- Storage
- 0 GB
- OS
- No
- Weight
- 13 kg
- Colour
- Black, Steel
- Brand
- Fujitsu
- Category
- Server
- Model
- RX1330 M4 SFF
- Part number
- VFY:R1334SC022IN
- EAN / UPC
- 4063872904698
- Also known as
- Fujitsu RX1330 M4 SFF server 0 GB Rack (1U) Intel Xeon E E-2224 3.4 GHz 16 GB DDR4-SDRAM 450 W
Specifications
58 specifications in 13 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel Xeon E |
| Processor model | E-2224 |
| Processor frequency | 3.4 GHz |
| Processor boost frequency | 4.2 GHz |
| Processor cores | 4 |
| Motherboard chipset | Intel C246 |
| Embedded options available | No |
| Execute Disable Bit | Yes |
| Idle States | Yes |
Memory
| Specification | Value |
|---|---|
| Internal memory | 16 GB |
| Internal memory type | DDR4-SDRAM |
| ECC | Yes |
| Memory clock speed | 2666 MHz |
| Memory layout (slots x size) | 1 x 16 GB |
| Maximum internal memory | 128 GB |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 0 GB |
| Number of HDDs installed | 0 |
| HDD interface | SATA, Serial Attached SCSI (SAS) |
| HDD size | 2.5" |
| RAID support | Yes |
| RAID levels | 0, 1, 10 |
| Optical drive type | No |
Network
| Specification | Value |
|---|---|
| Cabling technology | 10/100/1000Base-T(X) |
| Ethernet LAN | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 2 |
| USB 2.0 ports quantity | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| RS-232 ports | 1 |
| VGA (D-Sub) ports quantity | 2 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x4 (Gen 3.x) slots | 1 |
| PCI Express x8 (Gen 3.x) slots | 2 |
Design
| Specification | Value |
|---|---|
| Chassis type | Rack (1U) |
| Product colour | Black, Steel |
| Rack mounting | Yes |
Software
| Specification | Value |
|---|---|
| Operating system installed | No |
| Compatible operating systems | Windows/Linux |
Processor special features
| Specification | Value |
|---|---|
| CPU configuration (max) | 1 |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel 64 | Yes |
| Intel Clear Video Technology | No |
| Intel Software Guard Extensions (Intel SGX) | Yes |
| Intel TSX-NI | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
Power
| Specification | Value |
|---|---|
| Power supply | 450 W |
| Power supply input voltage | 100 - 240 V |
| Power supply input frequency | 50/60 Hz |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 45 °C |
| Operating relative humidity (H-H) | 10 - 85% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 482.6 mm |
| Depth | 572 mm |
| Height | 42.8 mm |
| Weight | 13 kg |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | CE, RoHS, WEEE |
