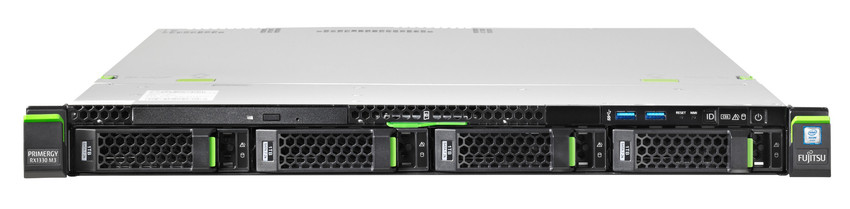

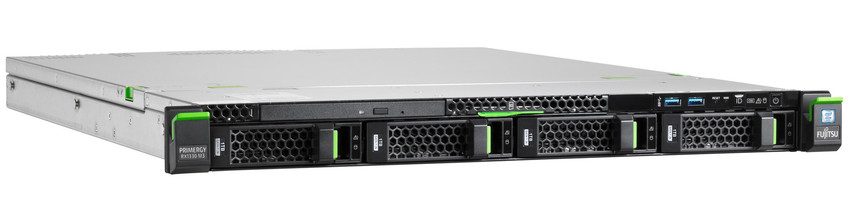

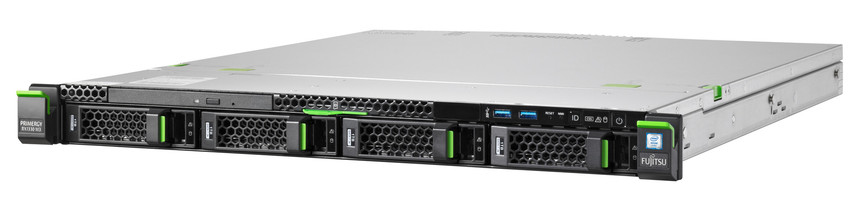

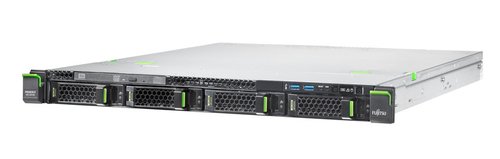

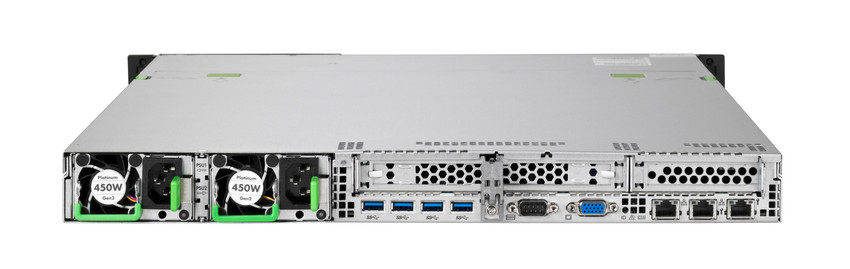

Fujitsu RX1330 M3
Model RX1330 M3Part no. VFY:R1333SX140ITEAN 4058154214817
41 specifications
- ProcessorIntel® Xeon® E3 v6
- Memory8 GB
- Storage2 TB
- OSNo
- Cabling technology10/100/1000Base-T(X)
- Ethernet LAN (RJ-45) ports2
Overview
- Processor
- Intel® Xeon® E3 v6
- Memory
- 8 GB
- Storage
- 2 TB
- OS
- No
- Cabling technology
- 10/100/1000Base-T(X)
- Ethernet LAN (RJ-45) ports
- 2
- Brand
- Fujitsu
- Category
- Server
- Model
- RX1330 M3
- Part numbers
- VFY:R1333SX140IT, VFY:R1333SX150IT, LKN:R1333S0006PL, BUNDLEFUJI041, BUNDLEFUJI040, BUNDLEFUJI039 +27 more
- EAN / UPC
- 4058154214817, 4059595359013, 4057185857451, 4057185878982 +20 more
- Also known as
- Fujitsu PRIMERGY RX1330 M3 server 2 TB Rack (1U) Intel® Xeon® E3 v6 E3-1220V6 3 GHz 8 GB DDR4-SDRAM 450 W
Specifications
41 specifications in 12 groups
Processor
| Specification | Value |
|---|---|
| Processor family | Intel® Xeon® E3 v6 |
| Processor model | E3-1220V6 |
| Processor frequency | 3 GHz |
| Processor cores | 4 |
| Processor cache | 8 MB |
| Number of processors installed | 1 |
Memory
| Specification | Value |
|---|---|
| Internal memory | 8 GB |
| Internal memory type | DDR4-SDRAM |
| ECC | Yes |
| Memory clock speed | 2400 MHz |
| Memory slots | 4 |
| Maximum internal memory | 64 GB |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 2 TB |
| Number of HDDs installed | 1 |
| HDD capacity | 1 TB |
| HDD interface | Serial ATA III |
| HDD size | 3.5" |
| RAID support | No |
| Hot-Plug support | Yes |
| Optical drive type | DVD Super Multi |
Network
| Specification | Value |
|---|---|
| Cabling technology | 10/100/1000Base-T(X) |
| Ethernet LAN | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 2 |
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 6 |
| Serial ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x4 (Gen 3.x) slots | 1 |
| PCI Express x8 (Gen 3.x) slots | 2 |
Design
| Specification | Value |
|---|---|
| Chassis type | Rack (1U) |
| Redundant fans support | Yes |
Software
| Specification | Value |
|---|---|
| Operating system installed | No |
| Compatible operating systems | - Microsoft Hyper-V Server 2012 R2 - Microsoft Hyper-V Server 2016 - Microsoft Windows Server 2012 R2 Datacenter - Microsoft Windows Server 2016 Datacenter - Microsoft Windows Server 2012 R2 Standard - Microsoft Windows Server 2016 Standard - Microsoft Windows Server 2012 R2 Essentials - Microsoft W |
Power
| Specification | Value |
|---|---|
| Redundant power supply (RPS) support | Yes |
| Power supply | 450 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 40 °C |
| Storage temperature (T-T) | 10 - 85 °C |
Certificates
| Specification | Value |
|---|---|
| Certification | CE, RoHS, WEEE, GS, CE, CSAc/us, ULc/us, FCC Class A, VCCI:V3 Class A + JIS 61000-3-2, GOST, KC, CCC, C-TIck, BSMI |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 482.6 mm |
| Depth | 572 mm |
| Height | 42.8 mm |
