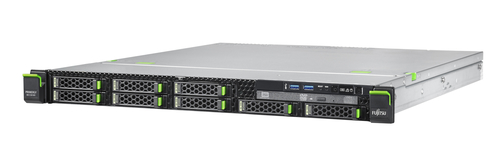

Fujitsu PRIMERGY RX1330 server

1 TB Rack (1U) Intel® Xeon® E3 V2 Family E3-1220V2 3.1 GHz 8 GB DDR3-SDRAM 450 W

Model RX1330Part no. VFY:R1331SX120PTEAN 4053026785501

98 specifications

Overview

Brand: Fujitsu
Category: Server
Model: RX1330
Part number: VFY:R1331SX120PT
EAN / UPC: 4053026785501
Also known as: Fujitsu PRIMERGY RX1330 server 1 TB Rack (1U) Intel® Xeon® E3 V2 Family E3-1220V2 3.1 GHz 8 GB DDR3-SDRAM 450 W

98 specifications in 14 groups

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Xeon® E3 V2 Family
Processor model	E3-1220V2
Processor frequency	3.1 GHz
Processor boost frequency	3.5 GHz
Processor cores	4
Processor cache	8 MB
Motherboard chipset	Intel® C226
Memory channels supported by processor	Dual
Number of processors installed	1
Thermal Design Power (TDP)	69 W
Processor cache type	Smart Cache
System bus rate	5 GT/s
Bus type	DMI
CPU multiplier (bus/core ratio)	31
Compatible processor series	Intel® Xeon®
ECC supported by processor	Yes
Embedded options available	No
Execute Disable Bit	Yes
Idle States	Yes
Maximum internal memory supported by processor	32 GB
Memory bandwidth supported by processor (max)	25.6 GB/s
Memory clock speeds supported by processor	1333,1600 MHz
Memory types supported by processor	DDR3-SDRAM
PCI Express configurations	1x16+1x4, 1x8+3x4, 2x8+1x4
Processor code	SR0PH
Processor codename	Ivy Bridge
Processor lithography	22 nm
Processor operating modes	64-bit
Processor package size	37.5 x 37.5 mm
Processor series	Intel Xeon E3-1200 v2
Processor socket	LGA 1155 (Socket H2)
Processor threads	4
Stepping	E1
Supported instruction sets	AVX, SSE4.1, SSE4.2
Thermal Monitoring Technologies	Yes
Conflict-Free processor	No

Specification	Value
On-board graphics card model	Not available

Specification	Value
Cabling technology	10/100/1000Base-T(X)
Ethernet LAN	Yes
Ethernet interface type	Fast Ethernet, Gigabit Ethernet
LAN controller	Intel i210

Specification	Value
Ethernet LAN (RJ-45) ports	3
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
RS-232 ports	2
VGA (D-Sub) ports quantity	1

Specification	Value
PCI Express slots version	3.0

Specification	Value
Operating system installed	No
Compatible operating systems	- Microsoft Hyper-V Server 2012 R2 - Microsoft Windows Server 2012 R2 Datacenter - Microsoft Windows Server 2012 R2 Standard - Microsoft Windows Server 2012 R2 Essentials - Microsoft Windows Server 2012 R2 Foundation - Microsoft Windows Storage Server 2012 R2 Standard - Microsoft Hyper-V Server 2012

Specification	Value
CPU configuration (max)	1
Enhanced Intel SpeedStep Technology	Yes
Intel 64	Yes
Intel Demand Based Switching	Yes
Intel Enhanced Halt State	Yes
Intel Fast Memory Access	Yes
Intel Flex Memory Access	Yes
Intel Identity Protection Technology version	1.00
Intel TSX-NI	No
Intel TSX-NI version	0.00
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® Smart Cache	Yes
Intel® Turbo Boost Technology	2.0
Processor ARK ID	65734

Specification	Value
Redundant power supply (RPS) support	Yes
Power supply	450 W
Number of redundant power supplies supported	2
Number of main power supplies	1

Specification	Value
Operating temperature (T-T)	5 - 40 °C
Operating relative humidity (H-H)	10 - 85%

Specification	Value
Certification	Green
