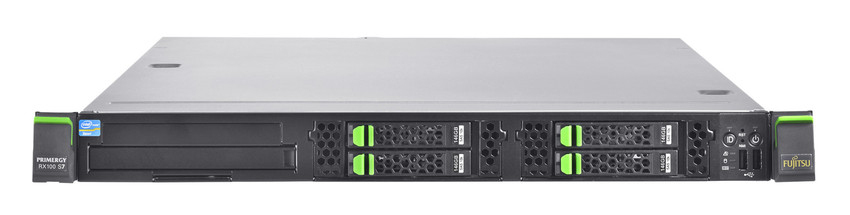

Fujitsu RX100 S7
Model RX100 S7Part no. VFY:R1007SC070IN + S26361-F2567-L301EAN 4053162383128
119 specifications
- ProcessorIntel® Xeon® E3 Family
- Memory4 GB
- Storage0 GB
- Noise53.5 dB
- OSNo
- Weight14 kg
Overview
- Processor
- Intel® Xeon® E3 Family
- Memory
- 4 GB
- Storage
- 0 GB
- Noise
- 53.5 dB
- OS
- No
- Weight
- 14 kg
- Brand
- Fujitsu
- Category
- Server
- Model
- RX100 S7
- Part numbers
- VFY:R1007SC070IN + S26361-F2567-L301, VFY:R1007SC070IN + S26361-F2567-L351, VFY:R1007SXG10IN, VFY:R1007SC050IN + S26361-F2567-D420, VFY:R1007SC050IN + S26361-F2567-D440, VFY:R1007SC060IN + S26361-F2567-D420 +34 more
- EAN / UPC
- 4053162383128, 4053162383135, 4051554475307, 4053026432955 +18 more
- Also known as
- Fujitsu PRIMERGY RX100 S7 server 0 GB Rack (1U) Intel® Xeon® E3 Family E3-1220 3.1 GHz 4 GB DDR3-SDRAM 300 W
Specifications
119 specifications in 15 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Xeon® E3 Family |
| Processor model | E3-1220 |
| Processor frequency | 3.1 GHz |
| Processor boost frequency | 3.4 GHz |
| Processor cores | 4 |
| Processor cache | 8 MB |
| Motherboard chipset | Intel® C202 |
| Memory channels supported by processor | Dual |
| Number of processors installed | 1 |
| Thermal Design Power (TDP) | 80 W |
| Processor cache type | Smart Cache |
| System bus rate | 5 GT/s |
| Bus type | DMI |
| CPU multiplier (bus/core ratio) | 31 |
| ECC supported by processor | Yes |
| Embedded options available | No |
| Execute Disable Bit | Yes |
| FSB Parity | No |
| Idle States | Yes |
| Maximum internal memory supported by processor | 32 GB |
| Maximum number of PCI Express lanes | 20 |
| Maximum number of SMP processors | 1 |
| Memory bandwidth supported by processor (max) | 21 GB/s |
| Memory clock speeds supported by processor | 1066,1333 MHz |
| Memory types supported by processor | DDR3-SDRAM |
| Processor codename | Sandy Bridge |
| Processor lithography | 32 nm |
| Processor operating modes | 64-bit |
| Processor package size | 37.5 x 37.5 mm |
| Processor series | Intel Xeon E3-1200 |
| Processor socket | LGA 1155 (Socket H2) |
| Processor threads | 4 |
| Supported instruction sets | AVX |
| Tcase | 69.1 °C |
| Thermal Monitoring Technologies | Yes |
| Conflict-Free processor | No |
Memory
| Specification | Value |
|---|---|
| Internal memory | 4 GB |
| Internal memory type | DDR3-SDRAM |
| ECC | Yes |
| Memory clock speed | 1333 MHz |
| Memory layout (slots x size) | 1 x 4 GB |
| Memory slots | 4x DIMM |
| Maximum internal memory | 32 GB |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 0 GB |
| Number of HDDs installed | 0 |
| HDD interface | Serial ATA, Serial Attached SCSI (SAS) |
| HDD size | 3.5" |
| Number of HDDs supported | 2 |
| RAID support | Yes |
| RAID levels | 0, 1 |
| Hot-swap | Yes |
| Internal drive bays | 2x 3.5" |
| Optical drive type | DVD Super Multi |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Networking features | Gigabit Ethernet |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 3 |
| USB 2.0 ports quantity | 7 |
| PS/2 ports quantity | 0 |
| Serial ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 slots | 1 |
| PCI Express x4 slots | 1 |
| PCI Express x16 slots | 1 |
| PCI Express slots version | 2.0 |
Design
| Specification | Value |
|---|---|
| Chassis type | Rack (1U) |
Performance
| Specification | Value |
|---|---|
| Noise level | 53.5 dB |
Software
| Specification | Value |
|---|---|
| Operating system installed | No |
| Compatible operating systems | Microsoft Windows Server 2008 R2, Windows Server 2008, Novell SUSE Linux Enterprise Server, Red Hat Enterprise Linux, VMware vSphere 4.1 |
Processor special features
| Specification | Value |
|---|---|
| CPU configuration (max) | 1 |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel 64 | Yes |
| Intel Clear Video Technology | No |
| Intel Demand Based Switching | Yes |
| Intel Dual Display Capable Technology | No |
| Intel Enhanced Halt State | Yes |
| Intel FDI Technology | No |
| Intel Fast Memory Access | Yes |
| Intel Flex Memory Access | Yes |
| Intel Identity Protection Technology version | 1.00 |
| Intel Rapid Storage Technology | No |
| Intel Trusted Execution Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Anti-Theft Technology (Intel® AT) | No |
| Intel® Clear Video HD Technology (Intel® CVT HD) | No |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | No |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Intel® InTru™ 3D Technology | No |
| Intel® Insider™ | No |
| Intel® My WiFi Technology (Intel® MWT) | No |
| Intel® Quick Sync Video Technology | No |
| Intel® Smart Cache | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® Wireless Display (Intel® WiDi) | No |
| Processor ARK ID | 52269 |
Power
| Specification | Value |
|---|---|
| Redundant power supply (RPS) support | Yes |
| Power supply type | AC/DC |
| Number of power supply units | 1 |
| Power requirements | AC 100 - 127V/200 - 240V |
| Power supply | 300 W |
| Power supply input frequency | 47 - 63 Hz |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 15 - 35 °C |
| Operating relative humidity (H-H) | 10 - 85% |
Certificates
| Specification | Value |
|---|---|
| Compliance industry standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab |
| Certification | GS, CE A, CSAc/us, ULc/us, FCC A, CB, RoHS, WEEE, VCCI, GOST, CCC, C-Tick, BSMI |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 431 mm |
| Depth | 557 mm |
| Height | 42.5 mm |
| Weight | 14 kg |
Other features
| Specification | Value |
|---|---|
| CD read speed | 24x |
| Mac compatibility | No |
| Ventilation fan(s) | 4 |
| DVD interface type | SATA |
| DVD read speed | 8x |
| Drive bays | 1 x 5.25", 1x 3.5" |
