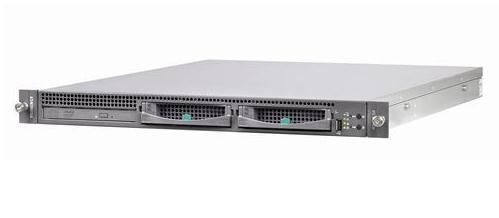

Fujitsu RX100 S4
Model RX100 S4Part no. VFY:RX100S4904ES
66 specifications
- ProcessorIntel® Pentium® D
- Memory1 GB
- Storage160 GB
- Weight15 kg
- Processor manufacturerIntel
- Maximum storage capacity0.6 TB
Overview
- Processor
- Intel® Pentium® D
- Memory
- 1 GB
- Storage
- 160 GB
- Weight
- 15 kg
- Processor manufacturer
- Intel
- Maximum storage capacity
- 0.6 TB
- Brand
- Fujitsu
- Category
- Server
- Model
- RX100 S4
- Part number
- VFY:RX100S4904ES
- Also known as
- Fujitsu PRIMERGY RX100 S4 server 160 GB Rack (1U) Intel® Pentium® D 925 3 GHz 1 GB DDR2-SDRAM
Specifications
66 specifications in 12 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Pentium® D |
| Processor model | 925 |
| Processor frequency | 3 GHz |
| Processor cores | 2 |
| Processor cache | 4 MB |
| Number of processors installed | 1 |
| Processor cache type | L2 |
| Bus type | FSB |
| CPU multiplier (bus/core ratio) | 15 |
| ECC supported by processor | No |
| Embedded options available | No |
| Execute Disable Bit | Yes |
| FSB Parity | No |
| Idle States | Yes |
| Maximum number of SMP processors | 1 |
| Physical Address Extension (PAE) | 32 bit |
| Physical Address Extension (PAE) | Yes |
| Processor front side bus | 800 MHz |
| Processor operating modes | 64-bit |
| Processor socket | LGA 775 (Socket T) |
| Thermal Monitoring Technologies | No |
Memory
| Specification | Value |
|---|---|
| Internal memory | 1 GB |
| Internal memory type | DDR2-SDRAM |
| ECC | Yes |
| Memory slots | 4x DIMM |
| Maximum internal memory | 8 GB |
Storage
| Specification | Value |
|---|---|
| Maximum storage capacity | 0.6 TB |
| Total storage capacity | 160 GB |
| Number of HDDs installed | 1 |
| HDD capacity | 160 GB |
| HDD interface | Serial Attached SCSI (SAS) |
| HDD size | 3.5" |
| Number of HDDs supported | 2 |
| RAID support | Yes |
| RAID levels | 1 |
| Hot-swap | Yes |
Network
| Specification | Value |
|---|---|
| Network ready | Yes |
| Cabling technology | 10/100/1000Base-T(X) |
| Ethernet LAN | Yes |
| Networking features | Gigabit Ethernet |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 2 |
| USB 2.0 ports quantity | 3 |
| PS/2 ports quantity | 2 |
| Serial ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
Design
| Specification | Value |
|---|---|
| Chassis type | Rack (1U) |
Software
| Specification | Value |
|---|---|
| Compatible operating systems | Windows Server 2003 R2/2000 Linux |
Processor special features
| Specification | Value |
|---|---|
| Intel 64 | Yes |
| Intel Demand Based Switching | No |
| Intel Enhanced Halt State | Yes |
| Intel Trusted Execution Technology | No |
| Intel Virtualization Technology (VT-x) | No |
| Intel Virtualization Technology for Directed I/O (VT-d) | No |
| Intel® AES New Instructions (Intel® AES-NI) | No |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Intel® Turbo Boost Technology | No |
Power
| Specification | Value |
|---|---|
| Power requirements | 100-240V, 50/60Hz |
| Power consumption (typical) | 270 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 10 - 35 °C |
| Operating relative humidity (H-H) | 20 - 80% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 596 mm |
| Depth | 429 mm |
| Height | 42 mm |
| Weight | 15 kg |
Other features
| Specification | Value |
|---|---|
| Number of products included | 1 pc(s) |
