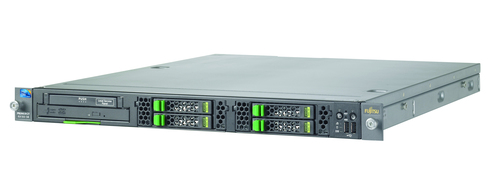

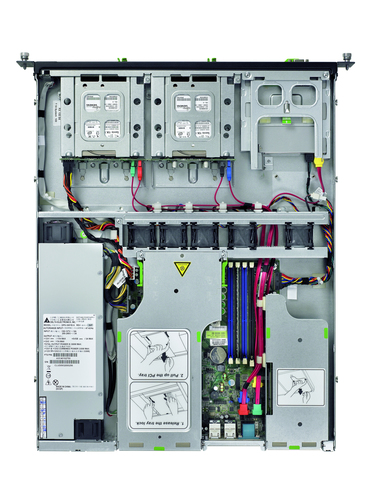

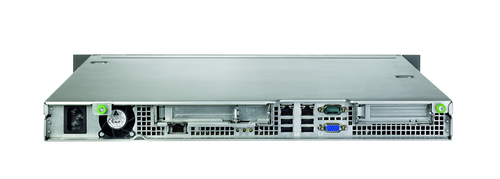

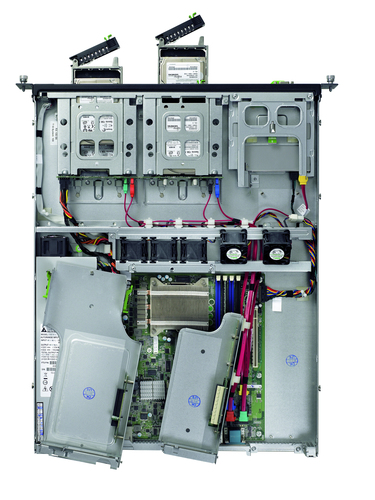

Fujitsu PRIMERGY RX100 server

500 GB Rack (1U) Intel® Core™ i3 i3-3220 3.3 GHz 4 GB DDR3-SDRAM 300 W

Model RX100Part no. VFY:R1007SX090ITEAN 4051554570774

112 specifications

Overview

Brand: Fujitsu
Category: Server
Model: RX100
Part number: VFY:R1007SX090IT
EAN / UPC: 4051554570774
Also known as: Fujitsu PRIMERGY RX100 server 500 GB Rack (1U) Intel® Core™ i3 i3-3220 3.3 GHz 4 GB DDR3-SDRAM 300 W

112 specifications in 13 groups

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i3
Processor generation	3rd gen Intel® Core™ i3
Processor model	i3-3220
Processor frequency	3.3 GHz
Processor cores	2
Processor cache	3 MB
Motherboard chipset	Intel® C202
Memory channels supported by processor	Dual
Number of processors installed	1
Thermal Design Power (TDP)	55 W
Processor cache type	Smart Cache
System bus rate	5 GT/s
Bus type	DMI
CPU multiplier (bus/core ratio)	33
ECC supported by processor	Yes
Embedded options available	Yes
Execute Disable Bit	Yes
FSB Parity	No
Idle States	Yes
Maximum internal memory supported by processor	32 GB
Memory bandwidth supported by processor (max)	25.6 GB/s
Memory clock speeds supported by processor	1333,1600 MHz
Memory types supported by processor	DDR3-SDRAM
PCI Express configurations	1x16, 2x8
Processor codename	Ivy Bridge
Processor lithography	22 nm
Processor operating modes	64-bit
Processor package size	37.5 x 37.5 mm
Processor series	Intel Core i3-3200 Desktop Series
Processor socket	LGA 1155 (Socket H2)
Processor threads	4
Supported instruction sets	AVX, SSE4.1, SSE4.2
Tcase	65.3 °C
Thermal Monitoring Technologies	Yes
Thermal solution specification	PCG 2011C
Conflict-Free processor	Yes

Specification	Value
On-board graphics card	Yes
On-board graphics card family	Intel® HD Graphics
On-board graphics card model	Intel® HD Graphics 2500
Number of displays supported (on-board graphics)	3
On-board graphics card ID	0x152
On-board graphics card base frequency	650 MHz
On-board graphics card dynamic frequency (max)	1050 MHz

Specification	Value
Chassis type	Rack (1U)

Specification	Value
Operating system installed	No
Compatible operating systems	Microsoft Windows Server 2008 R2, Microsoft Windows Server 2008, Novell SUSE Linux Enterprise Server, Red Hat Enterprise Linux

Specification	Value
CPU configuration (max)	1
Enhanced Intel SpeedStep Technology	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	Yes
Intel FDI Technology	Yes
Intel Fast Memory Access	Yes
Intel Flex Memory Access	Yes
Intel Identity Protection Technology version	1.00
Intel Rapid Storage Technology	No
Intel Secure Key Technology version	0.00
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Anti-Theft Technology (Intel® AT)	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® InTru™ 3D Technology	Yes
Intel® Insider™	Yes
Intel® My WiFi Technology (Intel® MWT)	Yes
Intel® Quick Sync Video Technology	Yes
Intel® Secure Key	No
Intel® Turbo Boost Technology	No
Intel® Wireless Display (Intel® WiDi)	Yes
Processor ARK ID	65693

Specification	Value
Redundant power supply (RPS) support	No
Number of power supply units	1
Power supply	300 W

Specification	Value
Graphics card	HD Graphics 2500
Graphics card family	Intel
