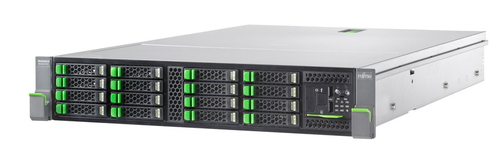

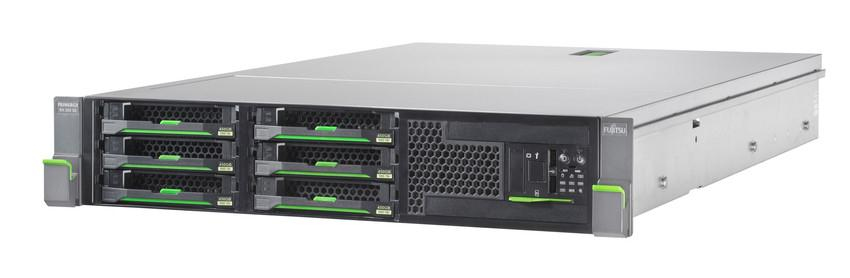

Fujitsu RX 300 S8

Model RX 300 S8Part no. VFY:R3008SX110ITEAN 4053026529907

111 specifications

Overview

Brand: Fujitsu
Category: Server
Model: RX 300 S8
Part number: VFY:R3008SX110IT
EAN / UPC: 4053026529907
Also known as: Fujitsu PRIMERGY RX 300 S8 server Rack (2U) Intel® Xeon® E5 V2 Family E5-2620V2 2.1 GHz 16 GB DDR3-SDRAM 800 W

111 specifications in 14 groups

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Xeon® E5 V2 Family
Processor model	E5-2620V2
Processor frequency	2.1 GHz
Processor boost frequency	2.6 GHz
Processor cores	6
Processor cache	15 MB
Memory channels supported by processor	Quad
Number of processors installed	1
Thermal Design Power (TDP)	80 W
Processor cache type	Smart Cache
System bus rate	7.2 GT/s
Bus type	QPI
Compatible processor series	Intel® Xeon®
ECC supported by processor	Yes
Embedded options available	No
Execute Disable Bit	Yes
FSB Parity	No
Idle States	Yes
Maximum internal memory supported by processor	768 GB
Maximum number of PCI Express lanes	40
Maximum number of SMP processors	2
Memory bandwidth supported by processor (max)	51.2 GB/s
Memory clock speeds supported by processor	800,1066,1333,1600 MHz
Memory types supported by processor	DDR3-SDRAM
Number of QPI links	2
PCI Express configurations	x4, x8, x16
Physical Address Extension (PAE)	46 bit
Processor codename	Ivy Bridge EP
Processor lithography	22 nm
Processor operating modes	64-bit
Processor package size	52.5 x 45 mm
Processor series	Intel Xeon E5-2600 v2
Processor socket	LGA 2011 (Socket R)
Processor threads	12
Scalability	2S
Supported instruction sets	AVX
Tcase	71 °C
Thermal Monitoring Technologies	Yes
Conflict-Free processor	No

Specification	Value
Supported HDD sizes	2.5"
RAID support	Yes
RAID levels	0, 1, 5, 6, 10, 50, 60
Hot-Plug support	Yes
Drive device, transfer rate	6000 MB/s
Internal drive bays	8
Optical drive type	DVD-RW
Supported storage drive interfaces	SAS, Serial ATA, Serial ATA II, Serial ATA III

Specification	Value
Ethernet LAN (RJ-45) ports	1
USB 2.0 ports quantity	6

Specification	Value
Chassis type	Rack (2U)
Rack mounting	Yes

Specification	Value
On-site support	Yes

Specification	Value
Operating system installed	No

Specification	Value
CPU configuration (max)	2
Enhanced Intel SpeedStep Technology	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	Yes
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	Yes
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Identity Protection Technology version	0.00
Intel Rapid Storage Technology	No
Intel Secure Key Technology version	1.00
Intel TSX-NI	No
Intel TSX-NI version	0.00
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Anti-Theft Technology (Intel® AT)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Identity Protection Technology (Intel® IPT)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® OS Guard	Yes
Intel® Quick Sync Video Technology	No
Intel® Secure Key	Yes
Intel® Turbo Boost Technology	2.0
Intel® Wireless Display (Intel® WiDi)	No
Processor ARK ID	75789

Specification	Value
Redundant power supply (RPS) support	No
Power supply	800 W
Number of main power supplies	1

Specification	Value
Cables included	AC

Specification	Value
Rack-Friendly board	Yes
