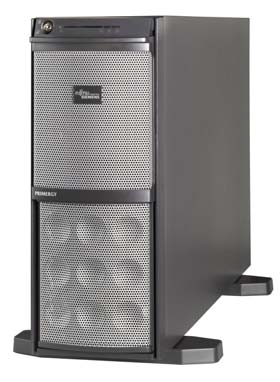

Fujitsu PRIMERGY TX300 S4

Model PRIMERGY TX300 S4Part no. CFY:TX300S4-001INEAN 4333643453503

83 specifications

Overview

Brand: Fujitsu
Category: Server
Model: PRIMERGY TX300 S4
Part numbers: CFY:TX300S4-001IN, CFY:TX300S4-011IN, LKN:ITL1159101-001, VFY:T3004SF060PL?FC, VFY:T3004SF060PL?HDD146, VFY:T3004SF060PL?TN +8 more
EAN / UPC: 4333643453503, 4333643448455, 4333643456849, 4333643448271 +2 more
Also known as: Fujitsu PRIMERGY TX300 S4 server 0 GB Rack (4U) Intel® Xeon® 5000 Sequence E5335 2 GHz 2 GB DDR2-SDRAM 798 W

83 specifications in 12 groups

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Xeon® 5000 Sequence
Processor model	E5335
Processor frequency	2 GHz
Processor cores	4
Processor cache	8 MB
Number of processors installed	1
Thermal Design Power (TDP)	80 W
Processor cache type	L2
Bus type	FSB
CPU multiplier (bus/core ratio)	6
ECC supported by processor	No
Embedded options available	Yes
Execute Disable Bit	Yes
FSB Parity	Yes
Idle States	Yes
Number of Processing Die Transistors	582 M
Processing Die size	286 mm²
Processor codename	Clovertown
Processor front side bus	1333 MHz
Processor lithography	65 nm
Processor operating modes	64-bit
Processor package size	37.5 x 37.5 mm
Processor series	Intel Xeon 5300 Series
Processor socket	LGA 771 (Socket J)
Processor threads	4
Tcase	66 °C
Thermal Monitoring Technologies	Yes
Conflict-Free processor	No

Specification	Value
Network ready	Yes
Networking features	10/100/1000 Mbit/s Ethernet

Specification	Value
Chassis type	Rack (4U)

Specification	Value
Enhanced Intel SpeedStep Technology	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	Yes
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	No
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Quick Sync Video Technology	No
Intel® Turbo Boost Technology	No
Intel® Wireless Display (Intel® WiDi)	No
Processor ARK ID	28443

Specification	Value
Power requirements	100 - 240 V
Power supply	798 W
Power supply input frequency	50 - 60 Hz
Power consumption (typical)	1400 W

Specification	Value
Operating temperature (T-T)	10 - 35 °C

Specification	Value
Electromagnetic compatibility	EN 55 022 class A, EN 55024, EN61000-3-2 / -3, ETSI EN300386, FCC class A
Safety	IEC 60950-1, EN 60950-1, UL 60950-1, CAN/CSA-C22.2 No. 60950-1

Specification	Value
Weight	25 kg

Specification	Value
Dimensions (WxDxH)	286 x 775 x 473 mm
Acoustic pressure emissions	39 dB
