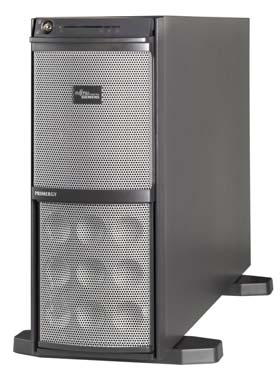

Fujitsu PRIMERGY TX300 S3 + Microsoft Windows Small Business Server 2003 R2 Premium Edition SP2
Model PRIMERGY TX300 S3 + Microsoft Windows Small Business Server 2003 R2 Premium Edition SP2Part no. K-FU-IR1974
92 specifications
- ProcessorIntel® Xeon® 5000 Sequence
- Memory2 GB
- Storage0 GB
- Weight25 kg
- Processor manufacturerIntel
- Network readyYes
Overview
- Processor
- Intel® Xeon® 5000 Sequence
- Memory
- 2 GB
- Storage
- 0 GB
- Weight
- 25 kg
- Processor manufacturer
- Intel
- Network ready
- Yes
- Brand
- Fujitsu
- Category
- Server
- Model
- PRIMERGY TX300 S3 + Microsoft Windows Small Business Server 2003 R2 Premium Edition SP2
- Part numbers
- K-FU-IR1974, K-FSFMR-0020
- Also known as
- Fujitsu PRIMERGY TX300 S3 + Microsoft Windows Small Business 2003 R2 Premium Edition SP2 server 0 GB Rack (4U) Intel® Xeon® 5000 Sequence E5335 2 GHz 2 GB DDR2-
Specifications
92 specifications in 14 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Xeon® 5000 Sequence |
| Processor model | E5335 |
| Processor frequency | 2 GHz |
| Processor cores | 4 |
| Processor cache | 8 MB |
| Motherboard chipset | Intel® 5000P |
| Number of processors installed | 1 |
| Thermal Design Power (TDP) | 80 W |
| Processor cache type | L2 |
| Bus type | FSB |
| CPU multiplier (bus/core ratio) | 6 |
| ECC supported by processor | No |
| Embedded options available | Yes |
| Execute Disable Bit | Yes |
| FSB Parity | Yes |
| Idle States | Yes |
| Maximum number of SMP processors | 2 |
| Number of Processing Die Transistors | 582 M |
| Processing Die size | 286 mm² |
| Processor codename | Clovertown |
| Processor front side bus | 1333 MHz |
| Processor lithography | 65 nm |
| Processor operating modes | 64-bit |
| Processor package size | 37.5 x 37.5 mm |
| Processor series | Intel Xeon 5300 Series |
| Processor socket | LGA 771 (Socket J) |
| Processor threads | 4 |
| Tcase | 66 °C |
| Thermal Monitoring Technologies | Yes |
| Conflict-Free processor | No |
Memory
| Specification | Value |
|---|---|
| Internal memory | 2 GB |
| Internal memory type | DDR2-SDRAM |
| Buffered memory type | Fully buffered |
| ECC | Yes |
| Memory layout (slots x size) | 2 x 1 GB |
| Maximum internal memory | 32 GB |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 0 GB |
| HDD interface | Serial Attached SCSI (SAS) |
| HDD size | 3.5" |
| RAID levels | 1 |
| Hot-swap | Yes |
| Optical drive type | DVD-ROM |
Network
| Specification | Value |
|---|---|
| Network ready | Yes |
| Supported network protocols | 10Base-T/100Base-TX/1000Base-T |
| Networking features | Ethernet, Fast Ethernet, Gigabit Ethernet |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 2 |
| USB 2.0 ports quantity | 3 |
| PS/2 ports quantity | 2 |
| Serial ports quantity | 2 |
| VGA (D-Sub) ports quantity | 1 |
| Expansion slots | - 6 (6) x hot-swap - 3.5" x 1/3H; - 3 (2) x frontal - 5.25" x 1/2H; - 2 (1) x LGA771 Socket; - 8 (6) x FB-DIMM 240-pin |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x4 slots | 1 |
| PCI Express x8 slots | 1 |
| PCI-X slots | 2 |
Design
| Specification | Value |
|---|---|
| Chassis type | Rack (4U) |
Software
| Specification | Value |
|---|---|
| Bundled software | ServerView, Microsoft Windows Small Business Server 2003 R2 Premium Edition SP2 |
Processor special features
| Specification | Value |
|---|---|
| Enhanced Intel SpeedStep Technology | Yes |
| Intel 64 | Yes |
| Intel Clear Video Technology | No |
| Intel Demand Based Switching | No |
| Intel Dual Display Capable Technology | No |
| Intel Enhanced Halt State | Yes |
| Intel FDI Technology | No |
| Intel Fast Memory Access | No |
| Intel Flex Memory Access | No |
| Intel Rapid Storage Technology | No |
| Intel Trusted Execution Technology | No |
| Intel VT-x with Extended Page Tables (EPT) | No |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | No |
| Intel® AES New Instructions (Intel® AES-NI) | No |
| Intel® Anti-Theft Technology (Intel® AT) | No |
| Intel® Clear Video HD Technology (Intel® CVT HD) | No |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | No |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Intel® InTru™ 3D Technology | No |
| Intel® Insider™ | No |
| Intel® My WiFi Technology (Intel® MWT) | No |
| Intel® Quick Sync Video Technology | No |
| Intel® Turbo Boost Technology | No |
| Intel® Wireless Display (Intel® WiDi) | No |
| Processor ARK ID | 28443 |
Power
| Specification | Value |
|---|---|
| Power requirements | CA 120/230 V ( 50/60 Hz ) |
| Power consumption (typical) | 600 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 10 - 35 °C |
Certificates
| Specification | Value |
|---|---|
| Certification | CE, certificado FCC Clase A, C-Tick, BSMI CNS 13438 Class A, EN 61000-3-2, VCCI Class A ITE, EN 61000-3-3, EN55024, EN55022 Class A, UL 60950 Third Edition, CB, JEIDA, IEC 60950-1, EN 60950-1, CSA C22.2 No. 60950-1-03 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 286 mm |
| Depth | 775 mm |
| Height | 473 mm |
| Weight | 25 kg |
Other features
| Specification | Value |
|---|---|
| Disk array controller | LSISAS1068 |
