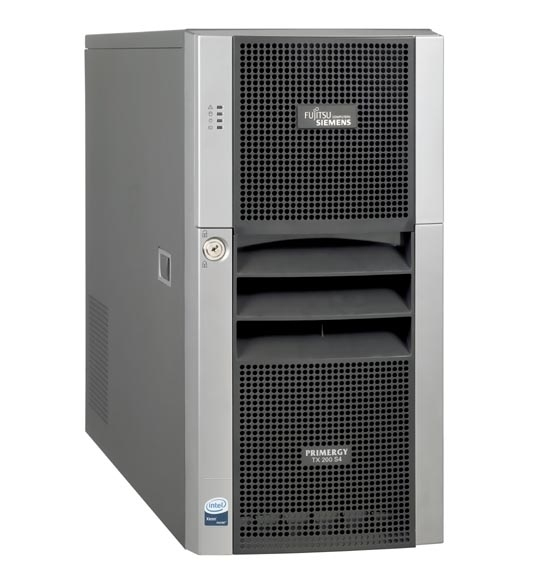

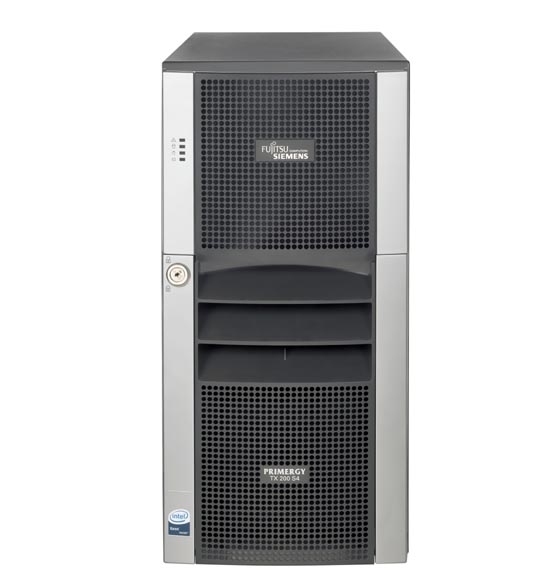

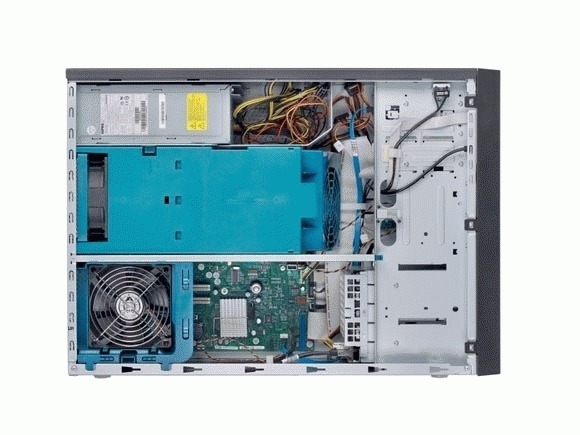

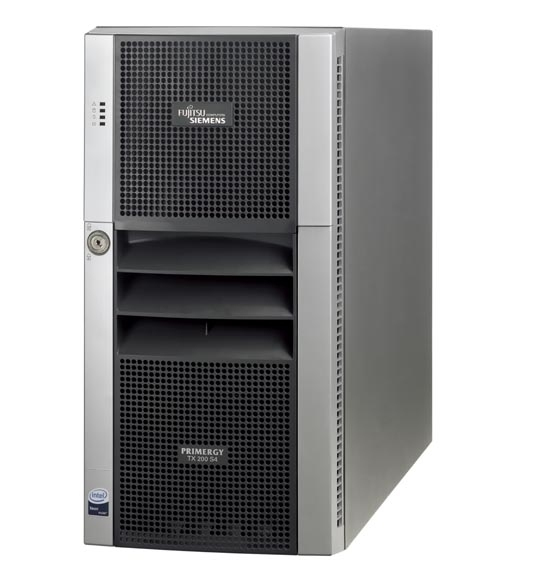

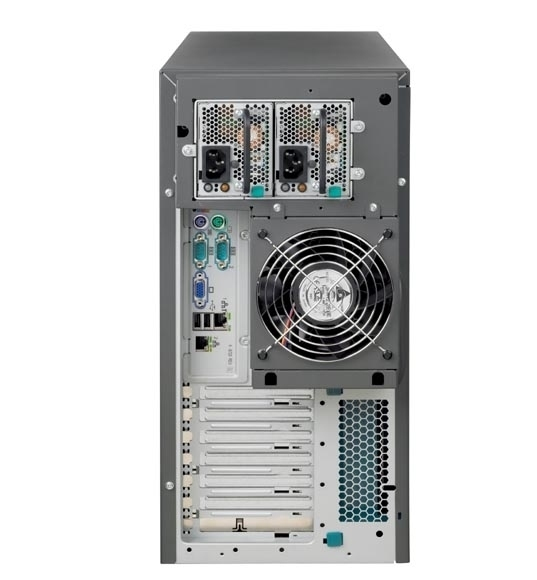

Fujitsu PRIMERGY TX200S4
Model PRIMERGY TX200S4Part no. VFY:T2004SF050DEEAN 4333643456825
87 specifications
- ProcessorIntel® Xeon® 5000 Sequence
- Memory2 GB
- Storage0 GB
- Noise37 dB
- Weight35 kg
- Processor manufacturerIntel
Overview
- Processor
- Intel® Xeon® 5000 Sequence
- Memory
- 2 GB
- Storage
- 0 GB
- Noise
- 37 dB
- Weight
- 35 kg
- Processor manufacturer
- Intel
- Brand
- Fujitsu
- Category
- Server
- Model
- PRIMERGY TX200S4
- Part numbers
- VFY:T2004SF050DE, VFY:T2004SH030DE, VFY:T2004SF040DE, VFY:T2004SF030NC, VFY:T2004SP020NC, VFY:T2004SP020NC+KB/SF
- EAN / UPC
- 4333643456825, 4333643462833, 4333643456818, 4333643452858
- Also known as
- Fujitsu PRIMERGY TX200S4 server 0 GB Tower Intel® Xeon® 5000 Sequence E5405 2 GHz 2 GB DDR2-SDRAM 700 W
Specifications
87 specifications in 13 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Xeon® 5000 Sequence |
| Processor model | E5405 |
| Processor frequency | 2 GHz |
| Processor cores | 4 |
| Processor cache | 12 MB |
| Motherboard chipset | Intel® 5000Z |
| Number of processors installed | 1 |
| Thermal Design Power (TDP) | 80 W |
| Processor cache type | L2 |
| Bus type | FSB |
| CPU multiplier (bus/core ratio) | 6 |
| ECC supported by processor | No |
| Embedded options available | No |
| Execute Disable Bit | Yes |
| FSB Parity | Yes |
| Idle States | No |
| Number of Processing Die Transistors | 820 M |
| Processing Die size | 214 mm² |
| Processor code | SLBBP |
| Processor codename | Harpertown |
| Processor front side bus | 1333 MHz |
| Processor lithography | 45 nm |
| Processor operating modes | 64-bit |
| Processor package size | 37.5 x 37.5 mm |
| Processor series | Intel Xeon 5400 Series |
| Processor socket | LGA 771 (Socket J) |
| Processor threads | 4 |
| Stepping | E0 |
| Tcase | 67 °C |
| Thermal Monitoring Technologies | Yes |
| Conflict-Free processor | No |
Memory
| Specification | Value |
|---|---|
| Internal memory | 2 GB |
| Internal memory type | DDR2-SDRAM |
| ECC | Yes |
| Memory layout (slots x size) | 2 x 1 GB |
| Maximum internal memory | 24 GB |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 0 GB |
| HDD interface | Serial Attached SCSI (SAS) |
| Hot-swap | Yes |
| Optical drive type | DVD Super Multi |
Network
| Specification | Value |
|---|---|
| Network ready | Yes |
| Networking features | Gigabit Ethernet |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| USB 2.0 ports quantity | 3 |
| PS/2 ports quantity | 2 |
| Serial ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x8 slots | 4 |
| PCI slots | 1 |
| PCI-X slots | 2 |
Design
| Specification | Value |
|---|---|
| Chassis type | Tower |
Performance
| Specification | Value |
|---|---|
| Noise level | 37 dB |
Processor special features
| Specification | Value |
|---|---|
| Enhanced Intel SpeedStep Technology | No |
| Intel 64 | Yes |
| Intel Clear Video Technology | No |
| Intel Demand Based Switching | No |
| Intel Dual Display Capable Technology | No |
| Intel Enhanced Halt State | No |
| Intel FDI Technology | No |
| Intel Fast Memory Access | No |
| Intel Flex Memory Access | No |
| Intel Rapid Storage Technology | No |
| Intel Trusted Execution Technology | No |
| Intel VT-x with Extended Page Tables (EPT) | No |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | No |
| Intel® AES New Instructions (Intel® AES-NI) | No |
| Intel® Anti-Theft Technology (Intel® AT) | No |
| Intel® Clear Video HD Technology (Intel® CVT HD) | No |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | No |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Intel® InTru™ 3D Technology | No |
| Intel® Insider™ | No |
| Intel® My WiFi Technology (Intel® MWT) | No |
| Intel® Quick Sync Video Technology | No |
| Intel® Turbo Boost Technology | No |
| Intel® Wireless Display (Intel® WiDi) | No |
| Processor ARK ID | 33079 |
Power
| Specification | Value |
|---|---|
| Power requirements | 100 - 127 V / 200 - 240 V, 50 - 60 Hz |
| Power supply | 700 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 10 - 35 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 216 mm |
| Depth | 699 mm |
| Height | 447 mm |
| Weight | 35 kg |
Other features
| Specification | Value |
|---|---|
| I/O ports | 2 x RS-232-C, 4 x SATA II, 8 x SAS |
