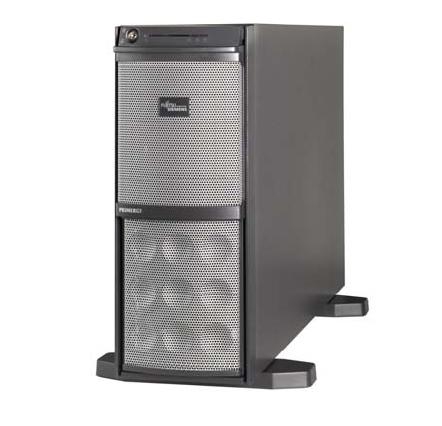

Fujitsu PRIMERGY TX200 S3
Model PRIMERGY TX200 S3Part no. CFY:TX200S3-006INEAN 5051749742084
78 specifications
- ProcessorIntel® Xeon® 5000 Sequence
- Memory2 GB
- Storage146 GB
- Weight25 kg
- Processor manufacturerIntel
- Ethernet LAN (RJ-45) ports1
Overview
- Processor
- Intel® Xeon® 5000 Sequence
- Memory
- 2 GB
- Storage
- 146 GB
- Weight
- 25 kg
- Processor manufacturer
- Intel
- Ethernet LAN (RJ-45) ports
- 1
- Brand
- Fujitsu
- Category
- Server
- Model
- PRIMERGY TX200 S3
- Part numbers
- CFY:TX200S3-006IN, CFY:TX200S3-012IN, CFY:TX200S3-013IN, CFY:TX200S3-011IN, CFY:TX200S3-009IN, CFY:TX200S3-008IN +19 more
- EAN / UPC
- 5051749742084, 4333643068097, 4333643068080, 4045827783404 +5 more
- Also known as
- Fujitsu PRIMERGY TX200 S3 server Tower Intel® Xeon® 5000 Sequence 5110 1.6 GHz 2 GB 600 W
Specifications
78 specifications in 11 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Xeon® 5000 Sequence |
| Processor model | 5110 |
| Processor frequency | 1.6 GHz |
| Processor cores | 2 |
| Processor cache | 4 MB |
| Motherboard chipset | Intel® 5000V |
| Thermal Design Power (TDP) | 65 W |
| Processor cache type | L2 |
| Bus type | FSB |
| CPU multiplier (bus/core ratio) | 6 |
| ECC supported by processor | No |
| Embedded options available | No |
| Execute Disable Bit | Yes |
| FSB Parity | Yes |
| Idle States | Yes |
| Number of Processing Die Transistors | 291 M |
| Processing Die size | 143 mm² |
| Processor codename | Woodcrest |
| Processor front side bus | 1066 MHz |
| Processor lithography | 65 nm |
| Processor operating modes | 64-bit |
| Processor package size | 37.5 x 37.5 mm |
| Processor series | Intel Xeon 5100 Series |
| Processor socket | LGA 771 (Socket J) |
| Processor threads | 2 |
| Tcase | 65 °C |
| Thermal Monitoring Technologies | Yes |
| Conflict-Free processor | No |
Memory
| Specification | Value |
|---|---|
| Internal memory | 2 GB |
| Maximum internal memory | 16 GB |
Storage
| Specification | Value |
|---|---|
| HDD capacity | 146 GB |
| RAID levels | 1, 10 |
| Optical drive type | DVD-ROM |
Network
| Specification | Value |
|---|---|
| Networking features | Ethernet/Fast Ethernet/Gigabit Ethernet |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| USB 2.0 ports quantity | 3 |
| PS/2 ports quantity | 2 |
| Parallel ports quantity | 1 |
| Serial ports quantity | 2 |
| VGA (D-Sub) ports quantity | 1 |
Design
| Specification | Value |
|---|---|
| Chassis type | Tower |
Software
| Specification | Value |
|---|---|
| Compatible operating systems | Microsoft: Windows 2003 Standard, Enterprise IA32 Edition; Microsoft: Windows 2003 Standard, Enterprise x64 Edition; Microsoft Windows 2003 Web Edition Microsoft Small Business Server 2003 Stand./Premium Edition* Microsoft: Windows 2000 Advanced Server; Server SUSE: Enterprise Server 8 for x86, 9 an |
Processor special features
| Specification | Value |
|---|---|
| Enhanced Intel SpeedStep Technology | Yes |
| Intel 64 | Yes |
| Intel Clear Video Technology | No |
| Intel Demand Based Switching | No |
| Intel Dual Display Capable Technology | No |
| Intel Enhanced Halt State | Yes |
| Intel FDI Technology | No |
| Intel Fast Memory Access | No |
| Intel Flex Memory Access | No |
| Intel Rapid Storage Technology | No |
| Intel Trusted Execution Technology | No |
| Intel VT-x with Extended Page Tables (EPT) | No |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | No |
| Intel® AES New Instructions (Intel® AES-NI) | No |
| Intel® Anti-Theft Technology (Intel® AT) | No |
| Intel® Clear Video HD Technology (Intel® CVT HD) | No |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | No |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Intel® InTru™ 3D Technology | No |
| Intel® Insider™ | No |
| Intel® My WiFi Technology (Intel® MWT) | No |
| Intel® Quick Sync Video Technology | No |
| Intel® Turbo Boost Technology | No |
| Intel® Wireless Display (Intel® WiDi) | No |
| Processor ARK ID | 27214 |
Power
| Specification | Value |
|---|---|
| Power supply | 600 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 286 mm |
| Depth | 775 mm |
| Height | 473 mm |
| Weight | 25 kg |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 286 x 775 x 473 mm |
| Storage drive controller | SAS 3Gb/s |
| RAID controller type | 0-Channel SAS 128MB LP LSI |
| Storage drive type | Hot plug 3.5" |
What people say
Reviews & ratings
Fujitsu PRIMERGY TX200 S3
No reviews yet
Be the first to tell others how Fujitsu PRIMERGY TX200 S3 works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare Fujitsu PRIMERGY TX200 S3
All server comparisons- Fujitsu PRIMERGY TX200 S3 vsFujitsu PRIMERGY TX150 S5Compare specs
- Fujitsu PRIMERGY TX200 S3 vsFujitsu PRIMERGY TX300 S3Compare specs
- Fujitsu PRIMERGY TX200 S3 vsFujitsu PRIMERGY RX300 S3Compare specs
- Fujitsu PRIMERGY TX200 S3 vsFujitsu Primergy RX100 S3Compare specs

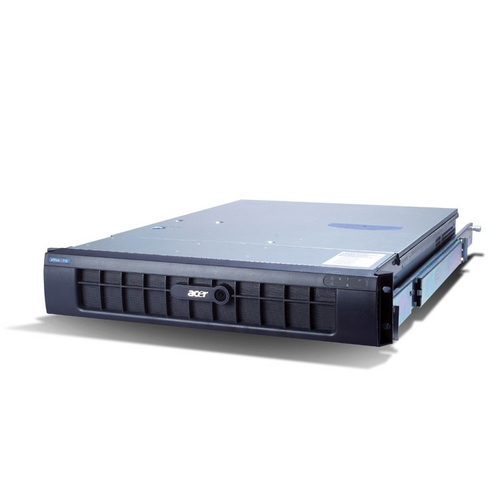

- Fujitsu PRIMERGY TX200 S3 vsAcer Altos G710 - Xeon 3.4GHz, 1024MB RAM, no HDDCompare specs
