Fujitsu Primergy TX150 S6 XE X3350
Model Primergy TX150 S6 XE X3350Part no. LKN:T1506S0024DEEAN 4049699302497
85 specifications
- ProcessorIntel® Xeon®
- Memory4 GB
- Storage438 GB
- Weight28 kg
- Processor manufacturerIntel
- Networking features10/100 Mbit/s
Overview
- Processor
- Intel® Xeon®
- Memory
- 4 GB
- Storage
- 438 GB
- Weight
- 28 kg
- Processor manufacturer
- Intel
- Networking features
- 10/100 Mbit/s
- Brand
- Fujitsu
- Category
- Server
- Model
- Primergy TX150 S6 XE X3350
- Part numbers
- LKN:T1506S0024DE, LKN:T1506S0025DE
- EAN / UPC
- 4049699302497, 4049699302503
- Also known as
- Fujitsu PRIMERGY TX150 S6 XE X3350 server 438 GB Tower Intel® Xeon® 2.66 GHz 4 GB DDR2-SDRAM 400 W
Specifications
85 specifications in 12 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Xeon® |
| Processor model | X3350 |
| Processor frequency | 2.66 GHz |
| Processor cores | 4 |
| Processor cache | 12 MB |
| Number of processors installed | 1 |
| Thermal Design Power (TDP) | 95 W |
| Processor cache type | L2 |
| Bus type | FSB |
| CPU multiplier (bus/core ratio) | 8 |
| ECC supported by processor | No |
| Embedded options available | No |
| Execute Disable Bit | Yes |
| FSB Parity | No |
| Idle States | Yes |
| Number of Processing Die Transistors | 820 M |
| Processing Die size | 214 mm² |
| Processor code | SLB8Y |
| Processor codename | Yorkfield |
| Processor front side bus | 1333 MHz |
| Processor lithography | 45 nm |
| Processor operating modes | 64-bit |
| Processor series | Intel Xeon 3300 Series |
| Processor socket | LGA 775 (Socket T) |
| Processor system type | Up |
| Processor threads | 4 |
| Stepping | E0 |
| Tcase | 71.4 °C |
| Thermal Monitoring Technologies | Yes |
| Conflict-Free processor | No |
Memory
| Specification | Value |
|---|---|
| Internal memory | 4 GB |
| Internal memory type | DDR2-SDRAM |
| ECC | Yes |
| Memory clock speed | 800 MHz |
| Memory layout (slots x size) | 2 x 2 GB |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 438 GB |
| Number of HDDs installed | 3 |
| HDD capacity | 146 GB |
| Hot-swap | Yes |
| Optical drive type | DVD-RW |
Network
| Specification | Value |
|---|---|
| Networking features | 10/100 Mbit/s |
| Wake-on-LAN ready | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| USB 2.0 ports quantity | 8 |
| PS/2 ports quantity | 0 |
| Serial ports quantity | 2 |
| VGA (D-Sub) ports quantity | 1 |
Design
| Specification | Value |
|---|---|
| Chassis type | Tower |
Processor special features
| Specification | Value |
|---|---|
| Enhanced Intel SpeedStep Technology | Yes |
| Intel 64 | Yes |
| Intel Clear Video Technology | No |
| Intel Demand Based Switching | Yes |
| Intel Dual Display Capable Technology | No |
| Intel Enhanced Halt State | Yes |
| Intel FDI Technology | No |
| Intel Fast Memory Access | No |
| Intel Flex Memory Access | No |
| Intel Rapid Storage Technology | No |
| Intel Trusted Execution Technology | No |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | No |
| Intel® AES New Instructions (Intel® AES-NI) | No |
| Intel® Anti-Theft Technology (Intel® AT) | No |
| Intel® Clear Video HD Technology (Intel® CVT HD) | No |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | No |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Intel® InTru™ 3D Technology | No |
| Intel® Insider™ | No |
| Intel® My WiFi Technology (Intel® MWT) | No |
| Intel® Quick Sync Video Technology | No |
| Intel® Turbo Boost Technology | No |
| Intel® Wireless Display (Intel® WiDi) | No |
| Processor ARK ID | 33932 |
Power
| Specification | Value |
|---|---|
| Redundant power supply (RPS) support | No |
| Power supply | 400 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 10 - 35 °C |
| Operating relative humidity (H-H) | 10 - 85% |
Certificates
| Specification | Value |
|---|---|
| Certification | GS, CE, CSAc/us, ULc/us, FCC, CB, RoHS, WEEE, VCCI, KCC, C-Tick, BSMI, SASO |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 205 mm |
| Depth | 605 mm |
| Height | 444 mm |
| Weight | 28 kg |
Other features
| Specification | Value |
|---|---|
| Acoustic pressure emissions | 26 dB |
What people say
Reviews & ratings
Fujitsu Primergy TX150 S6 XE X3350
No reviews yet
Be the first to tell others how Fujitsu Primergy TX150 S6 XE X3350 works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare Fujitsu Primergy TX150 S6 XE X3350
All server comparisons- Fujitsu Primergy TX150 S6 XE X3350 vsFujitsu PRIMERGY TX300 S6Compare specs
- Fujitsu Primergy TX150 S6 XE X3350 vsFujitsu TX100 S1Compare specs
- Fujitsu Primergy TX150 S6 XE X3350 vsFujitsu RX300 S6Compare specs
- Fujitsu Primergy TX150 S6 XE X3350 vsFujitsu Primergy RX300 S6Compare specs

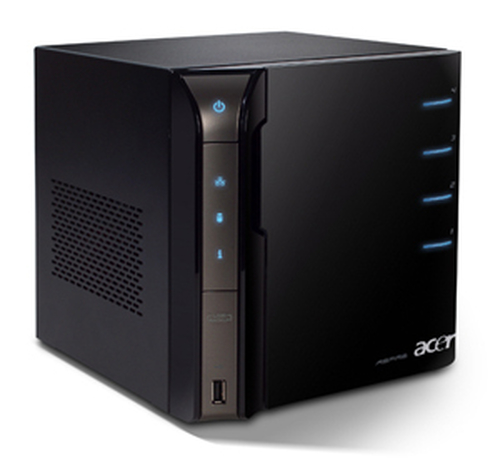

- Fujitsu Primergy TX150 S6 XE X3350 vsAcer Aspire Easy Store H340Compare specs
- Fujitsu Primergy TX150 S6 XE X3350 vsTERRA Server 6120Compare specs
- Fujitsu Primergy TX150 S6 XE X3350 vsAcer Aspire easyStore H340-S1T20NCompare specs

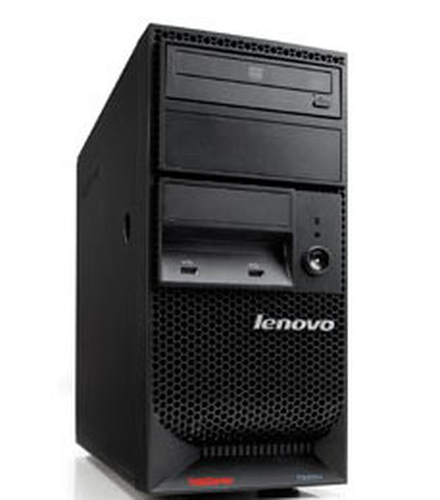

- Fujitsu Primergy TX150 S6 XE X3350 vsLenovo ThinkServer TS200vCompare specs
