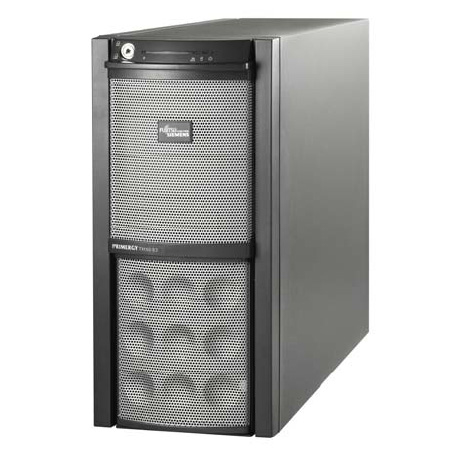

Fujitsu PRIMERGY TX150 S5
Model PRIMERGY TX150 S5Part no. VFY:TX150S5-102NLEAN 4045827850663
77 specifications
- ProcessorIntel® Xeon®
- Memory1 GB
- Storage146 GB
- Weight28 kg
- Processor manufacturerIntel
- Ethernet LAN (RJ-45) ports1
Overview
- Processor
- Intel® Xeon®
- Memory
- 1 GB
- Storage
- 146 GB
- Weight
- 28 kg
- Processor manufacturer
- Intel
- Ethernet LAN (RJ-45) ports
- 1
- Brand
- Fujitsu
- Category
- Server
- Model
- PRIMERGY TX150 S5
- Part numbers
- VFY:TX150S5-102NL, VFY:TX150S5-112NL, VFY:TX150S5-105DE, VFY:TX150S5-114NL, VFY:TX150S5-115NL, CFY:TX150S5-002IN +15 more
- EAN / UPC
- 4045827850663, 4333643048686
- Also known as
- Fujitsu PRIMERGY TX150 S5 server Tower Intel® Xeon® 3050 2.13 GHz 1 GB DDR2-SDRAM 400 W
Specifications
77 specifications in 10 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Xeon® |
| Processor model | 3050 |
| Processor frequency | 2.13 GHz |
| Processor cores | 2 |
| Processor cache | 2 MB |
| Motherboard chipset | Intel® 3000 |
| Thermal Design Power (TDP) | 65 W |
| Processor cache type | L2 |
| Bus type | FSB |
| CPU multiplier (bus/core ratio) | 8 |
| ECC supported by processor | No |
| Embedded options available | No |
| Execute Disable Bit | Yes |
| FSB Parity | No |
| Idle States | Yes |
| Number of Processing Die Transistors | 167 M |
| Physical Address Extension (PAE) | 32 bit |
| Processing Die size | 111 mm² |
| Processor codename | Conroe |
| Processor front side bus | 1066 MHz |
| Processor lithography | 65 nm |
| Processor operating modes | 64-bit |
| Processor package size | 37.5 x 37.5 mm |
| Processor series | Intel Xeon 3000 Series |
| Processor socket | LGA 775 (Socket T) |
| Processor threads | 2 |
| Tcase | 61.4 °C |
| Thermal Monitoring Technologies | Yes |
| Conflict-Free processor | No |
Memory
| Specification | Value |
|---|---|
| Internal memory | 1 GB |
| Internal memory type | DDR2-SDRAM |
| Maximum internal memory | 8 GB |
Storage
| Specification | Value |
|---|---|
| HDD capacity | 146 GB |
| HDD interface | SCSI |
| Optical drive type | DVD-ROM |
Network
| Specification | Value |
|---|---|
| Networking features | Ethernet/Fast Ethernet/Gigabit Ethernet |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| USB 2.0 ports quantity | 3 |
| PS/2 ports quantity | 2 |
| Parallel ports quantity | 1 |
| Serial ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
Design
| Specification | Value |
|---|---|
| Chassis type | Tower |
Processor special features
| Specification | Value |
|---|---|
| Enhanced Intel SpeedStep Technology | Yes |
| Intel 64 | Yes |
| Intel Clear Video Technology | No |
| Intel Demand Based Switching | No |
| Intel Dual Display Capable Technology | No |
| Intel Enhanced Halt State | Yes |
| Intel FDI Technology | No |
| Intel Fast Memory Access | No |
| Intel Flex Memory Access | No |
| Intel Rapid Storage Technology | No |
| Intel Trusted Execution Technology | No |
| Intel VT-x with Extended Page Tables (EPT) | No |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | No |
| Intel® AES New Instructions (Intel® AES-NI) | No |
| Intel® Anti-Theft Technology (Intel® AT) | No |
| Intel® Clear Video HD Technology (Intel® CVT HD) | No |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | No |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Intel® InTru™ 3D Technology | No |
| Intel® Insider™ | No |
| Intel® My WiFi Technology (Intel® MWT) | No |
| Intel® Quick Sync Video Technology | No |
| Intel® Turbo Boost Technology | No |
| Intel® Wireless Display (Intel® WiDi) | No |
| Processor ARK ID | 27204 |
Power
| Specification | Value |
|---|---|
| Power supply | 400 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 205 mm |
| Depth | 605 mm |
| Height | 444 mm |
| Weight | 28 kg |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 205 x 605 x 444 mm |
| Storage drive controller | SAS |
