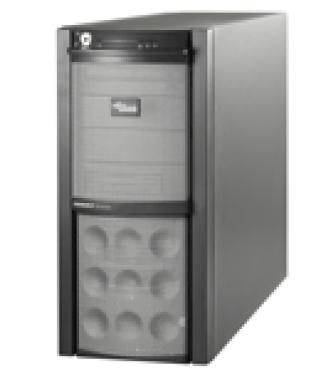

Primergy TX150 S3
Model Primergy TX150 S3Part no. VFY:TX150S3-004BN
30 specifications
- ProcessorIntel® Pentium® 4
- Memory1 GB
- Weight28 kg
- RAID levels1
- Maximum graphics card memory8 MB
- Chassis typeTower
Overview
- Processor
- Intel® Pentium® 4
- Memory
- 1 GB
- Weight
- 28 kg
- RAID levels
- 1
- Maximum graphics card memory
- 8 MB
- Chassis type
- Tower
- Brand
- Fujitsu
- Category
- Server
- Model
- Primergy TX150 S3
- Part number
- VFY:TX150S3-004BN
- Also known as
- Fujitsu PRIMERGY TX150 S3 server Tower Intel® Pentium® 4 3.6 GHz 1 GB DDR-SDRAM 400 W
Specifications
30 specifications in 11 groups
Processor
| Specification | Value |
|---|---|
| Processor family | Intel® Pentium® 4 |
| Processor frequency | 3.6 GHz |
| Processor cache | 1 MB |
| Motherboard chipset | Intel® E7221 |
| Processor cache type | L2 |
| Maximum number of SMP processors | 1 |
| Processor front side bus | 800 MHz |
Memory
| Specification | Value |
|---|---|
| Internal memory | 1 GB |
| Internal memory type | DDR-SDRAM |
| Maximum internal memory | 4 GB |
Storage
| Specification | Value |
|---|---|
| RAID levels | 1 |
| Optical drive type | DVD-ROM |
Graphics
| Specification | Value |
|---|---|
| Maximum graphics card memory | 8 MB |
Network
| Specification | Value |
|---|---|
| Networking features | Ethernet/Fast Ethernet/Gigabit Ethernet |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| USB 2.0 ports quantity | 3 |
| PS/2 ports quantity | 2 |
| Parallel ports quantity | 1 |
| Serial ports quantity | 2 |
| VGA (D-Sub) ports quantity | 1 |
Design
| Specification | Value |
|---|---|
| Chassis type | Tower |
Software
| Specification | Value |
|---|---|
| Compatible operating systems | Microsoft: Windows 2003 Enterprise; Standard; Web Edition Microsoft: Windows SBS* 2003 Standard Microsoft: Windows 2000 Advanced Server; Server Novell: Netware 6.5 (only for SCSI variant) SCO: Open Server 5.0.7; Unixware 7.1.4 (only SCSI) SUSE: LINUX 9.1, 9.3(SCSI); ES-8, ES-9 for x86 Red Hat: LINUX |
Power
| Specification | Value |
|---|---|
| Power supply | 400 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 205 mm |
| Depth | 605 mm |
| Height | 444 mm |
| Weight | 28 kg |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 205 x 605 x 444 mm |
| Storage drive controller | Ultra320 SCSI |
| Diskette drive memory | 1.44 MB |
