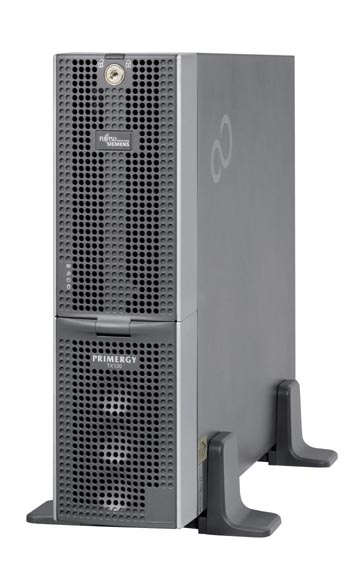

Fujitsu PRIMERGY TX120 S1
Model PRIMERGY TX120 S1Part no. LKN:CRE1109101-002EAN 4333643145484
77 specifications
- ProcessorIntel® Xeon®
- Memory1 GB
- Weight10 kg
- Processor manufacturerIntel
- HDD size2.5"
- Networking featuresGigabit Ethernet
Overview
- Processor
- Intel® Xeon®
- Memory
- 1 GB
- Weight
- 10 kg
- Processor manufacturer
- Intel
- HDD size
- 2.5"
- Networking features
- Gigabit Ethernet
- Brand
- Fujitsu
- Category
- Server
- Model
- PRIMERGY TX120 S1
- Part numbers
- LKN:CRE1109101-002, VFY:TX120-905ES, LBY:CZH-TX120HD146, VFY:T1201SF010DE, VFY:T1201SF010NL, VFY:TX120-101NC +1 more
- EAN / UPC
- 4333643145484, 4333643568160, 4333643539047
- Also known as
- Fujitsu PRIMERGY TX120 S1 server Tower Intel® Xeon® 3040 1.86 GHz 1 GB 250 W
Specifications
77 specifications in 10 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Xeon® |
| Processor model | 3040 |
| Processor frequency | 1.86 GHz |
| Processor cores | 2 |
| Processor cache | 2 MB |
| Motherboard chipset | Intel® 3000 |
| Thermal Design Power (TDP) | 65 W |
| Processor cache type | L2 |
| Bus type | FSB |
| CPU multiplier (bus/core ratio) | 7 |
| ECC supported by processor | No |
| Embedded options available | No |
| Execute Disable Bit | Yes |
| FSB Parity | No |
| Idle States | Yes |
| Number of Processing Die Transistors | 167 M |
| Physical Address Extension (PAE) | 32 bit |
| Processing Die size | 111 mm² |
| Processor codename | Conroe |
| Processor front side bus | 1066 MHz |
| Processor lithography | 65 nm |
| Processor operating modes | 64-bit |
| Processor package size | 37.5 x 37.5 mm |
| Processor series | Intel Xeon 3000 Series |
| Processor socket | LGA 775 (Socket T) |
| Processor threads | 2 |
| Tcase | 61.4 °C |
| Thermal Monitoring Technologies | Yes |
| Conflict-Free processor | No |
Memory
| Specification | Value |
|---|---|
| Internal memory | 1 GB |
| ECC | Yes |
Storage
| Specification | Value |
|---|---|
| HDD size | 2.5" |
| RAID levels | 1 |
| Optical drive type | DVD-ROM |
Network
| Specification | Value |
|---|---|
| Networking features | Gigabit Ethernet |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| USB 2.0 ports quantity | 3 |
| PS/2 ports quantity | 2 |
| Serial ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
Design
| Specification | Value |
|---|---|
| Chassis type | Tower |
Processor special features
| Specification | Value |
|---|---|
| Enhanced Intel SpeedStep Technology | Yes |
| Intel 64 | Yes |
| Intel Clear Video Technology | No |
| Intel Demand Based Switching | No |
| Intel Dual Display Capable Technology | No |
| Intel Enhanced Halt State | Yes |
| Intel FDI Technology | No |
| Intel Fast Memory Access | No |
| Intel Flex Memory Access | No |
| Intel Rapid Storage Technology | No |
| Intel Trusted Execution Technology | No |
| Intel VT-x with Extended Page Tables (EPT) | No |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | No |
| Intel® AES New Instructions (Intel® AES-NI) | No |
| Intel® Anti-Theft Technology (Intel® AT) | No |
| Intel® Clear Video HD Technology (Intel® CVT HD) | No |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | No |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Intel® InTru™ 3D Technology | No |
| Intel® Insider™ | No |
| Intel® My WiFi Technology (Intel® MWT) | No |
| Intel® Quick Sync Video Technology | No |
| Intel® Turbo Boost Technology | No |
| Intel® Wireless Display (Intel® WiDi) | No |
| Processor ARK ID | 27203 |
Power
| Specification | Value |
|---|---|
| Power requirements | 100 - 240 VAC, 50 - 60 Hz |
| Power supply | 250 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 99 mm |
| Depth | 399 mm |
| Height | 340 mm |
| Weight | 10 kg |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 99 x 399 x 340 mm |
| Storage drive controller | SAS |
| Diskette drive memory | 1.44 MB |
