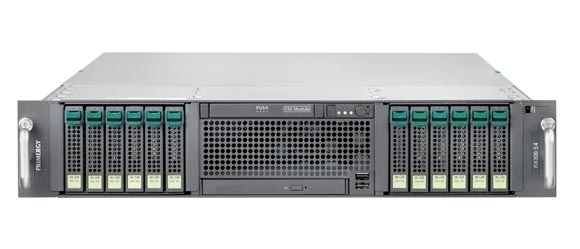

Fujitsu PRIMERGY RX300S4
Model PRIMERGY RX300S4Part no. VFY:R3004SF040NC
93 specifications
- ProcessorIntel® Xeon® 5000 Sequence
- Memory2 GB
- Storage0 GB
- Noise52 dB
- Weight25 kg
- Processor manufacturerIntel
Overview
- Processor
- Intel® Xeon® 5000 Sequence
- Memory
- 2 GB
- Storage
- 0 GB
- Noise
- 52 dB
- Weight
- 25 kg
- Processor manufacturer
- Intel
- Brand
- Fujitsu
- Category
- Server
- Model
- PRIMERGY RX300S4
- Part numbers
- VFY:R3004SF040NC, VFY:R3004SF050NC, VFY:R3004SF030NC
- Also known as
- Fujitsu PRIMERGY RX300S4 server 0 GB Rack (2U) Intel® Xeon® 5000 Sequence E5420 2.5 GHz 2 GB DDR2-SDRAM 700 W
Specifications
93 specifications in 15 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Xeon® 5000 Sequence |
| Processor model | E5420 |
| Processor frequency | 2.5 GHz |
| Processor cores | 4 |
| Processor cache | 12 MB |
| Motherboard chipset | Intel® 5000P |
| Number of processors installed | 1 |
| Thermal Design Power (TDP) | 80 W |
| Processor cache type | L2 |
| Bus type | FSB |
| CPU multiplier (bus/core ratio) | 7.5 |
| ECC supported by processor | No |
| Embedded options available | No |
| Execute Disable Bit | Yes |
| FSB Parity | Yes |
| Idle States | Yes |
| Number of Processing Die Transistors | 820 M |
| Processing Die size | 214 mm² |
| Processor code | SLANV |
| Processor codename | Harpertown |
| Processor front side bus | 1333 MHz |
| Processor lithography | 45 nm |
| Processor operating modes | 64-bit |
| Processor package size | 37.5 x 37.5 mm |
| Processor series | Intel Xeon 5400 Series |
| Processor socket | LGA 771 (Socket J) |
| Processor system type | DP |
| Processor threads | 4 |
| Stepping | C0 |
| Tcase | 67 °C |
| Thermal Monitoring Technologies | Yes |
| Conflict-Free processor | No |
Memory
| Specification | Value |
|---|---|
| Internal memory | 2 GB |
| Internal memory type | DDR2-SDRAM |
| ECC | Yes |
| Memory clock speed | 667 MHz |
| Memory layout (slots x size) | 2 x 1 GB |
| Maximum internal memory | 48 GB |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 0 GB |
| HDD interface | Serial Attached SCSI (SAS) |
| HDD size | 3.5" |
| RAID levels | 1, 5, 6, 10, 50, 60 |
| Hot-swap | Yes |
Network
| Specification | Value |
|---|---|
| Network ready | Yes |
| Networking features | Gigabit Ethernet |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 2 |
| USB 2.0 ports quantity | 4 |
| PS/2 ports quantity | 2 |
| Serial ports quantity | 2 |
| Supports EPP and ECP | Yes |
| VGA (D-Sub) ports quantity | 1 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x8 slots | 5 |
| PCI-X slots | 1 |
Design
| Specification | Value |
|---|---|
| Chassis type | Rack (2U) |
Performance
| Specification | Value |
|---|---|
| Noise level | 52 dB |
Software
| Specification | Value |
|---|---|
| Compatible operating systems | Windows Server 2003, Windows Server 2008, Novell SUSE Linux Enterprise Server, Red Hat Enterprise Linux, VMware ESX |
Processor special features
| Specification | Value |
|---|---|
| Enhanced Intel SpeedStep Technology | Yes |
| Intel 64 | Yes |
| Intel Clear Video Technology | No |
| Intel Demand Based Switching | Yes |
| Intel Dual Display Capable Technology | No |
| Intel Enhanced Halt State | Yes |
| Intel FDI Technology | No |
| Intel Fast Memory Access | No |
| Intel Flex Memory Access | No |
| Intel Rapid Storage Technology | No |
| Intel Trusted Execution Technology | No |
| Intel VT-x with Extended Page Tables (EPT) | No |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | No |
| Intel® AES New Instructions (Intel® AES-NI) | No |
| Intel® Anti-Theft Technology (Intel® AT) | No |
| Intel® Clear Video HD Technology (Intel® CVT HD) | No |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | No |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Intel® InTru™ 3D Technology | No |
| Intel® Insider™ | No |
| Intel® My WiFi Technology (Intel® MWT) | No |
| Intel® Quick Sync Video Technology | No |
| Intel® Turbo Boost Technology | No |
| Intel® Wireless Display (Intel® WiDi) | No |
| Processor ARK ID | 33927 |
Power
| Specification | Value |
|---|---|
| Power requirements | 100 – 127 V / 200 - 240 V, 50 - 60 Hz |
| Power supply | 700 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 10 - 35 °C |
Certificates
| Specification | Value |
|---|---|
| Electromagnetic compatibility | EN 55 022 class A, EN 55024, EN61000-3-2 / -3-3, ETSI EN300386 |
| Safety | IEC 60950-1 / EN 60950-1 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 483 mm |
| Depth | 785 mm |
| Height | 86 mm |
| Weight | 25 kg |
Other features
| Specification | Value |
|---|---|
| I/O ports | 2 x SATA, 8 x SAS |
