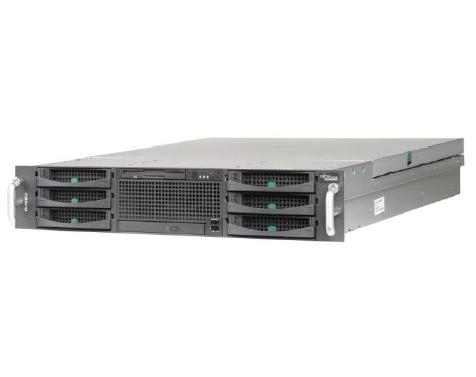

Fujitsu Primergy RX300S3

Model Primergy RX300S3Part no. VFY:R3003SX020INEAN 4333643545291

86 specifications

Overview

Brand: Fujitsu
Category: Server
Model: Primergy RX300S3
Part numbers: VFY:R3003SX020IN, VFY:R3003SX030IN
EAN / UPC: 4333643545291, 4333643545307
Also known as: Fujitsu PRIMERGY RX300S3 server Rack (2U) Intel® Xeon® 5000 Sequence 5120 1.86 GHz 2 GB DDR2-SDRAM 600 W

86 specifications in 15 groups

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Xeon® 5000 Sequence
Processor model	5120
Processor frequency	1.86 GHz
Processor cores	2
Processor cache	4 MB
Motherboard chipset	Intel® 5000P
Thermal Design Power (TDP)	65 W
Processor cache type	L2
Bus type	FSB
CPU multiplier (bus/core ratio)	7
ECC supported by processor	No
Embedded options available	No
Execute Disable Bit	Yes
FSB Parity	Yes
Idle States	Yes
Number of Processing Die Transistors	291 M
Processing Die size	143 mm²
Processor codename	Woodcrest
Processor front side bus	1066 MHz
Processor lithography	65 nm
Processor operating modes	64-bit
Processor package size	37.5 x 37.5 mm
Processor series	Intel Xeon 5100 Series
Processor socket	LGA 771 (Socket J)
Processor system type	DP
Processor threads	2
Tcase	65 °C
Thermal Monitoring Technologies	Yes
Conflict-Free processor	No

Specification	Value
RAID levels	1, 5, 10, 50

Specification	Value
Maximum graphics card memory	8 MB

Specification	Value
Network ready	Yes
Networking features	Ethernet/Fast Ethernet/Gigabit Ethernet

Specification	Value
Chassis type	Rack (2U)

Specification	Value
Noise level	56 dB

Specification	Value
Compatible operating systems	Windows Server 2003, Novell SUSE Linux Enterprise Server, Red Hat Enterprise Linux, VMware ESX

Specification	Value
Enhanced Intel SpeedStep Technology	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	Yes
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	No
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Quick Sync Video Technology	No
Intel® Turbo Boost Technology	No
Intel® Wireless Display (Intel® WiDi)	No
Processor ARK ID	27215

Specification	Value
Power requirements	100 - 240V, 50/60 Hz
Power supply	600 W

Specification	Value
Operating temperature (T-T)	10 - 35 °C

Specification	Value
Electromagnetic compatibility	EN 55 022 A, EN 55024, EN 61000-3-2 / -3-3
Safety	IEC 60950-1, EN 60950-1

Specification	Value
I/O ports	8 x SAS
