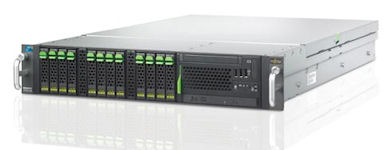

Fujitsu Primergy RX300 S6

Model Primergy RX300 S6Part no. VFY:R3006SX010IN/B5EAN 404969929714

101 specifications

Overview

Brand: Fujitsu
Category: Server
Model: Primergy RX300 S6
Part numbers: VFY:R3006SX010IN/B5, VFY:R3006SX010IN/B6, VFY:R3006SX010IN/B7, VFY:R3006SX030IN/B5, VFY:R3006SX030IN/B6, VFY:R3006SX030IN/B7 +34 more
EAN / UPC: 404969929714, 4049699299100, 4049699298981, 4049699307966 +15 more
Also known as: Fujitsu PRIMERGY RX300 S6 server Rack (2U) Intel® Xeon® 5000 Sequence E5620 2.4 GHz 4 GB DDR3-SDRAM 800 W

101 specifications in 12 groups

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Xeon® 5000 Sequence
Processor model	E5620
Processor frequency	2.4 GHz
Processor boost frequency	2.66 GHz
Processor cores	4
Processor cache	12 MB
Memory channels supported by processor	Triple
Number of processors installed	1
Thermal Design Power (TDP)	80 W
Processor cache type	Smart Cache
System bus rate	5.86 GT/s
Bus type	QPI
CPU multiplier (bus/core ratio)	18
ECC supported by processor	Yes
Embedded options available	Yes
Execute Disable Bit	Yes
FSB Parity	No
Idle States	Yes
Maximum internal memory supported by processor	288 GB
Memory bandwidth supported by processor (max)	25.6 GB/s
Memory clock speeds supported by processor	800,1066 MHz
Memory types supported by processor	DDR3 800/1066
Number of QPI links	2
Physical Address Extension (PAE)	40 bit
Processor code	SLBV4
Processor codename	Westmere EP
Processor lithography	32 nm
Processor operating modes	64-bit
Processor package size	42.5 X 45 mm
Processor series	Intel Xeon 5600 Series
Processor socket	Socket B (LGA 1366)
Processor threads	8
Stepping	B1
Supported instruction sets	SSE4.2
Tcase	77.6 °C
Thermal Monitoring Technologies	No
Conflict-Free processor	No

Specification	Value
PCI Express x4 slots	5
PCI Express x8 slots	2

Specification	Value
Chassis type	Rack (2U)

Specification	Value
Compatible operating systems	Microsoft Windows Serever 2008, Microsoft Windows Server 2003 R2, Novell SUSE Linux Enterprise Server, Red Hat Enterprise Linux, Citrix XenServer

Specification	Value
CPU configuration (max)	2
Enhanced Intel SpeedStep Technology	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	Yes
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	Yes
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Anti-Theft Technology (Intel® AT)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Quick Sync Video Technology	No
Intel® Turbo Boost Technology	1.0
Intel® Wireless Display (Intel® WiDi)	No
Processor ARK ID	47925

Specification	Value
Dimensions (WxDxH)	482.6 x 445 x 770 mm
Mac compatibility	No
Recommended operating temperature range (T-T)	10 - 35 °C
Acoustic pressure emissions	45 dB
