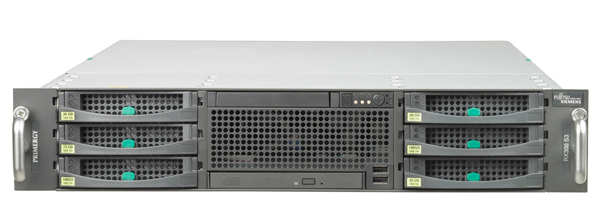

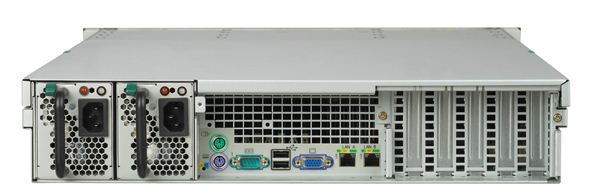

Fujitsu PRIMERGY RX300 S3 + Windows Small Business Server 2003 Premium Edition

Model PRIMERGY RX300 S3 + Windows Small Business Server 2003 Premium EditionPart no. K-FU-IR1009

82 specifications

Overview

Brand: Fujitsu
Category: Server
Model: PRIMERGY RX300 S3 + Windows Small Business Server 2003 Premium Edition
Part number: K-FU-IR1009
Also known as: Fujitsu PRIMERGY RX300 S3 + Windows Small Business 2003 Premium Edition server 146 GB Rack (2U) Intel® Xeon® L5310 1.6 GHz 2 GB DDR2-SDRAM

82 specifications in 12 groups

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Xeon®
Processor model	L5310
Processor frequency	1.6 GHz
Processor cores	4
Processor cache	8 MB
Motherboard chipset	Intel® 5000P
Number of processors installed	1
Thermal Design Power (TDP)	50 W
Processor cache type	L2
Bus type	FSB
CPU multiplier (bus/core ratio)	8
ECC supported by processor	No
Embedded options available	No
Execute Disable Bit	Yes
FSB Parity	Yes
Idle States	Yes
Number of Processing Die Transistors	582 M
Processing Die size	286 mm²
Processor codename	Clovertown
Processor front side bus	1066 MHz
Processor lithography	65 nm
Processor operating modes	64-bit
Processor package size	37.5 x 37.5 mm
Processor series	Intel Xeon 5300 Series
Processor socket	LGA 771 (Socket J)
Processor threads	4
Tcase	60 °C
Thermal Monitoring Technologies	Yes
Conflict-Free processor	No

Specification	Value
Network ready	Yes
Supported network protocols	10Base-T/100Base-TX/1000Base-T
Networking features	10/100 Ethernet

Specification	Value
Ethernet LAN (RJ-45) ports	2
USB 2.0 ports quantity	4
PS/2 ports quantity	2
Serial ports quantity	1
VGA (D-Sub) ports quantity	1
Expansion slots	1 x PCI Express x8 2 x PCI Express x4 2 x PCI-x

Specification	Value
Chassis type	Rack (2U)

Specification	Value
Enhanced Intel SpeedStep Technology	No
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	Yes
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	No
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Quick Sync Video Technology	No
Intel® Turbo Boost Technology	No
Intel® Wireless Display (Intel® WiDi)	No
Processor ARK ID	29774

Specification	Value
Power requirements	100 - 240 V
Power supply input frequency	50 - 60 Hz
Power consumption (typical)	600 W

Specification	Value
Operating temperature (T-T)	10 - 35 °C

Specification	Value
Certification	CE, certificado FCC Clase A, C-Tick, BSMI CNS 13438 Class A, EN 61000-3-2, VCCI Class A ITE, EN 61000-3-3, EN55024, EN55022 Class A, UL 60950 Third Edition, CB, JEIDA, IEC 60950-1, EN 60950-1, CSA C22.2 No. 60950-1-03

Specification	Value
Weight	25 kg

Specification	Value
Dimensions (WxDxH)	482.6 x 785 x 85.9 mm
Acoustic pressure emissions	53 dB
