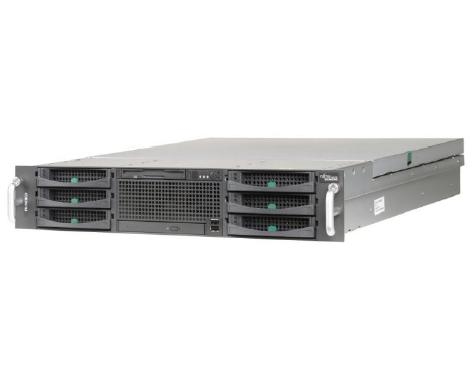

Fujitsu PRIMERGY RX300 S3
Model PRIMERGY RX300 S3Part no. LKN:CRE1024205-001EAN 4333643068059
78 specifications
- ProcessorIntel® Xeon®
- Memory2 GB
- Storage219 GB
- Weight25 kg
- Processor manufacturerIntel
- Ethernet LAN (RJ-45) ports2
Overview
- Processor
- Intel® Xeon®
- Memory
- 2 GB
- Storage
- 219 GB
- Weight
- 25 kg
- Processor manufacturer
- Intel
- Ethernet LAN (RJ-45) ports
- 2
- Brand
- Fujitsu
- Category
- Server
- Model
- PRIMERGY RX300 S3
- Part numbers
- LKN:CRE1024205-001, VFY:RX300S3-004IN, VFY:RX300S3-130NL, VFY:RX300S3-924DE, VFY:RX300S3-909DE, VFY:RX300S3-123DE +12 more
- EAN / UPC
- 4333643068059, 4333643145491, 4333643545284, 4045827741916 +1 more
- Also known as
- Fujitsu PRIMERGY RX300 S3 server Rack (2U) Intel® Xeon® 5050 3 GHz 2 GB 600 W
Specifications
78 specifications in 11 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Xeon® |
| Processor model | 5050 |
| Processor frequency | 3 GHz |
| Processor cores | 2 |
| Processor cache | 4 MB |
| Thermal Design Power (TDP) | 95 W |
| Processor cache type | L2 |
| Bus type | FSB |
| CPU multiplier (bus/core ratio) | 18 |
| ECC supported by processor | No |
| Embedded options available | No |
| Execute Disable Bit | Yes |
| FSB Parity | Yes |
| Idle States | No |
| Number of Processing Die Transistors | 376 M |
| Processing Die size | 162 mm² |
| Processor codename | Dempsey |
| Processor core voltage (AC) | 1.25 - 1.40 V |
| Processor front side bus | 667 MHz |
| Processor lithography | 65 nm |
| Processor operating modes | 64-bit |
| Processor package size | 37.5 x 37.5 mm |
| Processor series | Intel Xeon 5000 Series |
| Processor socket | LGA 771 (Socket J) |
| Processor system type | DP |
| Processor threads | 4 |
| Tcase | 67 °C |
| Thermal Monitoring Technologies | No |
| Conflict-Free processor | No |
Memory
| Specification | Value |
|---|---|
| Internal memory | 2 GB |
| Memory layout (slots x size) | 2 x 1 GB |
| Maximum internal memory | 32 GB |
Storage
| Specification | Value |
|---|---|
| HDD capacity | 219 GB |
| RAID levels | 1, 5, 10, 50 |
| Optical drive type | DVD-ROM |
Network
| Specification | Value |
|---|---|
| Networking features | Ethernet/Fast Ethernet/Gigabit Ethernet |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 2 |
| USB 2.0 ports quantity | 4 |
| PS/2 ports quantity | 2 |
| Serial ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
Design
| Specification | Value |
|---|---|
| Chassis type | Rack (2U) |
Software
| Specification | Value |
|---|---|
| Compatible operating systems | Microsoft: Windows 2003 Standard, Enterprise IA32 Edition; Microsoft: Windows 2003 Standard, Enterprise x64 Edition; Microsoft Windows 2003 Web Edition Microsoft: Windows 2000 Advanced Server; Server VMware: Infrastructure 3 SUSE: Enterprise Server 9, 10 (x86 / EM64T) Red Hat: Enterprise Linux 3 and |
Processor special features
| Specification | Value |
|---|---|
| Enhanced Intel SpeedStep Technology | Yes |
| Intel 64 | Yes |
| Intel Clear Video Technology | No |
| Intel Demand Based Switching | No |
| Intel Dual Display Capable Technology | No |
| Intel Enhanced Halt State | No |
| Intel FDI Technology | No |
| Intel Fast Memory Access | No |
| Intel Flex Memory Access | No |
| Intel Rapid Storage Technology | No |
| Intel Trusted Execution Technology | No |
| Intel VT-x with Extended Page Tables (EPT) | No |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | No |
| Intel® AES New Instructions (Intel® AES-NI) | No |
| Intel® Anti-Theft Technology (Intel® AT) | No |
| Intel® Clear Video HD Technology (Intel® CVT HD) | No |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | No |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® InTru™ 3D Technology | No |
| Intel® Insider™ | No |
| Intel® My WiFi Technology (Intel® MWT) | No |
| Intel® Quick Sync Video Technology | No |
| Intel® Turbo Boost Technology | No |
| Intel® Wireless Display (Intel® WiDi) | No |
| Processor ARK ID | 27210 |
Power
| Specification | Value |
|---|---|
| Power supply | 600 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 483 mm |
| Depth | 785 mm |
| Height | 86 mm |
| Weight | 25 kg |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 483 x 785 x 86 mm |
| Storage drive controller | SAS 3Gb/s |
| Storage drive type | Hot plug 3.5" |
