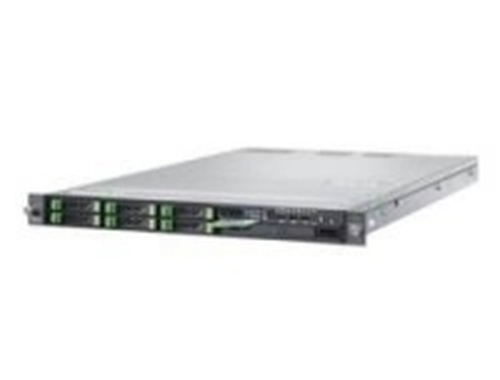

Fujitsu Primergy RX200 S5

Model Primergy RX200 S5Part no. VFY:R2005SF010DE/B4EAN 4049699121050

90 specifications

Overview

Brand: Fujitsu
Category: Server
Model: Primergy RX200 S5
Part numbers: VFY:R2005SF010DE/B4, VFY:R2005SF020DE/B5, S26361-K1272-V101, VFY:R2005SF010FR, VFY:R2005SF020NC, VFY:R2005SF010DE +8 more
EAN / UPC: 4049699121050, 4049699117022, 4049699117015, 4049699125003 +6 more
Also known as: Fujitsu PRIMERGY RX200 S5 server 0 GB Rack (1U) Intel® Xeon® 5000 Sequence E5520 2.26 GHz 4 GB DDR3-SDRAM

90 specifications in 11 groups

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Xeon® 5000 Sequence
Processor model	E5520
Processor frequency	2.26 GHz
Processor boost frequency	2.53 GHz
Processor cores	4
Processor cache	8 MB
Memory channels supported by processor	Triple
Number of processors installed	2
Thermal Design Power (TDP)	80 W
Processor cache type	Smart Cache
System bus rate	5.86 GT/s
Bus type	QPI
CPU multiplier (bus/core ratio)	17
ECC supported by processor	Yes
Embedded options available	No
Execute Disable Bit	Yes
FSB Parity	No
Idle States	Yes
Maximum internal memory supported by processor	144 GB
Memory bandwidth supported by processor (max)	25.6 GB/s
Memory clock speeds supported by processor	800,1066 MHz
Memory types supported by processor	DDR3-SDRAM
Number of Processing Die Transistors	731 M
Number of QPI links	2
Physical Address Extension (PAE)	40 bit
Processing Die size	263 mm²
Processor code	SLBFD
Processor codename	Nehalem EP
Processor lithography	45 nm
Processor operating modes	64-bit
Processor package size	42.5 x 45 mm
Processor series	Intel Xeon 5500 Series
Processor socket	Socket B (LGA 1366)
Processor system type	DP
Processor threads	8
Stepping	D0
Tcase	72 °C
Thermal Monitoring Technologies	No
Conflict-Free processor	No

Specification	Value
Network ready	Yes
Networking features	Fast Ethernet

Specification	Value
PCI Express x4 slots	1
PCI Express x8 slots	2

Specification	Value
Chassis type	Rack (1U)

Specification	Value
CPU configuration (max)	2
Enhanced Intel SpeedStep Technology	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	Yes
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	Yes
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Quick Sync Video Technology	No
Intel® Smart Cache	Yes
Intel® Turbo Boost Technology	1.0
Intel® Wireless Display (Intel® WiDi)	No
Processor ARK ID	40200

Specification	Value
Redundant power supply (RPS) support	No

Specification	Value
Weight	16 kg

Specification	Value
Disk array controller	LSI MegaRAID SAS1078
Dimensions (WxDxH)	765 x 4316 x 43 mm
