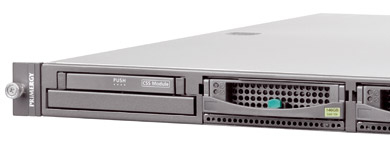

Fujitsu Primergy RX100 S5 - E3110
Model Primergy RX100 S5 - E3110Part no. LKN:R1005SS004DE
82 specifications
- ProcessorIntel® Xeon®
- Memory2 GB
- Storage500 GB
- Weight12 kg
- Processor manufacturerIntel
- Ethernet LAN (RJ-45) ports2
Overview
- Processor
- Intel® Xeon®
- Memory
- 2 GB
- Storage
- 500 GB
- Weight
- 12 kg
- Processor manufacturer
- Intel
- Ethernet LAN (RJ-45) ports
- 2
- Brand
- Fujitsu
- Category
- Server
- Model
- Primergy RX100 S5 - E3110
- Part numbers
- LKN:R1005SS004DE, VFY:R1005SF040DE/B10, VFY:R1005SF040DE/B12, VFY:R1005SF040DE/B11, VFY:R1005SF040DE/B9
- Also known as
- Fujitsu PRIMERGY RX100 S5 - E3110 server 500 GB Rack (1U) Intel® Xeon® 3 GHz 2 GB DDR2-SDRAM 350 W
Specifications
82 specifications in 10 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Xeon® |
| Processor model | E3110 |
| Processor frequency | 3 GHz |
| Processor cores | 2 |
| Processor cache | 6 MB |
| Number of processors installed | 1 |
| Thermal Design Power (TDP) | 65 W |
| Processor cache type | L2 |
| Bus type | FSB |
| CPU multiplier (bus/core ratio) | 9 |
| ECC supported by processor | No |
| Embedded options available | No |
| Execute Disable Bit | Yes |
| FSB Parity | No |
| Idle States | Yes |
| Number of Processing Die Transistors | 410 M |
| Processing Die size | 107 mm² |
| Processor code | SLAPM |
| Processor codename | Wolfdale |
| Processor core voltage (AC) | 1.225 - 0.956 V |
| Processor front side bus | 1333 MHz |
| Processor lithography | 45 nm |
| Processor operating modes | 64-bit |
| Processor package size | 37.5 x 37.5 mm |
| Processor series | Intel Xeon 3100 Series |
| Processor socket | LGA 775 (Socket T) |
| Processor system type | Up |
| Processor threads | 2 |
| Stepping | C0 |
| Tcase | 72.4 °C |
| Thermal Monitoring Technologies | Yes |
| Conflict-Free processor | No |
Memory
| Specification | Value |
|---|---|
| Internal memory | 2 GB |
| Internal memory type | DDR2-SDRAM |
| Memory clock speed | 800 MHz |
| Memory layout (slots x size) | 1 x 2 GB |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 500 GB |
| Number of HDDs installed | 1 |
| Hot-swap | Yes |
| Optical drive type | DVD-RW |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 2 |
| USB 2.0 ports quantity | 5 |
| PS/2 ports quantity | 2 |
| Serial ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
Design
| Specification | Value |
|---|---|
| Chassis type | Rack (1U) |
Processor special features
| Specification | Value |
|---|---|
| Enhanced Intel SpeedStep Technology | Yes |
| Intel 64 | Yes |
| Intel Clear Video Technology | No |
| Intel Demand Based Switching | No |
| Intel Dual Display Capable Technology | No |
| Intel Enhanced Halt State | Yes |
| Intel FDI Technology | No |
| Intel Fast Memory Access | No |
| Intel Flex Memory Access | No |
| Intel Rapid Storage Technology | No |
| Intel Trusted Execution Technology | No |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | No |
| Intel® AES New Instructions (Intel® AES-NI) | No |
| Intel® Anti-Theft Technology (Intel® AT) | No |
| Intel® Clear Video HD Technology (Intel® CVT HD) | No |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | No |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Intel® InTru™ 3D Technology | No |
| Intel® Insider™ | No |
| Intel® My WiFi Technology (Intel® MWT) | No |
| Intel® Quick Sync Video Technology | No |
| Intel® Turbo Boost Technology | No |
| Intel® Wireless Display (Intel® WiDi) | No |
| Processor ARK ID | 34694 |
Power
| Specification | Value |
|---|---|
| Redundant power supply (RPS) support | No |
| Power supply | 350 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 15 - 35 °C |
| Operating relative humidity (H-H) | 10 - 85% |
Certificates
| Specification | Value |
|---|---|
| Certification | GS, CE Class A, CSAc/us, ULc/us, Class A, CB, RoHS, WEEE, VCCI, CCC, C-Tick, BSMI |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 560 mm |
| Depth | 430 mm |
| Height | 42.5 mm |
| Weight | 12 kg |
