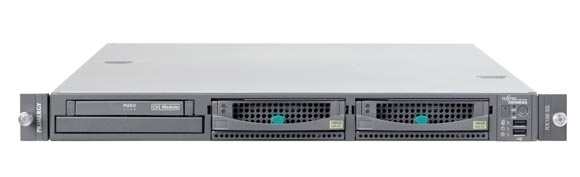

Fujitsu PRIMERGY R100 S5
Model PRIMERGY R100 S5Part no. VFY:R1005SF040ITEAN 4049699228308
86 specifications
- ProcessorIntel® Xeon®
- Memory2 GB
- Storage0 GB
- Weight12 kg
- Processor manufacturerIntel
- Network readyYes
Overview
- Processor
- Intel® Xeon®
- Memory
- 2 GB
- Storage
- 0 GB
- Weight
- 12 kg
- Processor manufacturer
- Intel
- Network ready
- Yes
- Brand
- Fujitsu
- Category
- Server
- Model
- PRIMERGY R100 S5
- Part number
- VFY:R1005SF040IT
- EAN / UPC
- 4049699228308
- Also known as
- Fujitsu PRIMERGY R100 S5 server 0 GB Rack (1U) Intel® Xeon® X3220 2.4 GHz 2 GB DDR2-SDRAM 350 W
Specifications
86 specifications in 12 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Xeon® |
| Processor model | X3220 |
| Processor frequency | 2.4 GHz |
| Processor cores | 4 |
| Processor cache | 8 MB |
| Motherboard chipset | Intel® 3210 |
| Number of processors installed | 1 |
| Thermal Design Power (TDP) | 105 W |
| Processor cache type | L2 |
| Bus type | FSB |
| CPU multiplier (bus/core ratio) | 9 |
| ECC supported by processor | No |
| Embedded options available | No |
| Execute Disable Bit | Yes |
| FSB Parity | No |
| Idle States | Yes |
| Number of Processing Die Transistors | 582 M |
| Physical Address Extension (PAE) | 32 bit |
| Processing Die size | 286 mm² |
| Processor code | SL9UP |
| Processor codename | Kentsfield |
| Processor front side bus | 1066 MHz |
| Processor lithography | 65 nm |
| Processor operating modes | 64-bit |
| Processor package size | 37.5 x 37.5 mm |
| Processor series | Intel Xeon 3200 Series |
| Processor socket | LGA 775 (Socket T) |
| Processor threads | 4 |
| Stepping | B3 |
| Tcase | 62.2 °C |
| Thermal Monitoring Technologies | Yes |
| Conflict-Free processor | No |
Memory
| Specification | Value |
|---|---|
| Internal memory | 2 GB |
| Internal memory type | DDR2-SDRAM |
| ECC | Yes |
| Memory clock speed | 800 MHz |
| Memory slots | 4 |
| Maximum internal memory | 8 GB |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 0 GB |
| Number of HDDs installed | 0 |
| Hot-swap | No |
| Optical drive type | DVD-RW |
Network
| Specification | Value |
|---|---|
| Network ready | Yes |
| Networking features | Gigabit Ethernet |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 3 |
| USB 2.0 ports quantity | 5 |
| PS/2 ports quantity | 2 |
| Serial ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x8 slots | 2 |
Design
| Specification | Value |
|---|---|
| Chassis type | Rack (1U) |
Software
| Specification | Value |
|---|---|
| Compatible operating systems | Microsoft Windows, SUSE & Red Hat Linux |
Processor special features
| Specification | Value |
|---|---|
| Enhanced Intel SpeedStep Technology | Yes |
| Intel 64 | Yes |
| Intel Clear Video Technology | No |
| Intel Demand Based Switching | No |
| Intel Dual Display Capable Technology | No |
| Intel Enhanced Halt State | Yes |
| Intel FDI Technology | No |
| Intel Fast Memory Access | No |
| Intel Flex Memory Access | No |
| Intel Rapid Storage Technology | No |
| Intel Trusted Execution Technology | No |
| Intel VT-x with Extended Page Tables (EPT) | No |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | No |
| Intel® AES New Instructions (Intel® AES-NI) | No |
| Intel® Anti-Theft Technology (Intel® AT) | No |
| Intel® Clear Video HD Technology (Intel® CVT HD) | No |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | No |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Intel® InTru™ 3D Technology | No |
| Intel® Insider™ | No |
| Intel® My WiFi Technology (Intel® MWT) | No |
| Intel® Quick Sync Video Technology | No |
| Intel® Turbo Boost Technology | No |
| Intel® Wireless Display (Intel® WiDi) | No |
| Processor ARK ID | 28034 |
Power
| Specification | Value |
|---|---|
| Redundant power supply (RPS) support | No |
| Power supply | 350 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 430 mm |
| Depth | 560 mm |
| Height | 42.5 mm |
| Weight | 12 kg |
Other features
| Specification | Value |
|---|---|
| Drive bays | 1x 5.25/0.5", 1x 3.5/0.5" |
