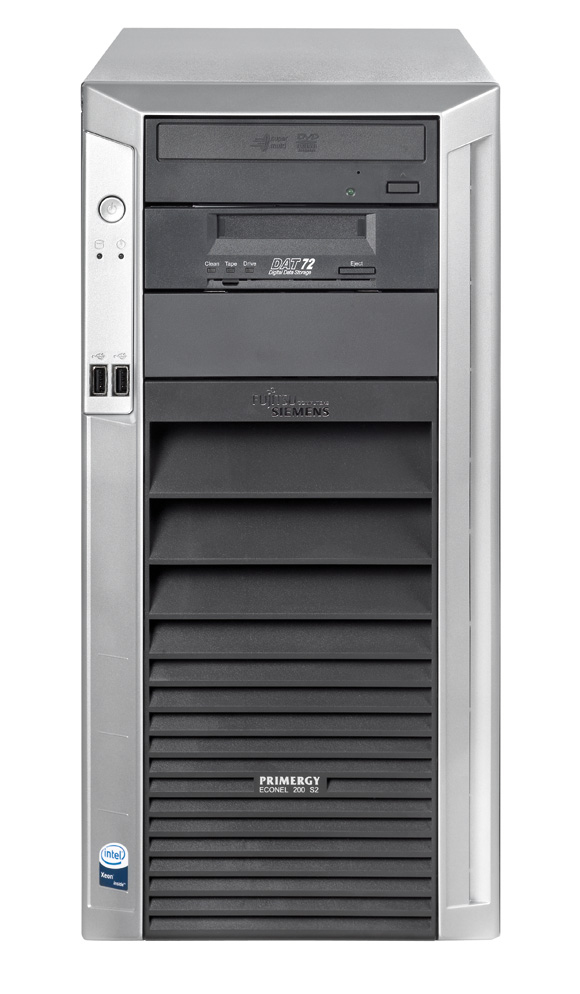

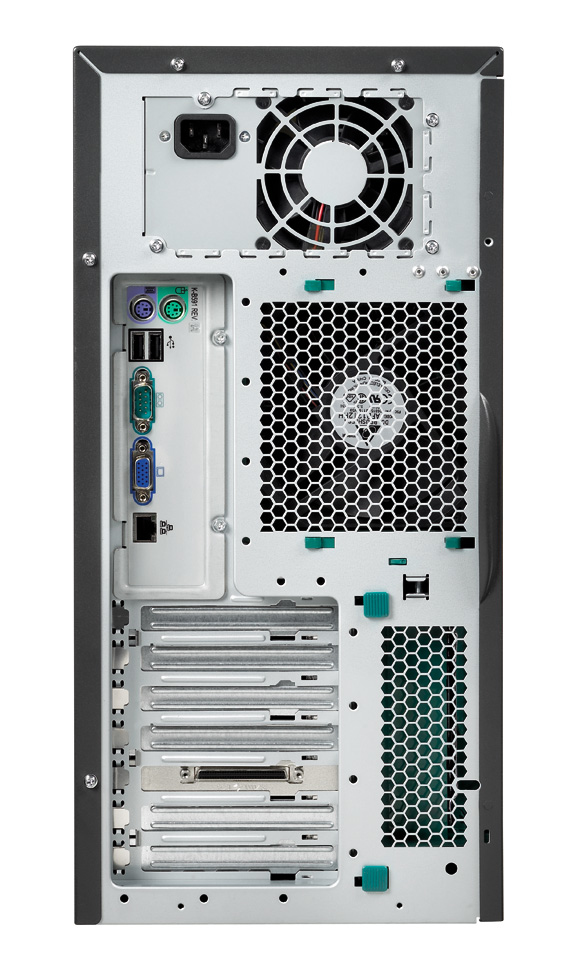

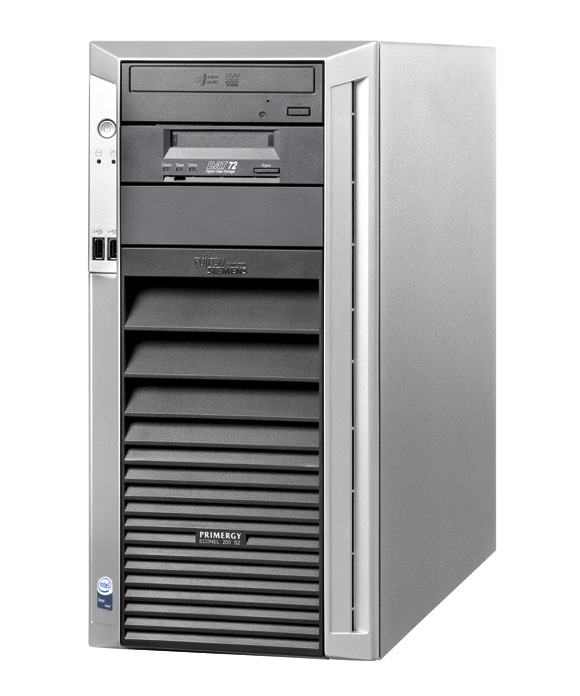

Fujitsu PRIMERGY Econel 200 S2a
Model PRIMERGY Econel 200 S2aPart no. VFY:ECO200S2-012GBEAN 4333643043230
85 specifications
- ProcessorIntel® Xeon® 5000 Sequence
- Memory1 GB
- Storage2 TB
- Weight21 kg
- Processor manufacturerIntel
- Maximum graphics card memory32 MB
Overview
- Processor
- Intel® Xeon® 5000 Sequence
- Memory
- 1 GB
- Storage
- 2 TB
- Weight
- 21 kg
- Processor manufacturer
- Intel
- Maximum graphics card memory
- 32 MB
- Brand
- Fujitsu
- Category
- Server
- Model
- PRIMERGY Econel 200 S2a
- Part numbers
- VFY:ECO200S2-012GB, VFY:ECO200S2-904GB, VFY:ECO200S2-911GB
- EAN / UPC
- 4333643043230, 4333643155674
- Also known as
- Fujitsu PRIMERGY Econel 200 S2a server 2 TB Tower Intel® Xeon® 5000 Sequence 5110 1.6 GHz 1 GB DDR2-SDRAM 560 W
Specifications
85 specifications in 11 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Xeon® 5000 Sequence |
| Processor model | 5110 |
| Processor frequency | 1.6 GHz |
| Processor cores | 2 |
| Processor cache | 4 MB |
| Motherboard chipset | Intel® 5000V |
| Number of processors installed | 1 |
| Thermal Design Power (TDP) | 65 W |
| Processor cache type | L2 |
| Bus type | FSB |
| CPU multiplier (bus/core ratio) | 6 |
| ECC supported by processor | No |
| Embedded options available | No |
| Execute Disable Bit | Yes |
| FSB Parity | Yes |
| Idle States | Yes |
| Maximum number of SMP processors | 2 |
| Number of Processing Die Transistors | 291 M |
| Processing Die size | 143 mm² |
| Processor codename | Woodcrest |
| Processor front side bus | 1066 MHz |
| Processor lithography | 65 nm |
| Processor operating modes | 64-bit |
| Processor package size | 37.5 x 37.5 mm |
| Processor series | Intel Xeon 5100 Series |
| Processor socket | LGA 771 (Socket J) |
| Processor threads | 2 |
| Tcase | 65 °C |
| Thermal Monitoring Technologies | Yes |
| Conflict-Free processor | No |
Memory
| Specification | Value |
|---|---|
| Internal memory | 1 GB |
| Internal memory type | DDR2-SDRAM |
| ECC | Yes |
| Memory layout (slots x size) | 2 x 0.5 GB |
| Maximum internal memory | 8 GB |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 2 TB |
| Number of HDDs installed | 1 |
| HDD capacity | 160 GB |
| HDD interface | Serial ATA |
| RAID levels | 1, 10 |
| Hot-swap | No |
| Optical drive type | DVD-ROM |
Graphics
| Specification | Value |
|---|---|
| Maximum graphics card memory | 32 MB |
Network
| Specification | Value |
|---|---|
| Networking features | Gigabit Ethernet |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| USB 2.0 ports quantity | 4 |
| PS/2 ports quantity | 2 |
| Serial ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
Design
| Specification | Value |
|---|---|
| Chassis type | Tower |
Processor special features
| Specification | Value |
|---|---|
| Enhanced Intel SpeedStep Technology | Yes |
| Intel 64 | Yes |
| Intel Clear Video Technology | No |
| Intel Demand Based Switching | No |
| Intel Dual Display Capable Technology | No |
| Intel Enhanced Halt State | Yes |
| Intel FDI Technology | No |
| Intel Fast Memory Access | No |
| Intel Flex Memory Access | No |
| Intel Rapid Storage Technology | No |
| Intel Trusted Execution Technology | No |
| Intel VT-x with Extended Page Tables (EPT) | No |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | No |
| Intel® AES New Instructions (Intel® AES-NI) | No |
| Intel® Anti-Theft Technology (Intel® AT) | No |
| Intel® Clear Video HD Technology (Intel® CVT HD) | No |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | No |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Intel® InTru™ 3D Technology | No |
| Intel® Insider™ | No |
| Intel® My WiFi Technology (Intel® MWT) | No |
| Intel® Quick Sync Video Technology | No |
| Intel® Turbo Boost Technology | No |
| Intel® Wireless Display (Intel® WiDi) | No |
| Processor ARK ID | 27214 |
Power
| Specification | Value |
|---|---|
| Power requirements | 100 - 240 VAC |
| Power supply | 560 W |
| Power supply input frequency | 50 - 60 Hz |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 215 mm |
| Depth | 520 mm |
| Height | 446 mm |
| Weight | 21 kg |
Other features
| Specification | Value |
|---|---|
| Graphics card | ES1000 |
