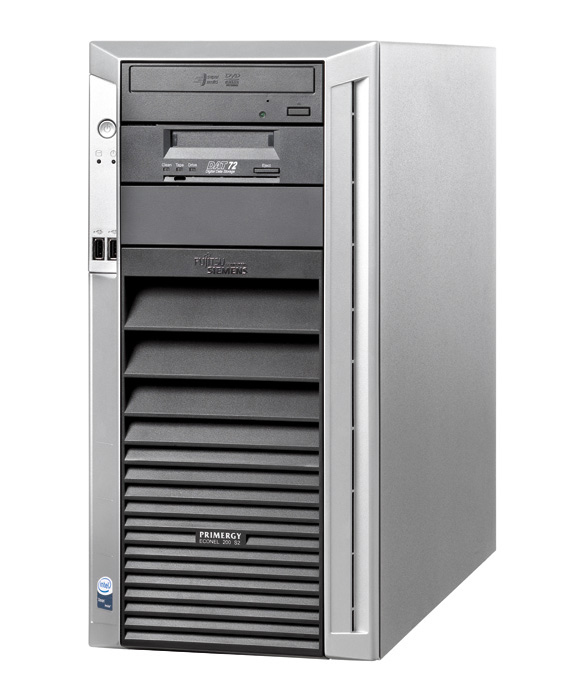

Fujitsu PRIMERGY Econel 200 + Windows Small Business Server 2003 Standard Edition

Model PRIMERGY Econel 200 + Windows Small Business Server 2003 Standard EditionPart no. K-FU-IR975

91 specifications

Overview

Brand: Fujitsu
Category: Server
Model: PRIMERGY Econel 200 + Windows Small Business Server 2003 Standard Edition
Part number: K-FU-IR975
Also known as: Fujitsu PRIMERGY Econel 200 + Windows Small Business 2003 Standard Edition server 160 GB Tower Intel® Xeon® 5000 Sequence E5310 1.6 GHz 1 GB DDR2-SDRAM 560 W

91 specifications in 13 groups

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Xeon® 5000 Sequence
Processor model	E5310
Processor frequency	1.6 GHz
Processor cores	4
Processor cache	8 MB
Motherboard chipset	Intel® 5000V
Number of processors installed	1
Thermal Design Power (TDP)	80 W
Processor cache type	L2
Bus type	FSB
CPU multiplier (bus/core ratio)	6
ECC supported by processor	No
Embedded options available	No
Execute Disable Bit	Yes
FSB Parity	Yes
Idle States	Yes
Maximum number of SMP processors	2
Number of Processing Die Transistors	582 M
Physical Address Extension (PAE)	32 bit
Processing Die size	286 mm²
Processor codename	Clovertown
Processor front side bus	1066 MHz
Processor lithography	65 nm
Processor operating modes	64-bit
Processor package size	37.5 x 37.5 mm
Processor series	Intel Xeon 5300 Series
Processor socket	LGA 771 (Socket J)
Processor threads	4
Tcase	66 °C
Thermal Monitoring Technologies	Yes
Conflict-Free processor	No

Specification	Value
Maximum graphics card memory	32 MB

Specification	Value
Network ready	Yes
Supported network protocols	10Base-T/100Base-TX/1000Base-T
Networking features	10/100/1000 Gigabit Ethernet

Specification	Value
Ethernet LAN (RJ-45) ports	1
USB 2.0 ports quantity	6
PS/2 ports quantity	2
Serial ports quantity	1
VGA (D-Sub) ports quantity	1
Expansion slots	1 x PCI Express x16, 1 x PCI Express x8, 1 x PCI, 3 x PCI-X

Specification	Value
Chassis type	Tower

Specification	Value
Enhanced Intel SpeedStep Technology	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	Yes
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	No
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Quick Sync Video Technology	No
Intel® Turbo Boost Technology	No
Intel® Wireless Display (Intel® WiDi)	No
Processor ARK ID	28030

Specification	Value
Power requirements	100 - 240V
Power supply	560 W
Power supply input frequency	50 - 60 Hz
Power consumption (typical)	453 W

Specification	Value
Operating temperature (T-T)	10 - 35 °C

Specification	Value
Certification	CE, FCC Class A, CSA, EN 60950, EN 61000-3-2, IEC 60950, EN 61000-3-3, EN55024, UL 60950 Third Edition, EN55022 Class B, CB, CSA C22.2 No. 60950 Third Edition

Specification	Value
Weight	21 kg
