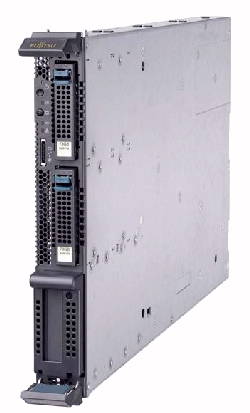

Fujitsu Primergy BX620 S5
Model Primergy BX620 S5Part no. VFY:B6205SF010DEEAN 4049699145537
110 specifications
- ProcessorIntel® Xeon® 5000 Sequence
- Memory4 GB
- Storage0 GB
- Weight7.5 kg
- Processor manufacturerIntel
- Maximum storage capacity1 TB
Overview
- Processor
- Intel® Xeon® 5000 Sequence
- Memory
- 4 GB
- Storage
- 0 GB
- Weight
- 7.5 kg
- Processor manufacturer
- Intel
- Maximum storage capacity
- 1 TB
- Brand
- Fujitsu
- Category
- Server
- Model
- Primergy BX620 S5
- Part number
- VFY:B6205SF010DE
- EAN / UPC
- 4049699145537
- Also known as
- Fujitsu PRIMERGY BX620 S5 server 0 GB Rack (1U) Intel® Xeon® 5000 Sequence E5520 2.26 GHz 4 GB DDR3-SDRAM 331 W
Specifications
110 specifications in 15 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Xeon® 5000 Sequence |
| Processor model | E5520 |
| Processor frequency | 2.26 GHz |
| Processor boost frequency | 2.53 GHz |
| Processor cores | 4 |
| Processor cache | 8 MB |
| Motherboard chipset | Intel® 5500 |
| Memory channels supported by processor | Triple |
| Number of processors installed | 1 |
| Thermal Design Power (TDP) | 80 W |
| Processor cache type | Smart Cache |
| System bus rate | 5.86 GT/s |
| Bus type | QPI |
| CPU multiplier (bus/core ratio) | 17 |
| ECC supported by processor | Yes |
| Embedded options available | No |
| Execute Disable Bit | Yes |
| FSB Parity | No |
| Idle States | Yes |
| Maximum internal memory supported by processor | 144 GB |
| Memory bandwidth supported by processor (max) | 25.6 GB/s |
| Memory clock speeds supported by processor | 800,1066 MHz |
| Memory types supported by processor | DDR3-SDRAM |
| Number of Processing Die Transistors | 731 M |
| Number of QPI links | 2 |
| Physical Address Extension (PAE) | 40 bit |
| Processing Die size | 263 mm² |
| Processor code | SLBFD |
| Processor codename | Nehalem EP |
| Processor lithography | 45 nm |
| Processor operating modes | 64-bit |
| Processor package size | 42.5 x 45 mm |
| Processor series | Intel Xeon 5500 Series |
| Processor socket | Socket B (LGA 1366) |
| Processor system type | DP |
| Processor threads | 8 |
| Stepping | D0 |
| Tcase | 72 °C |
| Thermal Monitoring Technologies | No |
| Conflict-Free processor | No |
Memory
| Specification | Value |
|---|---|
| Internal memory | 4 GB |
| Internal memory type | DDR3-SDRAM |
| Memory clock speed | 1333 MHz |
| Memory layout (slots x size) | 1 x 4 GB |
| Memory slots | 12x DIMM |
| Maximum internal memory | 96 GB |
Storage
| Specification | Value |
|---|---|
| Maximum storage capacity | 1 TB |
| Total storage capacity | 0 GB |
| Number of HDDs installed | 0 |
| HDD size | 2.5" |
| Number of HDDs supported | 2 |
| RAID support | Yes |
| Hot-Plug support | Yes |
| Hot-swap | Yes |
| Optical drive type | No |
Network
| Specification | Value |
|---|---|
| Supported network protocols | TCP/IP |
| Ethernet LAN | Yes |
| LAN controller | Intel® 82575EB |
| Networking features | Gigabyte Ethernet |
| Wake-on-LAN ready | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 6 |
| USB 2.0 ports quantity | 2 |
| PS/2 ports quantity | 0 |
| Serial ports quantity | 0 |
| VGA (D-Sub) ports quantity | 1 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x8 slots | 1 |
Design
| Specification | Value |
|---|---|
| Chassis type | Rack (1U) |
Software
| Specification | Value |
|---|---|
| Compatible operating systems | Windows Server 2008 R2 Windows Server 2008 Windows Storage Server 2008 Windows Server 2003 R2 Novell SUSE Linux Enterprise Server Red Hat Enterprise Linux Citrix XenServer VMware Infrastructure |
| Bundled software | SV Installation Manager SV Operation Manager SV RAID Manager SV Update Management SV Power Management SV Agents |
Processor special features
| Specification | Value |
|---|---|
| CPU configuration (max) | 2 |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel 64 | Yes |
| Intel Clear Video Technology | No |
| Intel Demand Based Switching | Yes |
| Intel Dual Display Capable Technology | No |
| Intel Enhanced Halt State | Yes |
| Intel FDI Technology | No |
| Intel Fast Memory Access | No |
| Intel Flex Memory Access | No |
| Intel Rapid Storage Technology | No |
| Intel Trusted Execution Technology | No |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | No |
| Intel® Anti-Theft Technology (Intel® AT) | No |
| Intel® Clear Video HD Technology (Intel® CVT HD) | No |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | No |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® InTru™ 3D Technology | No |
| Intel® Insider™ | No |
| Intel® My WiFi Technology (Intel® MWT) | No |
| Intel® Quick Sync Video Technology | No |
| Intel® Smart Cache | Yes |
| Intel® Turbo Boost Technology | 1.0 |
| Intel® Wireless Display (Intel® WiDi) | No |
| Processor ARK ID | 40200 |
Power
| Specification | Value |
|---|---|
| Redundant power supply (RPS) support | No |
| Number of power supply units | 1 |
| Power supply | 331 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 10 - 85% |
Certificates
| Specification | Value |
|---|---|
| Compliance industry standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab |
| Certification | GS CE CSAc/us ULc/us ICES-003 FCC CB RoHS WEEE VCI C-Tick BSMI |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | ENERGY STAR |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 286 mm |
| Depth | 470 mm |
| Height | 43 mm |
| Weight | 7.5 kg |
Other features
| Specification | Value |
|---|---|
| iSCSI support | Yes |
