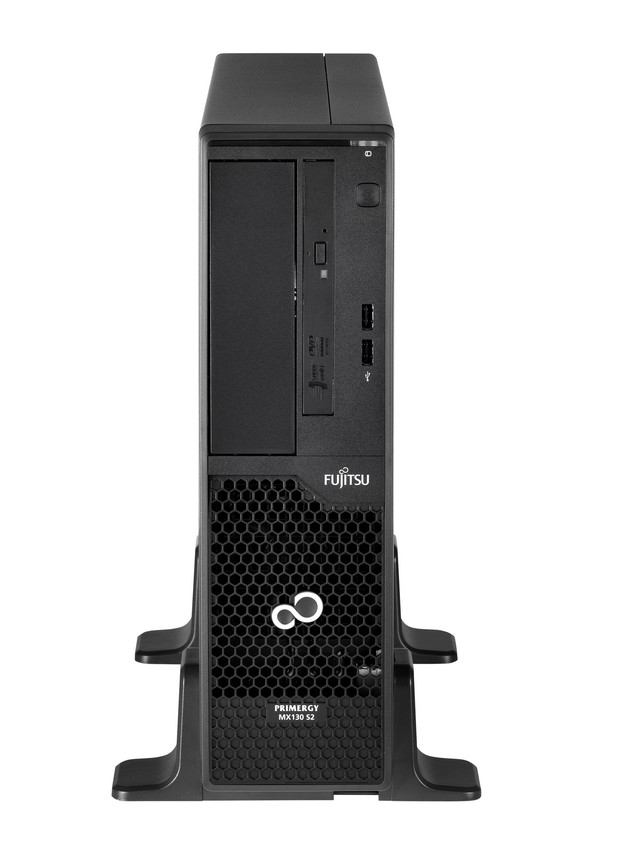

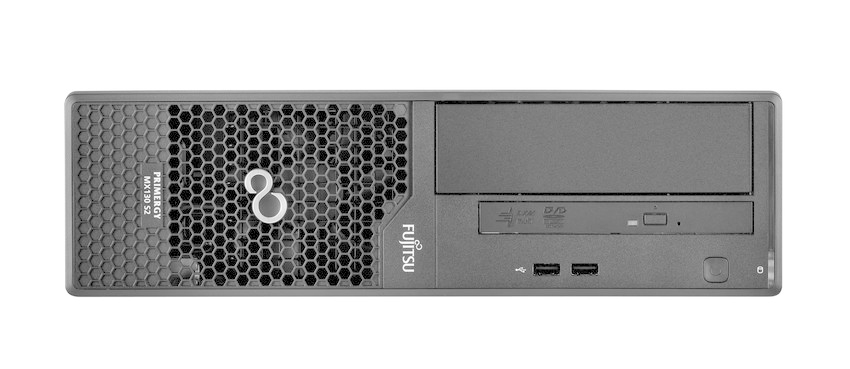

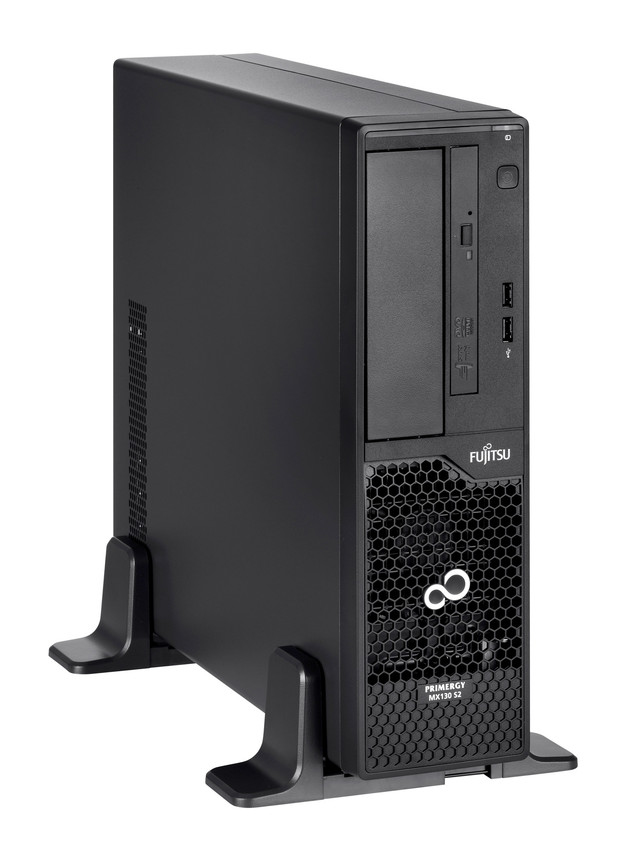

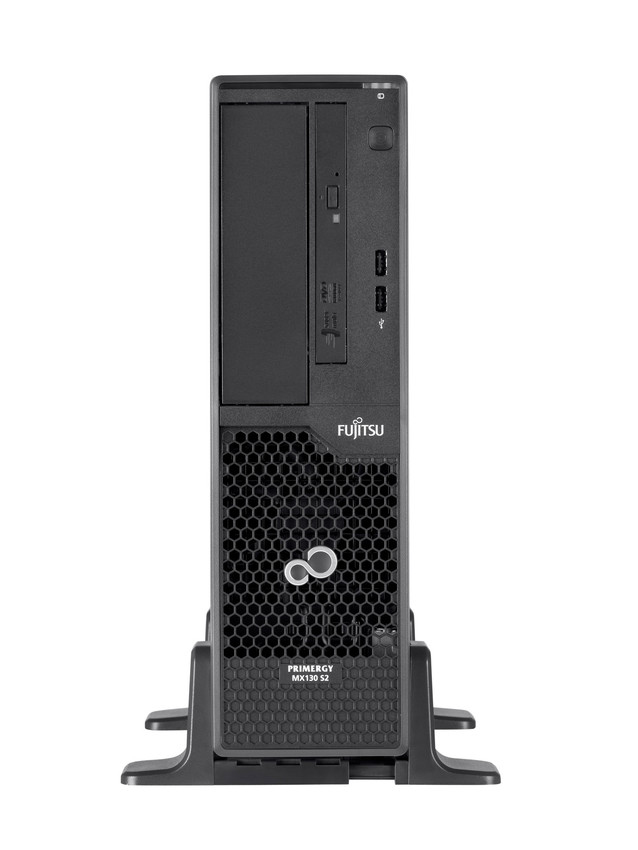

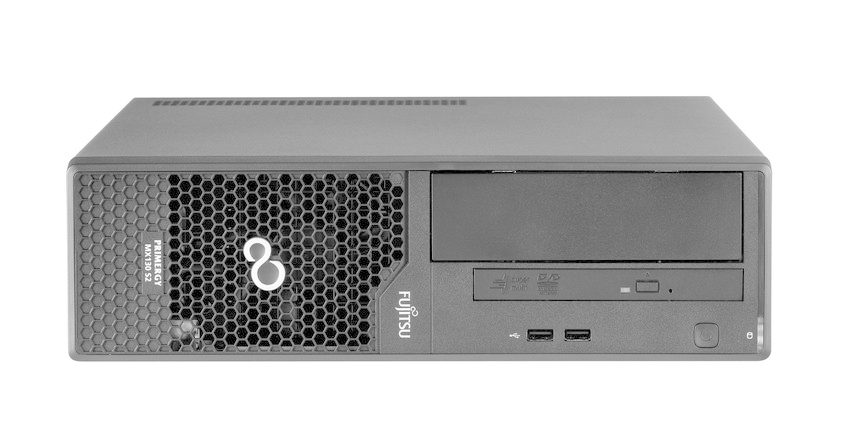

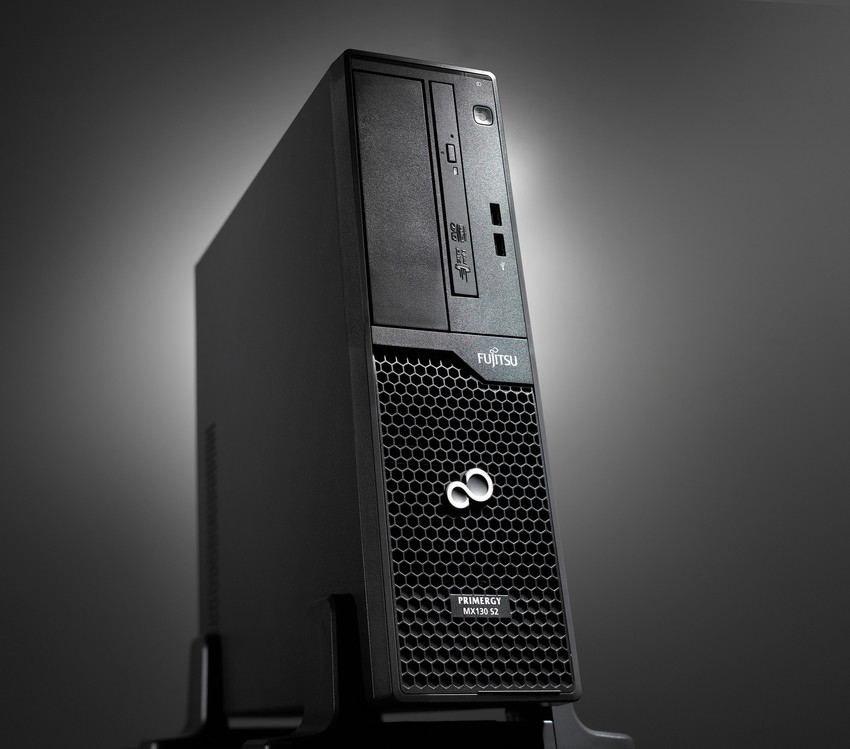

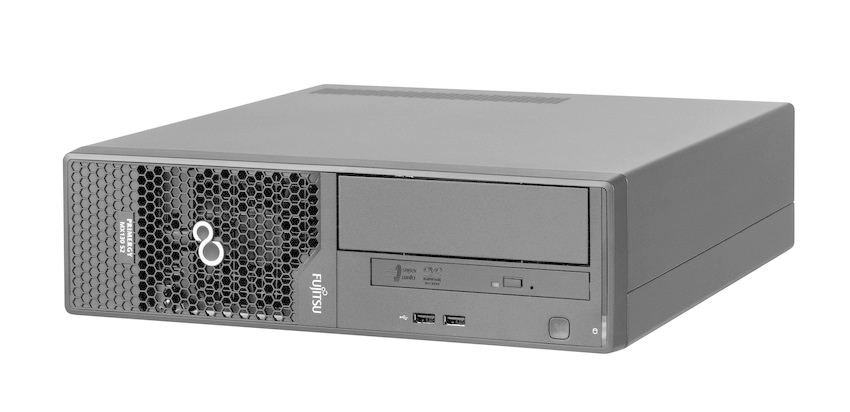

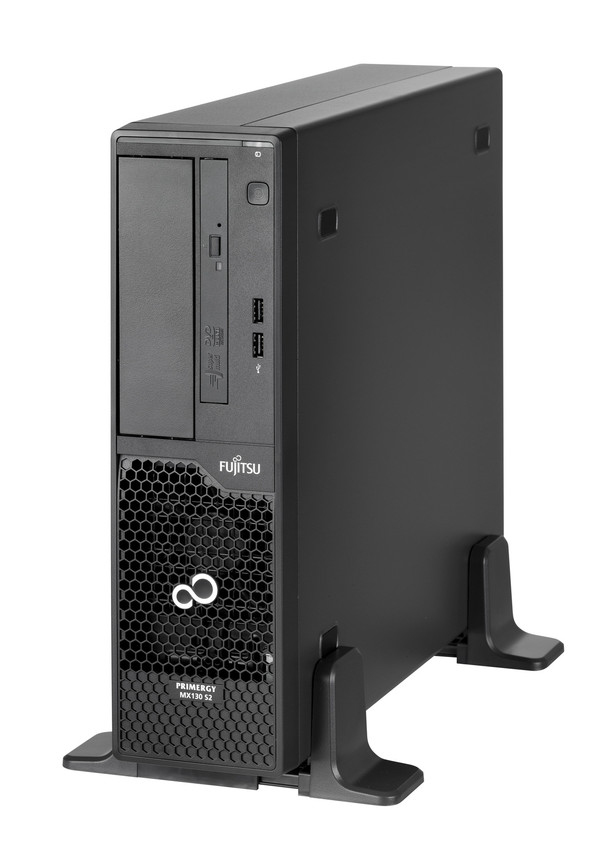

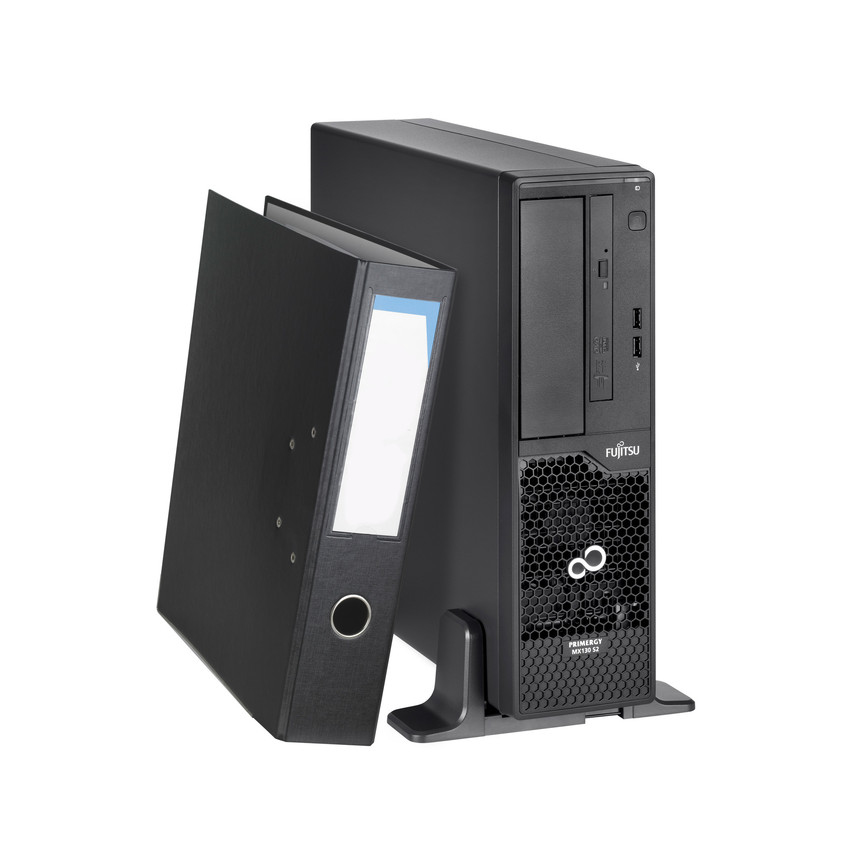

Fujitsu MX130 S2 + CELVIN NAS Server Q800
Model MX130 S2 + CELVIN NAS Server Q800Part no. VFY:M1302SC040IN + S26341-F103-L801
122 specifications
- ProcessorIntel® Celeron®
- Memory2 GB
- Storage1 TB
- Noise20 dB
- OSNo
- Weight10 kg
Overview
- Processor
- Intel® Celeron®
- Memory
- 2 GB
- Storage
- 1 TB
- Noise
- 20 dB
- OS
- No
- Weight
- 10 kg
- Brand
- Fujitsu
- Category
- Server
- Model
- MX130 S2 + CELVIN NAS Server Q800
- Part numbers
- VFY:M1302SC040IN + S26341-F103-L801, VFY:M1302SC040IN + S26341-F103-L840, VFY:M1302SC040IN + S26341-F103-L842
- Also known as
- Fujitsu PRIMERGY MX130 S2 + CELVIN NAS Q800 server 1 TB Desktop Intel® Celeron® 220 1.2 GHz 2 GB DDR3-SDRAM 250 W
Specifications
122 specifications in 16 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Celeron® |
| Processor model | 220 |
| Processor frequency | 1.2 GHz |
| Processor cores | 1 |
| Processor cache | 0.512 MB |
| Motherboard chipset | AMD 880G |
| Number of processors installed | 1 |
| Thermal Design Power (TDP) | 18.2, 19 |
| Processor cache type | L2 |
| Bus type | FSB |
| CPU multiplier (bus/core ratio) | 12 |
| ECC supported by processor | No |
| Embedded options available | No |
| Execute Disable Bit | Yes |
| FSB Parity | No |
| Idle States | Yes |
| Number of Processing Die Transistors | 105 M |
| Processing Die size | 77 mm² |
| Processor code | SLAF2 |
| Processor codename | Conroe |
| Processor front side bus | 533 MHz |
| Processor lithography | 65 nm |
| Processor operating modes | 64-bit |
| Processor package size | 35 x 35 mm |
| Processor series | Intel Celeron Processor 200 Series for Desktop |
| Processor socket | Socket 479 |
| Processor threads | 1 |
| Stepping | A1 |
| Thermal Monitoring Technologies | Yes |
| Tjunction | 100 °C |
| Conflict-Free processor | No |
Memory
| Specification | Value |
|---|---|
| Internal memory | 2 GB |
| Internal memory type | DDR3-SDRAM |
| ECC | Yes |
| Memory clock speed | 1333 MHz |
| Memory layout (slots x size) | 1 x 2 GB |
| Memory slots | 4x DIMM |
| Maximum internal memory | 16 GB |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 1 TB |
| Number of HDDs installed | 2 |
| HDD capacity | 500 GB |
| HDD interface | Serial ATA |
| HDD speed | 7200 RPM |
| HDD size | 3.5" |
| Number of HDDs supported | 4 |
| RAID support | Yes |
| RAID levels | 0, 1, 10 |
| Hot-swap | No |
| Internal drive bays | 4x 3.5" |
| Optical drive type | DVD-RW |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| Maximum graphics card memory | 2811 MB |
Network
| Specification | Value |
|---|---|
| Wi-Fi | No |
| Bluetooth | No |
| Cabling technology | 10/100/1000Base-T(X) |
| Ethernet LAN | Yes |
| Networking features | Gigabit Ethernet |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| USB 2.0 ports quantity | 12 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| DisplayPorts quantity | 0 |
| Dual Link DVI | Yes |
| Firewire (IEEE 1394) ports | 0 |
| Integrated SAS ports | 0 |
| Mini DisplayPorts quantity | 0 |
| PS/2 ports quantity | 2 |
| Parallel ports quantity | 0 |
| Serial ports quantity | 1 |
| VGA (D-Sub) ports quantity | 0 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 slots | 1 |
| PCI Express x4 slots | 1 |
| PCI Express x16 slots | 1 |
| PCI Express slots version | 1.0, 2.0 |
| PCI slots | 1 |
Design
| Specification | Value |
|---|---|
| Chassis type | Desktop |
| Redundant fans support | No |
Performance
| Specification | Value |
|---|---|
| Noise level | 20 dB |
Software
| Specification | Value |
|---|---|
| Operating system installed | No |
| Compatible operating systems | Microsoft Hyper-V Server 2012, Microsoft Windows Server 2012 Datacenter, Microsoft Windows Server 2012 Standard, Microsoft Windows Server 2012 Foundation, Microsoft Windows Storage Server 2012 Standard, Microsoft Hyper-V Server 2008 R2, Microsoft Windows Server 2008 R2 Standard, Microsoft Windows Se |
Processor special features
| Specification | Value |
|---|---|
| Enhanced Intel SpeedStep Technology | No |
| Intel 64 | Yes |
| Intel Clear Video Technology | No |
| Intel Demand Based Switching | No |
| Intel Dual Display Capable Technology | No |
| Intel Enhanced Halt State | Yes |
| Intel FDI Technology | No |
| Intel Fast Memory Access | No |
| Intel Flex Memory Access | No |
| Intel Rapid Storage Technology | No |
| Intel Trusted Execution Technology | No |
| Intel VT-x with Extended Page Tables (EPT) | No |
| Intel Virtualization Technology (VT-x) | No |
| Intel Virtualization Technology for Directed I/O (VT-d) | No |
| Intel® AES New Instructions (Intel® AES-NI) | No |
| Intel® Anti-Theft Technology (Intel® AT) | No |
| Intel® Clear Video HD Technology (Intel® CVT HD) | No |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | No |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Intel® InTru™ 3D Technology | No |
| Intel® Insider™ | No |
| Intel® My WiFi Technology (Intel® MWT) | No |
| Intel® Quick Sync Video Technology | No |
| Intel® Turbo Boost Technology | No |
| Intel® Wireless Display (Intel® WiDi) | No |
| Processor ARK ID | 33102 |
Power
| Specification | Value |
|---|---|
| Redundant power supply (RPS) support | No |
| Power supply type | AC/DC |
| Number of power supply units | 1 |
| Power requirements | AC 100 - 240V@50/60Hz |
| Power supply | 250 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 10 - 35 °C |
Certificates
| Specification | Value |
|---|---|
| Compliance industry standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab |
| Certification | GS, CE, FCC A, CSAc/us, CB, RoHS, WEEE, VCCI, GOST-R, KC, CCC, C-Tick, BSMI, SASO |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 98 mm |
| Depth | 383 mm |
| Height | 340 mm |
| Weight | 10 kg |
Other features
| Specification | Value |
|---|---|
| Graphics card | Radeon HD 4250 Graphics |
| Graphics card family | ATI |
| Mac compatibility | No |
| Ventilation fan(s) | 3 |
