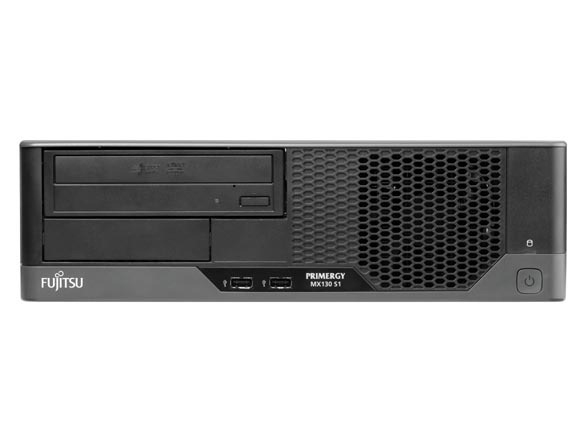

Fujitsu MX130 S1
Model MX130 S1Part no. VFY:M1301SC010IN S26361-F2567-EAN 4049699441486
56 specifications
- ProcessorAMD Sempron
- Memory2 GB
- Noise21 dB
- OSNo
- Weight10 kg
- HDD size3.5"
Overview
- Processor
- AMD Sempron
- Memory
- 2 GB
- Noise
- 21 dB
- OS
- No
- Weight
- 10 kg
- HDD size
- 3.5"
- Brand
- Fujitsu
- Category
- Server
- Model
- MX130 S1
- Part numbers
- VFY:M1301SC010IN S26361-F2567-, VFY:M1301SX010IN S26361-F2567-, VFY:M1301SC030IN, VFY:M1301SC010INSET, VFY:M1301SC020INSET, VFY:M1301SX010INSET +32 more
- EAN / UPC
- 4049699441486
- Also known as
- Fujitsu PRIMERGY MX130 S1 server Desktop AMD Sempron 140 2.2 GHz 2 GB DDR3-SDRAM 250 W
Specifications
56 specifications in 14 groups
Processor
| Specification | Value |
|---|---|
| Processor family | AMD Sempron |
| Processor model | 140 |
| Processor frequency | 2.2 GHz |
| Processor cores | 1 |
| Processor cache | 0.512 MB |
| Motherboard chipset | AMD 785G |
| Number of processors installed | 1 |
| Processor cache type | L2 |
| Maximum number of SMP processors | 1 |
Memory
| Specification | Value |
|---|---|
| Internal memory | 2 GB |
| Internal memory type | DDR3-SDRAM |
| ECC | Yes |
| Maximum internal memory | 16384 MB |
| Memory clock speed | 1333 MHz |
| Memory layout (slots x size) | 1 x 2 GB |
| Memory slots | 4x DIMM |
| Maximum internal memory | 16 GB |
Storage
| Specification | Value |
|---|---|
| HDD size | 3.5" |
| RAID support | Yes |
| RAID levels | 10 |
| Hot-swap | No |
| Internal drive bays | 3 |
| Optical drive type | DVD-ROM |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Networking features | Gigabit Ethernet |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| USB 2.0 ports quantity | 12 |
| PS/2 ports quantity | 0 |
| Serial ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x4 slots | 1 |
| PCI Express x16 slots | 1 |
| PCI Express slots version | 2.0 |
| PCI slots | 2 |
Design
| Specification | Value |
|---|---|
| Chassis type | Desktop |
Performance
| Specification | Value |
|---|---|
| Noise level | 21 dB |
Software
| Specification | Value |
|---|---|
| Operating system installed | No |
| Compatible operating systems | Windows Hyper-V Server 2008 R2 Server 2008 R2 Standard Server 2008 R2 Foundation/SBS 2008 |
Power
| Specification | Value |
|---|---|
| Redundant power supply (RPS) support | No |
| Number of power supply units | 1 |
| Power requirements | 100-240V |
| Power supply | 250 W |
| Power supply input frequency | 47 - 63 Hz |
Operational conditions
| Specification | Value |
|---|---|
| Storage temperature (T-T) | 10 - 35 °C |
Certificates
| Specification | Value |
|---|---|
| Compliance industry standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab |
| Certification | GS, CE, CB, RoHS, WEEE |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 340 mm |
| Depth | 380 mm |
| Height | 100 mm |
| Weight | 10 kg |
Other features
| Specification | Value |
|---|---|
| Data transfer rate | 1 Gbit/s |
| Graphics card | Radeon HD 4200 |
| Graphics card family | ATI |
| Mac compatibility | No |
| Supported data transfer rates | 10/100/1000 Mbit/s |
| Ventilation fan(s) | 3 |
