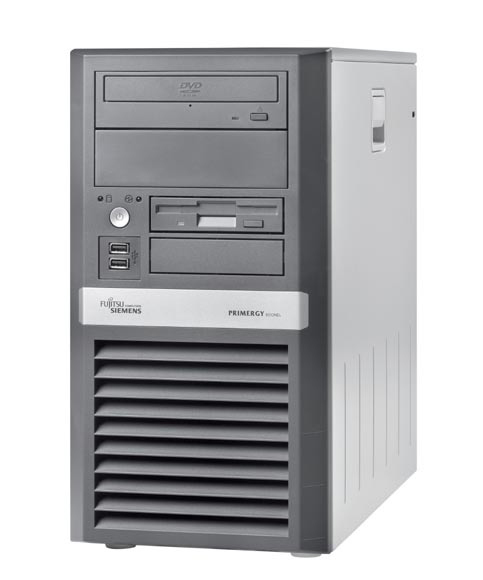

Fujitsu Econel 100 S2
Model Econel 100 S2Part no. VFY:E1002SF060DEEAN 4333643560553
99 specifications
- ProcessorIntel® Pentium®
- Memory1 GB
- Storage160 GB
- Weight16.2 kg
- Processor manufacturerIntel
- Maximum storage capacity2 TB
Overview
- Processor
- Intel® Pentium®
- Memory
- 1 GB
- Storage
- 160 GB
- Weight
- 16.2 kg
- Processor manufacturer
- Intel
- Maximum storage capacity
- 2 TB
- Brand
- Fujitsu
- Category
- Server
- Model
- Econel 100 S2
- Part numbers
- VFY:E1002SF060DE, VFY:E1002SF070CH, VFY:E1002SP080PL, VFY:E1002SF040CH, VFY:E1002SF120PL, VFY:E1002SF130PL +10 more
- EAN / UPC
- 4333643560553, 4049699095610
- Also known as
- Fujitsu PRIMERGY Econel 100 S2 server 160 GB Tower Intel® Pentium® E2140 1.6 GHz 1 GB DDR2-SDRAM
Specifications
99 specifications in 14 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Pentium® |
| Processor model | E2140 |
| Processor frequency | 1.6 GHz |
| Processor cores | 2 |
| Processor cache | 1 MB |
| Motherboard chipset | Intel® 3200 |
| Number of processors installed | 1 |
| Thermal Design Power (TDP) | 65 W |
| Processor cache type | L2 |
| Bus type | FSB |
| CPU multiplier (bus/core ratio) | 8 |
| ECC supported by processor | No |
| Embedded options available | No |
| Execute Disable Bit | Yes |
| FSB Parity | No |
| Idle States | Yes |
| Maximum number of SMP processors | 1 |
| Number of Processing Die Transistors | 105 M |
| Processing Die size | 77 mm² |
| Processor code | SLA93 |
| Processor codename | Conroe |
| Processor front side bus | 800 MHz |
| Processor lithography | 65 nm |
| Processor operating modes | 64-bit |
| Processor package size | 37.5 x 37.5 mm |
| Processor series | Intel Pentium E2000 Series for Desktop |
| Processor socket | LGA 775 (Socket T) |
| Processor threads | 2 |
| Stepping | M0 |
| Tcase | 61.4 °C |
| Thermal Monitoring Technologies | Yes |
| Conflict-Free processor | No |
Memory
| Specification | Value |
|---|---|
| Internal memory | 1 GB |
| Internal memory type | DDR2-SDRAM |
| ECC | Yes |
| Memory slots | 4x DIMM |
| Maximum internal memory | 8 GB |
Storage
| Specification | Value |
|---|---|
| Maximum storage capacity | 2 TB |
| Total storage capacity | 160 GB |
| Number of HDDs installed | 1 |
| HDD capacity | 160 GB |
| HDD interface | Serial ATA |
| HDD size | 3.5" |
| Number of HDDs supported | 4 |
| RAID support | Yes |
| Hot-swap | No |
| Optical drive type | DVD-ROM |
Graphics
| Specification | Value |
|---|---|
| Maximum graphics card memory | 32 MB |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Networking features | Gigabit Ethernet |
| Wake-on-LAN ready | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| USB 2.0 ports quantity | 9 |
| PS/2 ports quantity | 2 |
| Serial ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 slots | 1 |
| PCI Express x4 slots | 1 |
| PCI Express x8 slots | 1 |
| PCI slots | 1 |
Design
| Specification | Value |
|---|---|
| Chassis type | Tower |
Software
| Specification | Value |
|---|---|
| Compatible operating systems | Windows Server 2008 Standard (32/64-bit) Windows Server 2003 R2 Standard Edition SP2 (32/64-bit) Windows Small Business Server 2003 R2 (32/64-bit) Red Hat Enterprise Linux ES (32/64-bit) Red Hat Enterprise Linux 5 (32/64-bit) |
Processor special features
| Specification | Value |
|---|---|
| Enhanced Intel SpeedStep Technology | Yes |
| Intel 64 | Yes |
| Intel Clear Video Technology | No |
| Intel Demand Based Switching | No |
| Intel Dual Display Capable Technology | No |
| Intel Enhanced Halt State | Yes |
| Intel FDI Technology | No |
| Intel Fast Memory Access | No |
| Intel Flex Memory Access | No |
| Intel Rapid Storage Technology | No |
| Intel Trusted Execution Technology | No |
| Intel VT-x with Extended Page Tables (EPT) | No |
| Intel Virtualization Technology (VT-x) | No |
| Intel Virtualization Technology for Directed I/O (VT-d) | No |
| Intel® AES New Instructions (Intel® AES-NI) | No |
| Intel® Anti-Theft Technology (Intel® AT) | No |
| Intel® Clear Video HD Technology (Intel® CVT HD) | No |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | No |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Intel® InTru™ 3D Technology | No |
| Intel® Insider™ | No |
| Intel® My WiFi Technology (Intel® MWT) | No |
| Intel® Quick Sync Video Technology | No |
| Intel® Turbo Boost Technology | No |
| Intel® Wireless Display (Intel® WiDi) | No |
| Processor ARK ID | 29738 |
Power
| Specification | Value |
|---|---|
| Redundant power supply (RPS) support | No |
| Number of power supply units | 1 |
| Power consumption (typical) | 178 W |
Certificates
| Specification | Value |
|---|---|
| Compliance industry standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 203 mm |
| Depth | 386 mm |
| Height | 390 mm |
| Weight | 16.2 kg |
Other features
| Specification | Value |
|---|---|
| Graphics card | ES1000 |
| Graphics card family | AMD |
