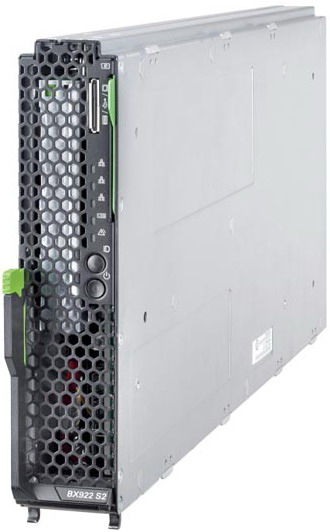

Fujitsu BX922 S2
Model BX922 S2Part no. VFY:B9222SC020INEAN 4051554201814
101 specifications
- ProcessorIntel® Xeon® 5000 Sequence
- Memory4 GB
- Storage32 GB
- OSNo
- Weight5.75 kg
- Processor manufacturerIntel
Overview
- Processor
- Intel® Xeon® 5000 Sequence
- Memory
- 4 GB
- Storage
- 32 GB
- OS
- No
- Weight
- 5.75 kg
- Processor manufacturer
- Intel
- Brand
- Fujitsu
- Category
- Server
- Model
- BX922 S2
- Part numbers
- VFY:B9222SC020IN, LKN:B9222S0001NC, LKN:B9222S0002NC, LKN:B9222S0003NC, LKN:B9222S0004NC, LKN:B9222S0005NC
- EAN / UPC
- 4051554201814, 4049699313257, 4049699313264, 4049699313271 +2 more
- Also known as
- Fujitsu PRIMERGY BX922 S2 server 32 GB Blade Intel® Xeon® 5000 Sequence E5503 2 GHz 4 GB DDR3-SDRAM
Specifications
101 specifications in 12 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Xeon® 5000 Sequence |
| Processor model | E5503 |
| Processor frequency | 2 GHz |
| Processor cores | 2 |
| Processor cache | 4 MB |
| Motherboard chipset | Intel® 5500 |
| Memory channels supported by processor | Triple |
| Number of processors installed | 1 |
| Thermal Design Power (TDP) | 80 W |
| Processor cache type | Smart Cache |
| System bus rate | 4.8 GT/s |
| Bus type | QPI |
| CPU multiplier (bus/core ratio) | 15 |
| Compatible processor series | Intel® Xeon® |
| ECC supported by processor | Yes |
| Embedded options available | No |
| Execute Disable Bit | Yes |
| FSB Parity | No |
| Idle States | Yes |
| Maximum internal memory supported by processor | 144 GB |
| Memory bandwidth supported by processor (max) | 19.2 GB/s |
| Memory clock speeds supported by processor | 800 MHz |
| Memory types supported by processor | DDR3-SDRAM |
| Number of QPI links | 2 |
| Physical Address Extension (PAE) | 40 bit |
| Physical Address Extension (PAE) | Yes |
| Processor code | SLBKD |
| Processor codename | Nehalem EP |
| Processor lithography | 45 nm |
| Processor operating modes | 64-bit |
| Processor package size | 42.5 x 45 mm |
| Processor series | Intel Xeon 5500 Series |
| Processor socket | Socket B (LGA 1366) |
| Processor threads | 2 |
| Stepping | D0 |
| Tcase | 76 °C |
| Thermal Monitoring Technologies | No |
| Conflict-Free processor | No |
Memory
| Specification | Value |
|---|---|
| Internal memory | 4 GB |
| Internal memory type | DDR3-SDRAM |
| ECC | Yes |
| Memory clock speed | 1333 MHz |
| Memory layout (slots x size) | 2 x 2 GB |
| Memory slots | 12x DIMM |
| Maximum internal memory | 192 GB |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 32 GB |
| Number of HDDs installed | 1 |
| HDD interface | Serial ATA |
| HDD size | 2.5" |
| Number of HDDs supported | 2 |
| RAID support | Yes |
| RAID levels | 0, 1 |
| Hot-swap | No |
| Optical drive type | No |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| LAN controller | Intel® 82575 |
| Networking features | Gigabit Ethernet |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 4 |
| USB 2.0 ports quantity | 4 |
| PS/2 ports quantity | 0 |
| Serial ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
Design
| Specification | Value |
|---|---|
| Chassis type | Blade |
Software
| Specification | Value |
|---|---|
| Operating system installed | No |
| Compatible operating systems | Windows HPC Server 2008/Server 2008 VMware vSphere Novell SUSE Linux Enterprise Server Red Hat Enterprise Linux Citrix XenServer |
Processor special features
| Specification | Value |
|---|---|
| Enhanced Intel SpeedStep Technology | Yes |
| Intel 64 | Yes |
| Intel Clear Video Technology | No |
| Intel Demand Based Switching | Yes |
| Intel Dual Display Capable Technology | No |
| Intel Enhanced Halt State | Yes |
| Intel FDI Technology | No |
| Intel Fast Memory Access | No |
| Intel Flex Memory Access | No |
| Intel Rapid Storage Technology | No |
| Intel Trusted Execution Technology | No |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | No |
| Intel® Anti-Theft Technology (Intel® AT) | No |
| Intel® Clear Video HD Technology (Intel® CVT HD) | No |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | No |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Intel® InTru™ 3D Technology | No |
| Intel® Insider™ | No |
| Intel® My WiFi Technology (Intel® MWT) | No |
| Intel® Quick Sync Video Technology | No |
| Intel® Smart Cache | Yes |
| Intel® Turbo Boost Technology | No |
| Intel® Wireless Display (Intel® WiDi) | No |
| Processor ARK ID | 37094 |
Power
| Specification | Value |
|---|---|
| Redundant power supply (RPS) support | No |
Certificates
| Specification | Value |
|---|---|
| Compliance industry standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab |
| Certification | CE, CB, GS, RoHS, WEEE |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 45 mm |
| Depth | 500 mm |
| Height | 210 mm |
| Weight | 5.75 kg |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 45 x 500 x 210 mm |
What people say
Reviews & ratings
Fujitsu BX922 S2
- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare Fujitsu BX922 S2
All server comparisons- Fujitsu BX922 S2 vsFujitsu PRIMERGY S1 serverCompare specs
- Fujitsu BX922 S2 vsFujitsu MX130 S1Compare specs

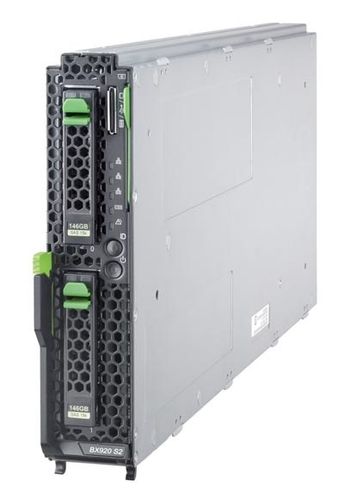

- Fujitsu BX922 S2 vsFujitsu BX920 S2Compare specs
- Fujitsu BX922 S2 vsFujitsu S7 Xeon X3430Compare specs
- Fujitsu BX922 S2 vsDell PowerEdge T110 serverCompare specs

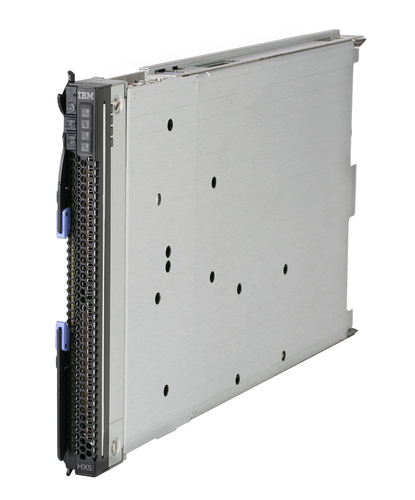

- Fujitsu BX922 S2 vsLenovo BladeCenter HX5 serverCompare specs

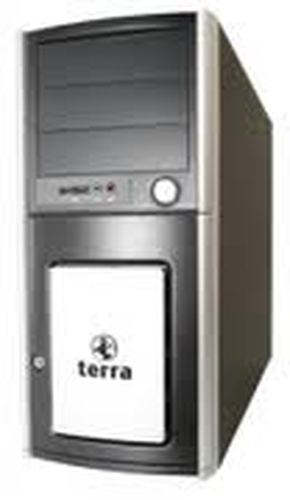

- Fujitsu BX922 S2 vsTERRA Server 3021Compare specs
