VIKING-T2V-V2 server
500 GB Midi Tower Intel® Core™ i5 2.9 GHz 16 GB DDR4-SDRAM 300 W Windows 10 Pro
Model VIKING-T2V-V2EAN 5704174301936
90 specifications
- ProcessorIntel® Core™ i5
- Memory16 GB
- Storage500 GB
- GraphicsNVIDIA® GeForce® GT 1030
- OSWindows 10 Pro
- Weight9.5 kg
Overview
- Processor
- Intel® Core™ i5
- Memory
- 16 GB
- Storage
- 500 GB
- Graphics
- NVIDIA® GeForce® GT 1030
- OS
- Windows 10 Pro
- Weight
- 9.5 kg
- Brand
- Ernitec
- Category
- Server
- Model
- VIKING-T2V-V2
- Part number
- VIKING-T2V-V2
- EAN / UPC
- 5704174301936
- Also known as
- Ernitec VIKING-T2V-V2 server 500 GB Midi Tower Intel® Core™ i5 2.9 GHz 16 GB DDR4-SDRAM 300 W Windows 10 Pro
Specifications
90 specifications in 15 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i5 |
| Processor generation | 9th gen Intel® Core™ i5 |
| Processor frequency | 2.9 GHz |
| Processor boost frequency | 4.1 GHz |
| Processor cores | 6 |
| Bus type | DMI3 |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| PCI Express configurations | 1x16 |
| Processor codename | Coffee Lake |
| Processor threads | 6 |
| Conflict-Free processor | Yes |
| Intelligent Platform Management Interface (IPMI) support | No |
Memory
| Specification | Value |
|---|---|
| Internal memory | 16 GB |
| Internal memory type | DDR4-SDRAM |
| ECC | No |
| Memory clock speed | 2666 MHz |
| Memory layout (slots x size) | 2 x 8 GB |
| Maximum internal memory | 64 GB |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 500 GB |
| HDD size | 3.5" |
| Number of HDDs supported | 4 |
| Supported HDD sizes | 3.5" |
| Number of SSDs installed | 1 |
| SSD capacity | 500 GB |
| SSD interface | SATA III |
| Number of SSDs supported | 4 |
| Hot-Plug support | Yes |
| Hot-swap | No |
| Internal drive bays | 4 |
| Optical drive type | No |
| Supported storage drive interfaces | Serial ATA III |
Graphics
| Specification | Value |
|---|---|
| Discrete graphics card | Yes |
| Discrete graphics card model | NVIDIA® GeForce® GT 1030 |
| Discrete graphics card memory | 2 GB |
| On-board graphics card | No |
| Number of displays supported (on-board graphics) | 3 |
Network
| Specification | Value |
|---|---|
| Network ready | Yes |
| Wi-Fi | No |
| Cabling technology | 10/100/1000Base-T(X) |
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |

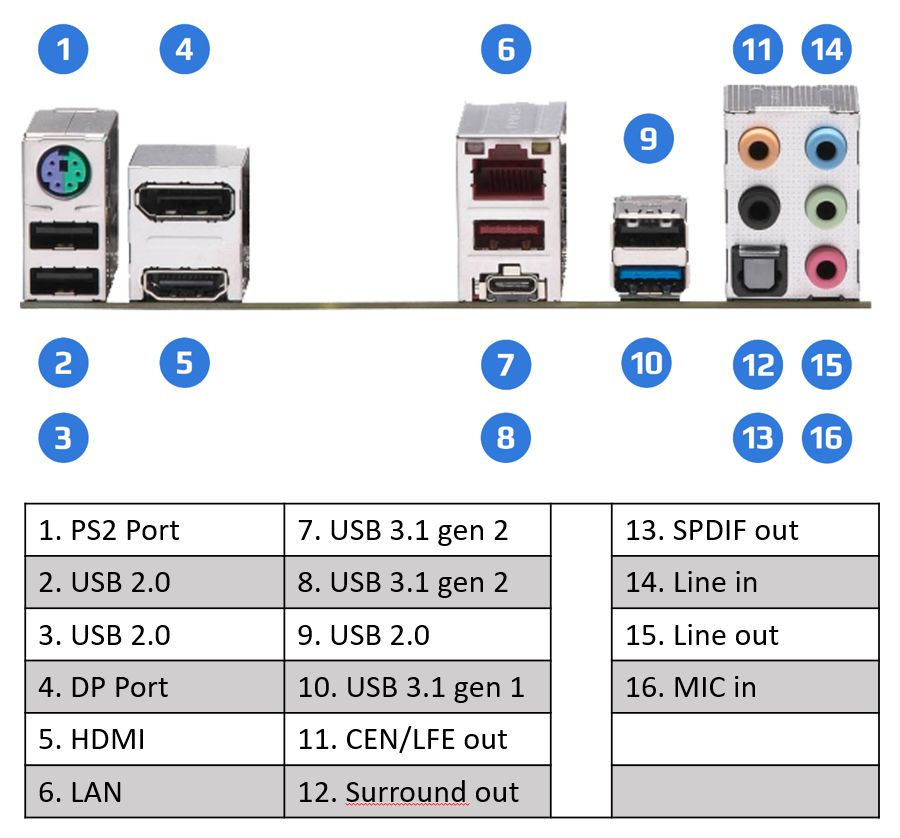

Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| VGA (D-Sub) ports quantity | 0 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x16 slots | 1 |
| PCI Express x16 (Gen 3.x) slots | 1 |
Design
| Specification | Value |
|---|---|
| Chassis type | Midi Tower |
| Product colour | Black |
| Motherboard form factor | micro ATX |
| Rack mounting | No |
| Rack rails | No |
| Redundant fans support | No |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 10 Pro |
| Bundled software | Super Doctor 5 |
Processor special features
| Specification | Value |
|---|---|
| CPU configuration (max) | 1 |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel Enhanced Halt State | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Intel® Quick Sync Video Technology | Yes |
Power
| Specification | Value |
|---|---|
| Redundant power supply (RPS) support | No |
| Power supply | 300 W |
| Number of main power supplies | 1 |
| Power supply input voltage | 100 - 240 V |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 60 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 10 - 85% |
| Storage relative humidity (H-H) | 5 - 95% |
| Relative humidity | 10 - 85% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 184 mm |
| Depth | 425 mm |
| Height | 362 mm |
| Weight | 9.5 kg |
| Package width | 279 mm |
| Package depth | 533 mm |
| Package height | 508 mm |
| Package weight | 10 kg |
Technical details
| Specification | Value |
|---|---|
| Number of 3.5" bays | 4 |
| Number of storage drives supported | 4 |
| 3.5" HDD support | 4 |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 184 x 425 x 362 mm |
| Graphics card family | NVIDIA |
| Hot-swap HDD bays | No |
| Integrated BMC with IPMI | No |
| Integrated LAN | Yes |
| Number of DIMM slots | 4 |
| S.M.A.R.T. support | Yes |
| Ventilation fan(s) | 1 |
| Number of drive bays | 4 |
