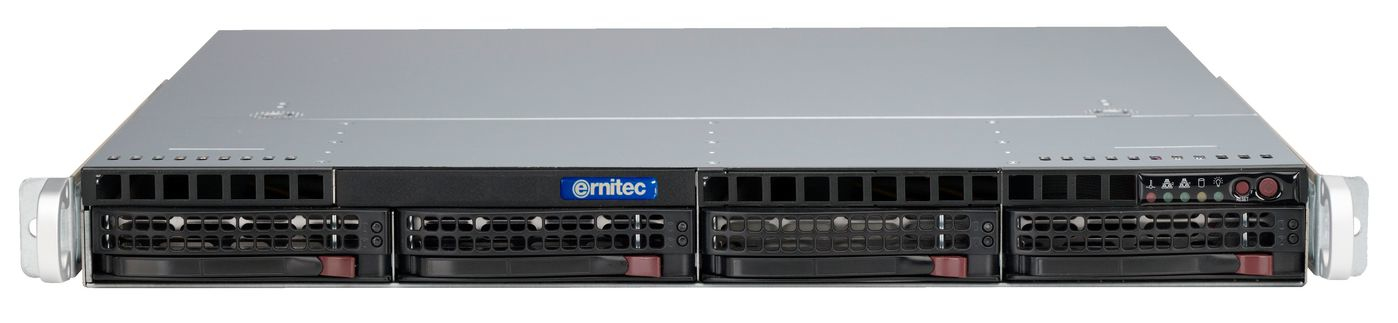

VIKING-R4-B64-V2 server
250 GB Rack (1U) Intel® Core™ i7 2.9 GHz 16 GB DDR4-SDRAM 500 W Windows 10 Pro
Model VIKING-R4-B64-V2EAN 5704174944409
53 specifications
- ProcessorIntel® Core™ i7
- Memory16 GB
- Storage250 GB
- OSWindows 10 Pro
- Weight16 kg
- ColourBlack, Steel
Overview
- Processor
- Intel® Core™ i7
- Memory
- 16 GB
- Storage
- 250 GB
- OS
- Windows 10 Pro
- Weight
- 16 kg
- Colour
- Black, Steel
- Brand
- Ernitec
- Category
- Server
- Model
- VIKING-R4-B64-V2
- Part number
- VIKING-R4-B64-V2
- EAN / UPC
- 5704174944409
- Also known as
- Ernitec VIKING-R4-B64-V2 server 250 GB Rack (1U) Intel® Core™ i7 2.9 GHz 16 GB DDR4-SDRAM 500 W Windows 10 Pro
Specifications
53 specifications in 12 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i7 |
| Processor frequency | 2.9 GHz |
| Processor boost frequency | 4.8 GHz |
| Processor cores | 8 |
| Processor cache | 16 MB |
| Number of processors installed | 1 |
| Intelligent Platform Management Interface (IPMI) support | Yes |
Memory
| Specification | Value |
|---|---|
| Internal memory | 16 GB |
| Internal memory type | DDR4-SDRAM |
| ECC | No |
| Memory clock speed | 2666 MHz |
| Memory layout (slots x size) | 2 x 8 GB |
| Maximum internal memory | 128 GB |
Storage
| Specification | Value |
|---|---|
| Maximum storage capacity | 80 TB |
| Total storage capacity | 250 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 250 GB |
| NVMe | Yes |
| Internal drive bays | 4 |
| Optical drive type | No |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| On-board graphics card family | Intel® UHD Graphics |
| On-board graphics card model | Intel® UHD Graphics 630 |
| Maximum graphics card memory | 64000 MB |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| DisplayPorts quantity | 2 |
| VGA (D-Sub) ports quantity | 1 |
Design
| Specification | Value |
|---|---|
| Chassis type | Rack (1U) |
| Product colour | Black, Steel |
| Rack mounting | Yes |
| Rack rails | Yes |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 10 Pro |
Power
| Specification | Value |
|---|---|
| Power supply | 500 W |
| Power supply input voltage | 100 - 240 V |
| Power supply input frequency | 50 - 60 Hz |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 35 °C |
| Storage temperature (T-T) | -40 - 60 °C |
| Operating relative humidity (H-H) | 8 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 178 mm |
| Depth | 531 mm |
| Height | 425 mm |
| Weight | 16 kg |
| Package width | 250 mm |
| Package depth | 600 mm |
| Package height | 460 mm |
| Package weight | 16.5 kg |
Other features
| Specification | Value |
|---|---|
| Warranty period | 3 year(s) |
