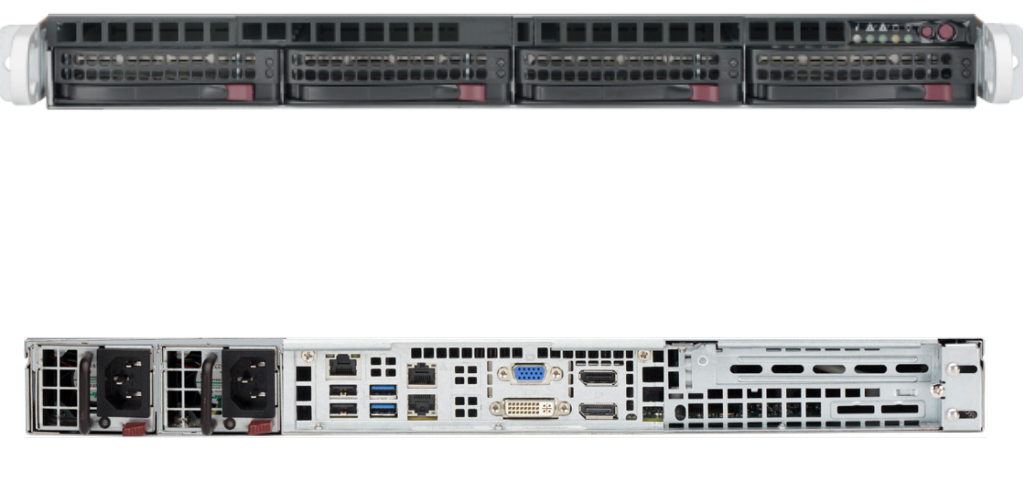

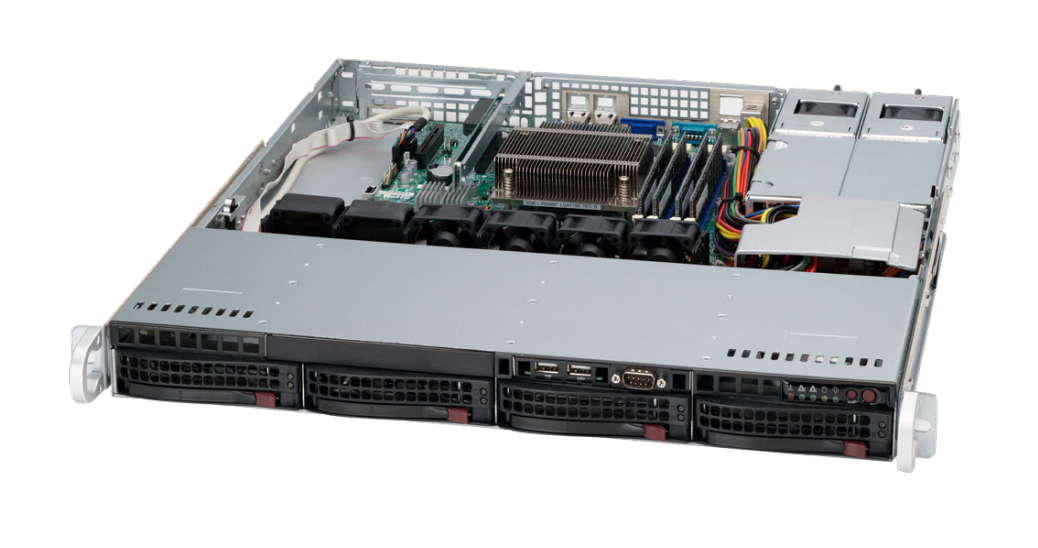

VIKING-R2-8TB server
8.25 TB Intel® Core™ i7 i7-7700 3.6 GHz 16 GB DDR4-SDRAM 400 W Windows 10 Pro
Model VIKING-R2-8TBEAN 5706998617361
57 specifications
- ProcessorIntel® Core™ i7
- Memory16 GB
- Storage8.25 TB
- OSWindows 10 Pro
- Weight16.1 kg
- ColourBlack
Overview
- Processor
- Intel® Core™ i7
- Memory
- 16 GB
- Storage
- 8.25 TB
- OS
- Windows 10 Pro
- Weight
- 16.1 kg
- Colour
- Black
- Brand
- Ernitec
- Category
- Server
- Model
- VIKING-R2-8TB
- Part number
- VIKING-R2-8TB
- EAN / UPC
- 5706998617361
- Also known as
- Ernitec VIKING-R2-8TB server 8.25 TB Intel® Core™ i7 i7-7700 3.6 GHz 16 GB DDR4-SDRAM 400 W Windows 10 Pro
Specifications
57 specifications in 12 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i7 |
| Processor generation | 7th gen Intel® Core™ i7 |
| Processor model | i7-7700 |
| Processor frequency | 3.6 GHz |
| Bus type | DMI3 |
| Embedded options available | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Conflict-Free processor | Yes |
Memory
| Specification | Value |
|---|---|
| Internal memory | 16 GB |
| Internal memory type | DDR4-SDRAM |
| ECC | No |
| Memory clock speed | 2400 MHz |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 8.25 TB |
| Number of HDDs installed | 2 |
| HDD capacity | 4 TB |
| HDD interface | Serial ATA |
| Number of SSDs installed | 1 |
| SSD capacity | 250 GB |
| Optical drive type | No |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| On-board graphics card model | Aspeed AST2400 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| LAN controller | Intel® I210-AT, Intel® I219-LM |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| DisplayPorts quantity | 2 |
| VGA (D-Sub) ports quantity | 1 |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Rack mounting | Yes |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 10 Pro |
| Bundled software | Super Doctor 3 |
Processor special features
| Specification | Value |
|---|---|
| CPU configuration (max) | 1 |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel 64 | Yes |
| Intel Clear Video Technology | Yes |
| Intel Enhanced Halt State | Yes |
| Intel Identity Protection Technology version | 1.00 |
| Intel Secure Key Technology version | 1.00 |
| Intel Software Guard Extensions (Intel SGX) | Yes |
| Intel Stable Image Platform Program (SIPP) | Yes |
| Intel Stable Image Platform Program (SIPP) version | 1.00 |
| Intel TSX-NI | Yes |
| Intel TSX-NI version | 1.00 |
| Intel Trusted Execution Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
Power
| Specification | Value |
|---|---|
| Power supply | 400 W |
| Power supply input frequency | 100 - 240 Hz |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 40 °C |
| Operating relative humidity (H-H) | 8 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 437 mm |
| Depth | 503 mm |
| Height | 43 mm |
| Weight | 16.1 kg |
