VIKING-1UR-ACS-I3 server
240 GB Rack (1U) Intel® Core™ i3 i3-9100 4.2 GHz 8 GB DDR4-SDRAM 200 W Windows 10 Pro
Model VIKING-1UR-ACS-I3EAN 5704174799481
43 specifications
- ProcessorIntel® Core™ i3
- Memory8 GB
- Storage240 GB
- OSWindows 10 Pro
- Weight10 kg
- ColourBlack
Overview
- Processor
- Intel® Core™ i3
- Memory
- 8 GB
- Storage
- 240 GB
- OS
- Windows 10 Pro
- Weight
- 10 kg
- Colour
- Black
- Brand
- Ernitec
- Category
- Server
- Model
- VIKING-1UR-ACS-I3
- Part number
- VIKING-1UR-ACS-I3
- EAN / UPC
- 5704174799481
- Also known as
- Ernitec VIKING-1UR-ACS-I3 server 240 GB Rack (1U) Intel® Core™ i3 i3-9100 4.2 GHz 8 GB DDR4-SDRAM 200 W Windows 10 Pro
Specifications
43 specifications in 12 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i3 |
| Processor model | i3-9100 |
| Processor frequency | 4.2 GHz |
| Processor cores | 4 |
| Processor cache | 6 MB |
| Number of processors installed | 1 |
| Intelligent Platform Management Interface (IPMI) support | Yes |
Memory
| Specification | Value |
|---|---|
| Internal memory | 8 GB |
| Internal memory type | DDR4-SDRAM |
| ECC | No |
| Memory clock speed | 2666 MHz |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 240 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 240 GB |
| NVMe | Yes |
| SSD interface | M.2 |
| SSD size | M.2 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Number of LAN controllers | 2 |

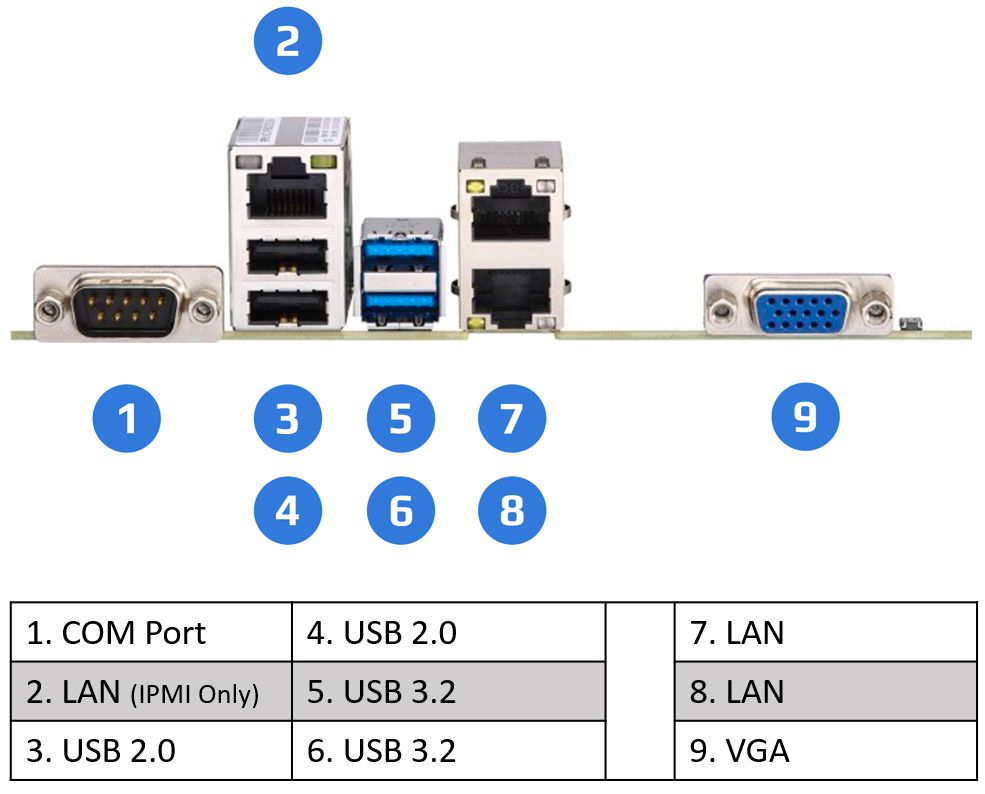

Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 3 |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| VGA (D-Sub) ports quantity | 1 |
Design
| Specification | Value |
|---|---|
| Chassis type | Rack (1U) |
| Product colour | Black |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 10 Pro |
Processor special features
| Specification | Value |
|---|---|
| CPU configuration (max) | 1 |
Power
| Specification | Value |
|---|---|
| Power supply | 200 W |
| Power supply input voltage | 100 - 240 V |
| Power supply input frequency | 50 - 60 Hz |
| Power cable current | 8 A |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 35 °C |
| Storage temperature (T-T) | -40 - 60 °C |
| Operating relative humidity (H-H) | 8 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 437 mm |
| Depth | 249 mm |
| Height | 43 mm |
| Weight | 10 kg |
| Package weight | 12 kg |
Other features
| Specification | Value |
|---|---|
| Warranty period | 3 year(s) |
