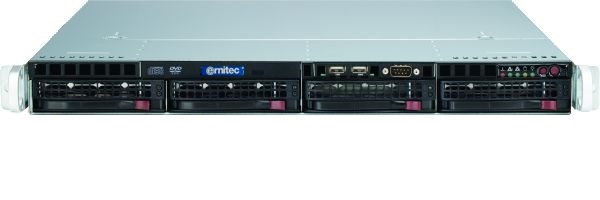

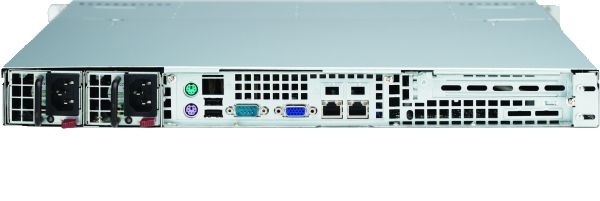

VIKING-1U-MS- server
2 TB Rack (1U) Intel® Core™ i7 4.7 GHz 32 GB DDR4-SDRAM 400 W Windows Server 2019 Standard
Model VIKING-1U-MS-SERVEREAN 5704174883890
42 specifications
- ProcessorIntel® Core™ i7
- Memory32 GB
- Storage2 TB
- OSWindows Server 2019 Standard
- Weight15 kg
- ColourBlack, Steel
Overview
- Processor
- Intel® Core™ i7
- Memory
- 32 GB
- Storage
- 2 TB
- OS
- Windows Server 2019 Standard
- Weight
- 15 kg
- Colour
- Black, Steel
- Brand
- Ernitec
- Category
- Server
- Model
- VIKING-1U-MS-SERVER
- Part number
- VIKING-1U-MS-SERVER
- EAN / UPC
- 5704174883890
- Also known as
- Ernitec VIKING-1U-MS- server 2 TB Rack (1U) Intel® Core™ i7 4.7 GHz 32 GB DDR4-SDRAM 400 W Windows Server 2019 Standard
Specifications
42 specifications in 11 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i7 |
| Processor frequency | 4.7 GHz |
| Processor cores | 8 |
| Processor cache | 12 MB |
| Number of processors installed | 1 |
| Intelligent Platform Management Interface (IPMI) support | Yes |
Memory
| Specification | Value |
|---|---|
| Internal memory | 32 GB |
| Internal memory type | DDR4-SDRAM |
| ECC | No |
| Memory clock speed | 2666 MHz |
| Memory layout (slots x size) | 2 x 16 GB |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 2 TB |
| Number of SSDs installed | 2 |
| SSD capacity | 500 GB |
| RAID support | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Number of LAN controllers | 2 |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| DisplayPorts quantity | 2 |
| VGA (D-Sub) ports quantity | 1 |
Design
| Specification | Value |
|---|---|
| Chassis type | Rack (1U) |
| Product colour | Black, Steel |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows Server 2019 Standard |
Power
| Specification | Value |
|---|---|
| Redundant power supply (RPS) support | Yes |
| Power supply | 400 W |
| Power supply input voltage | 100 - 240 V |
| Power supply input frequency | 50 - 60 Hz |
| Power cable current | 3 A |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 35 °C |
| Storage temperature (T-T) | -40 - 60 °C |
| Operating relative humidity (H-H) | 8 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 437 mm |
| Depth | 503 mm |
| Height | 43 mm |
| Weight | 15 kg |
| Package weight | 20 kg |
Other features
| Specification | Value |
|---|---|
| Warranty period | 3 year(s) |
