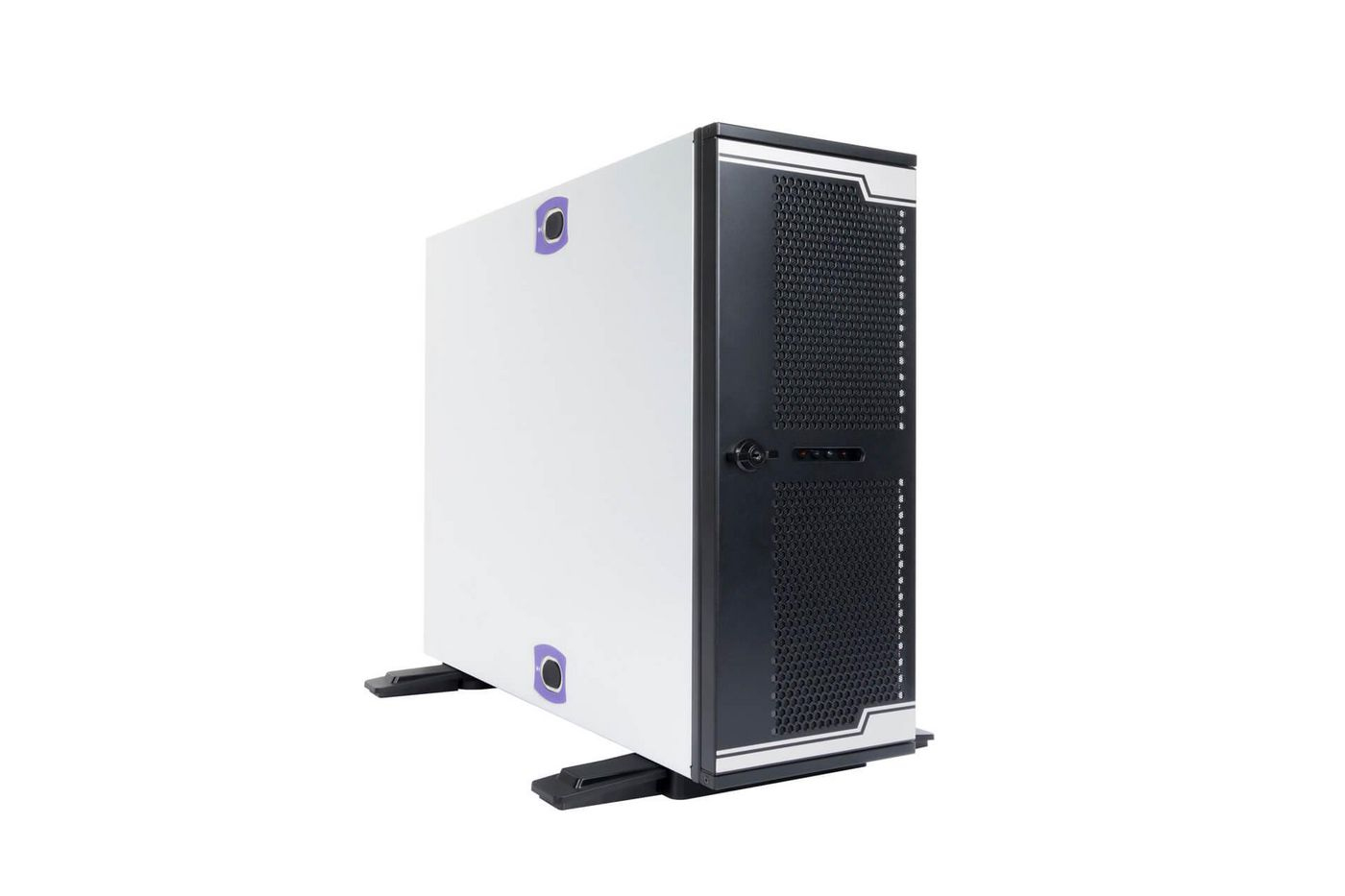

ST-U7-HW-A4 server
1 TB 32 GB DDR5-SDRAM 800 W Windows 11 Pro
Model ST-U7-HW-A4EAN 5715328161450
84 specifications
- Memory32 GB
- Storage1 TB
- OSWindows 11 Pro
- Weight18 kg
- ColourBlack
- Processor manufacturerIntel
Overview
- Memory
- 32 GB
- Storage
- 1 TB
- OS
- Windows 11 Pro
- Weight
- 18 kg
- Colour
- Black
- Processor manufacturer
- Intel
- Brand
- Ernitec
- Category
- Server
- Model
- ST-U7-HW-A4
- Part number
- ST-U7-HW-A4
- EAN / UPC
- 5715328161450
- Also known as
- Ernitec ST-U7-HW-A4 server 1 TB 32 GB DDR5-SDRAM 800 W Windows 11 Pro
Specifications
84 specifications in 16 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Efficient-core base frequency | 1.8 GHz |
| Performance-core base frequency | 2.4 GHz |
| Performance-core Max Turbo Frequency | 5.3 GHz |
| Performance cores | 8 |
| Efficient cores | 12 |
| Processor cores | 20 |
| Processor cache | 30 MB |
| Thermal Design Power (TDP) | 65 W |
| Processor cache type | Smart Cache |
| Processor socket | LGA 1851 (Socket V1) |
| Processor threads | 20 |
Memory
| Specification | Value |
|---|---|
| Internal memory | 32 GB |
| Internal memory type | DDR5-SDRAM |
| ECC | No |
| Memory layout (slots x size) | 2 x 16 GB |
| Memory data transfer rate | 5600 MT/s |
| Maximum internal memory | 256 GB |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 1 TB |
| HDD capacity | 500 GB |
| HDD interface | SATA III |
| Number of HDDs supported | 4 |
| Supported HDD sizes | 3.5" |
| Number of SSDs installed | 2 |
| SSD capacity | 500 GB |
| NVMe | Yes |
| SSD interface | SATA III |
| SSD size | 2.5" |
| Supported SSD sizes | M.2 |
| Number of SSDs supported | 2 |
| RAID support | Yes |
| RAID levels | 0 |
| Hot-Plug support | Yes |
| Internal drive bays | 3 |
| Supported storage drive interfaces | M.2 |
| RAID controller cache | 4 GB |
Graphics
| Specification | Value |
|---|---|
| Discrete graphics card | Yes |
| Discrete graphics card memory | 4 GB |
| On-board graphics card | Yes |
| On-board graphics card family | Intel® Graphics |
| On-board graphics card model | Intel® Graphics |
| Number of displays supported (on-board graphics) | 2 |
| On-board graphics card 4K support | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | 10 Gigabit Ethernet |
| Number of LAN controllers | 2 |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 2 |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 6 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| Mini DisplayPorts quantity | 4 |
| VGA (D-Sub) ports quantity | 1 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x4 slots | 1 |
| PCI Express x16 (Gen 5.x) slots | 2 |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Cooling type | Active |
| Rack mounting | No |
Performance
| Specification | Value |
|---|---|
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
| Export Control Classification Number (ECCN) | 5A992C |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 11 Pro |
| Compatible operating systems | Windows 11 Pro |
| Operating system language | Multilingual |
Processor special features
| Specification | Value |
|---|---|
| Processor ARK ID | 241068 |
Power
| Specification | Value |
|---|---|
| Redundant power supply (RPS) support | Yes |
| Power supply | 800 W |
| Number of redundant power supplies supported | 2 |
| Number of redundant power supplies installed | 2 |
| Number of main power supplies | 2 |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 18 kg |
| Package weight | 18 kg |
Packaging content
| Specification | Value |
|---|---|
| Cables included | Power |
Technical details
| Specification | Value |
|---|---|
| Number of 3.5" bays | 4 |
| 2.5" HDD support | 4 |
| 3.5" HDD support | 4 |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 430 x 515 x 174.8 mm |
| Hot-swap HDD bays | Yes |
| Integrated BMC with IPMI | Yes |
| Integrated LAN | Yes |
| Number of SATA connectors | 8 |
| RAID controller type | Broadcom 9361-8i with Cache Vault |
| Warranty period | 3 year(s) |
