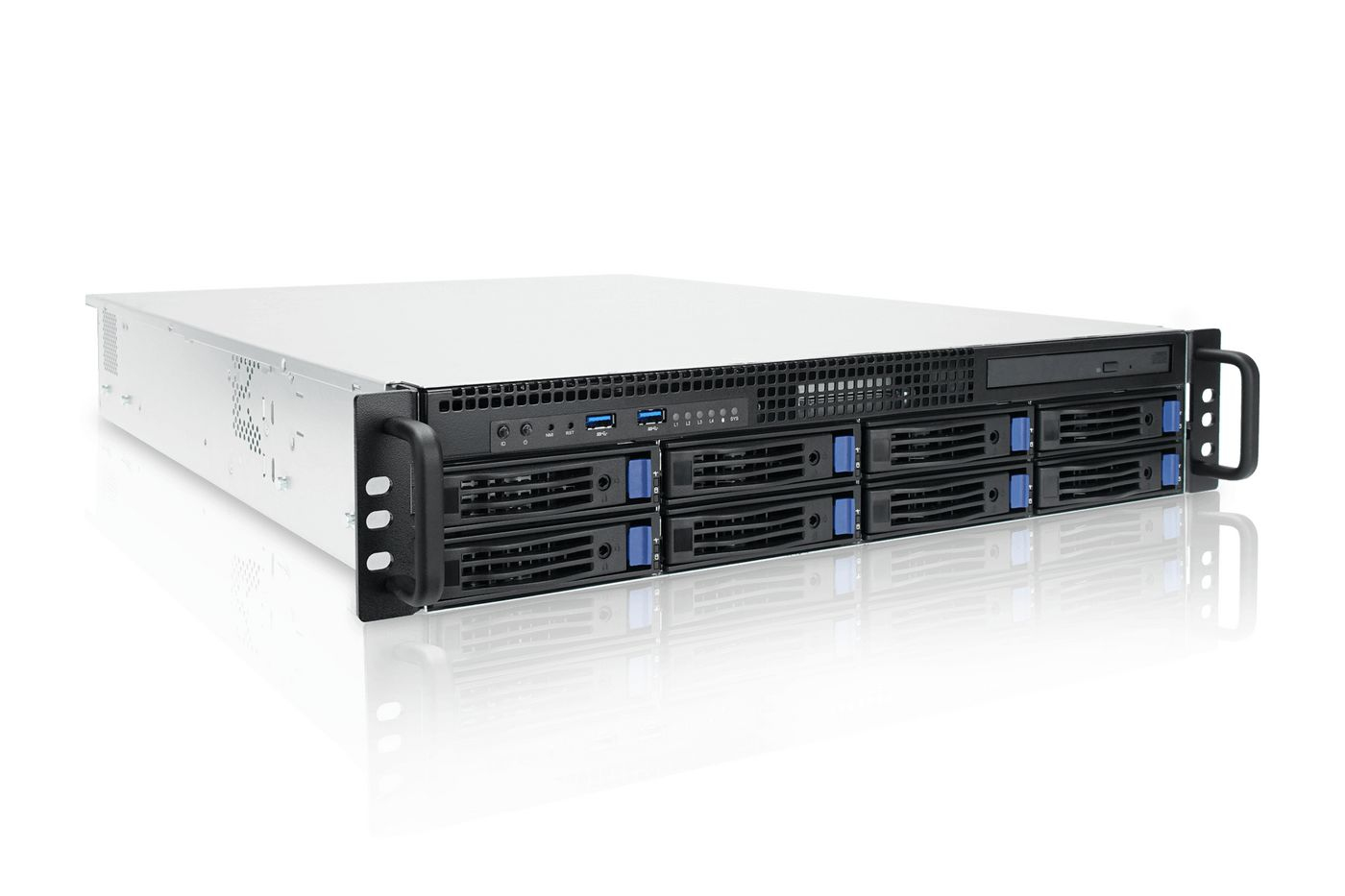

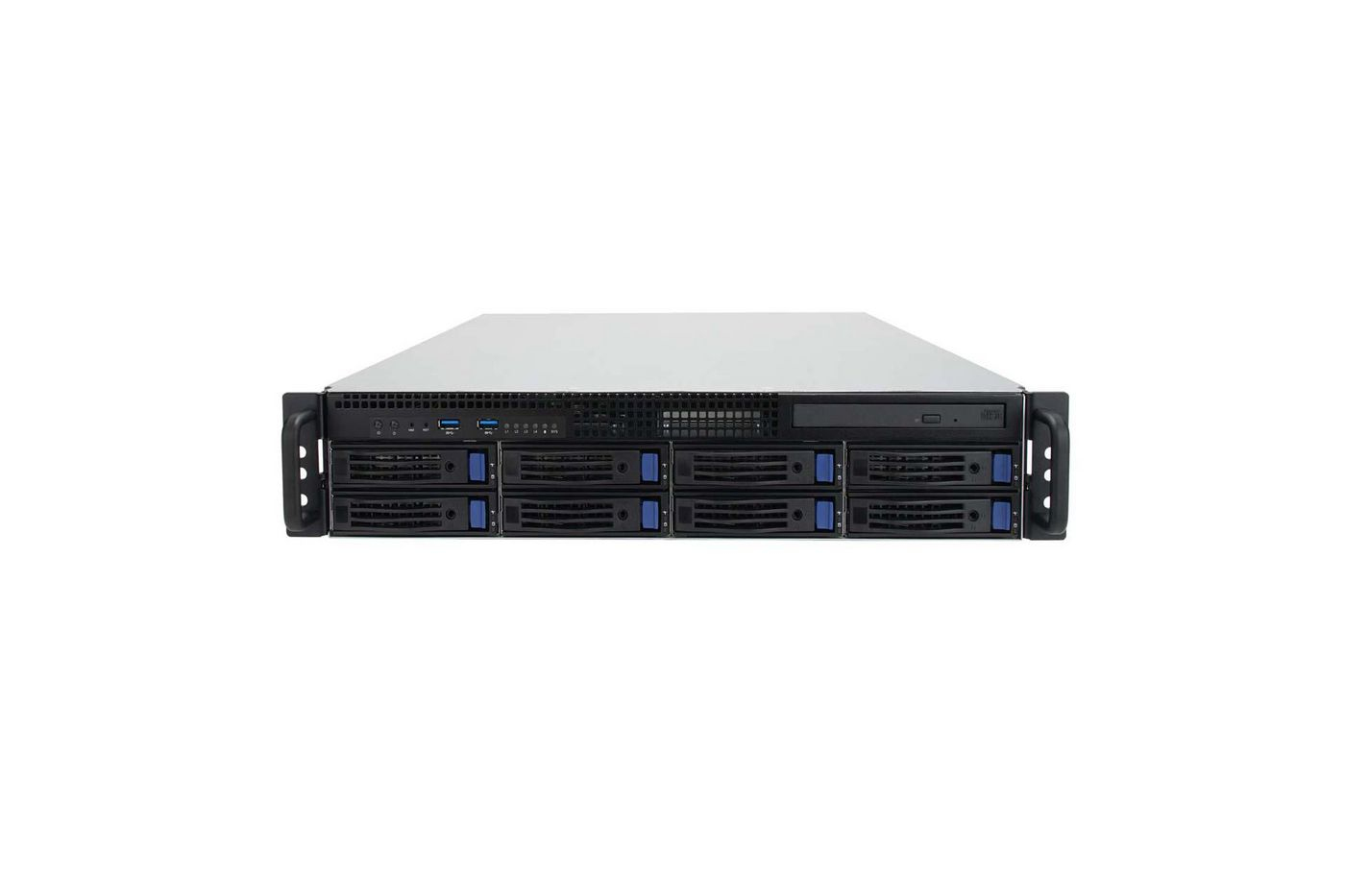

SR-2X58R-A4-HW-WS server
500 GB Rack 6357P 32 GB DDR5-SDRAM 800 W Windows Server 2025
Model SR-2X58R-A4-HW-WSEAN 5715328221031
67 specifications
- Processor6357P
- Memory32 GB
- Storage500 GB
- OSWindows Server 2025
- Weight13 kg
- ColourBlack
Overview
- Processor
- 6357P
- Memory
- 32 GB
- Storage
- 500 GB
- OS
- Windows Server 2025
- Weight
- 13 kg
- Colour
- Black
- Brand
- Ernitec
- Category
- Server
- Model
- SR-2X58R-A4-HW-WS
- Part number
- SR-2X58R-A4-HW-WS
- EAN / UPC
- 5715328221031
- Also known as
- Ernitec SR-2X58R-A4-HW-WS server 500 GB Rack 6357P 32 GB DDR5-SDRAM 800 W Windows Server 2025
Specifications
67 specifications in 13 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor model | 6357P |
| Performance-core base frequency | 3 GHz |
| Performance-core Max Turbo Frequency | 5.4 GHz |
| Performance cores | 8 |
| Processor cores | 8 |
| Processor socket | LGA 1700 |
| Processor threads | 16 |
| Cache internal | 24 MB |
Memory
| Specification | Value |
|---|---|
| Internal memory | 32 GB |
| Internal memory type | DDR5-SDRAM |
| ECC | No |
| Memory layout (slots x size) | 2 x 16 GB |
| Memory data transfer rate | 4400 MT/s |
| Maximum internal memory | 128 GB |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 500 GB |
| HDD capacity | 500 GB |
| Number of HDDs supported | 8 |
| Supported HDD sizes | 2.5" |
| Number of SSDs installed | 2 |
| SSD capacity | 500 GB |
| SSD interface | SATA III |
| SSD size | 2.5" |
| RAID levels | 0 |
| Supported storage drive interfaces | M.2 |
| RAID controller cache | 4 GB |
Graphics
| Specification | Value |
|---|---|
| Discrete graphics card | Yes |
| Discrete graphics card memory | 4 GB |
| On-board graphics card | Yes |
| On-board graphics card model | Aspeed AST2600 |
| Number of displays supported (on-board graphics) | 1 |
| On-board graphics card 4K support | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| LAN controller | Intel® I210-AT |
| Number of LAN controllers | 2 |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 2 |
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 4 |
| Mini DisplayPorts quantity | 4 |
| VGA (D-Sub) ports quantity | 1 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x8 (Gen 4.x) slots | 2 |
| PCI Express x16 (Gen 5.x) slots | 2 |
Design
| Specification | Value |
|---|---|
| Chassis type | Rack |
| Product colour | Black |
| Cooling type | Active |
| Rack mounting | Yes |
| Rack rails | Yes |
Performance
| Specification | Value |
|---|---|
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows Server 2025 |
| Operating system language | English |
Power
| Specification | Value |
|---|---|
| Power supply | 800 W |
| Number of main power supplies | 2 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 590 mm |
| Depth | 830 mm |
| Height | 190 mm |
| Weight | 13 kg |
| Package width | 590 mm |
| Package depth | 830 mm |
| Package height | 190 mm |
| Package weight | 16 kg |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 444.2 x 572.7 x 87 mm |
| Integrated BMC with IPMI | Yes |
| Integrated LAN | Yes |
| RAID controller type | Hardware (Storage drives) |
| Warranty period | 3 year(s) |
