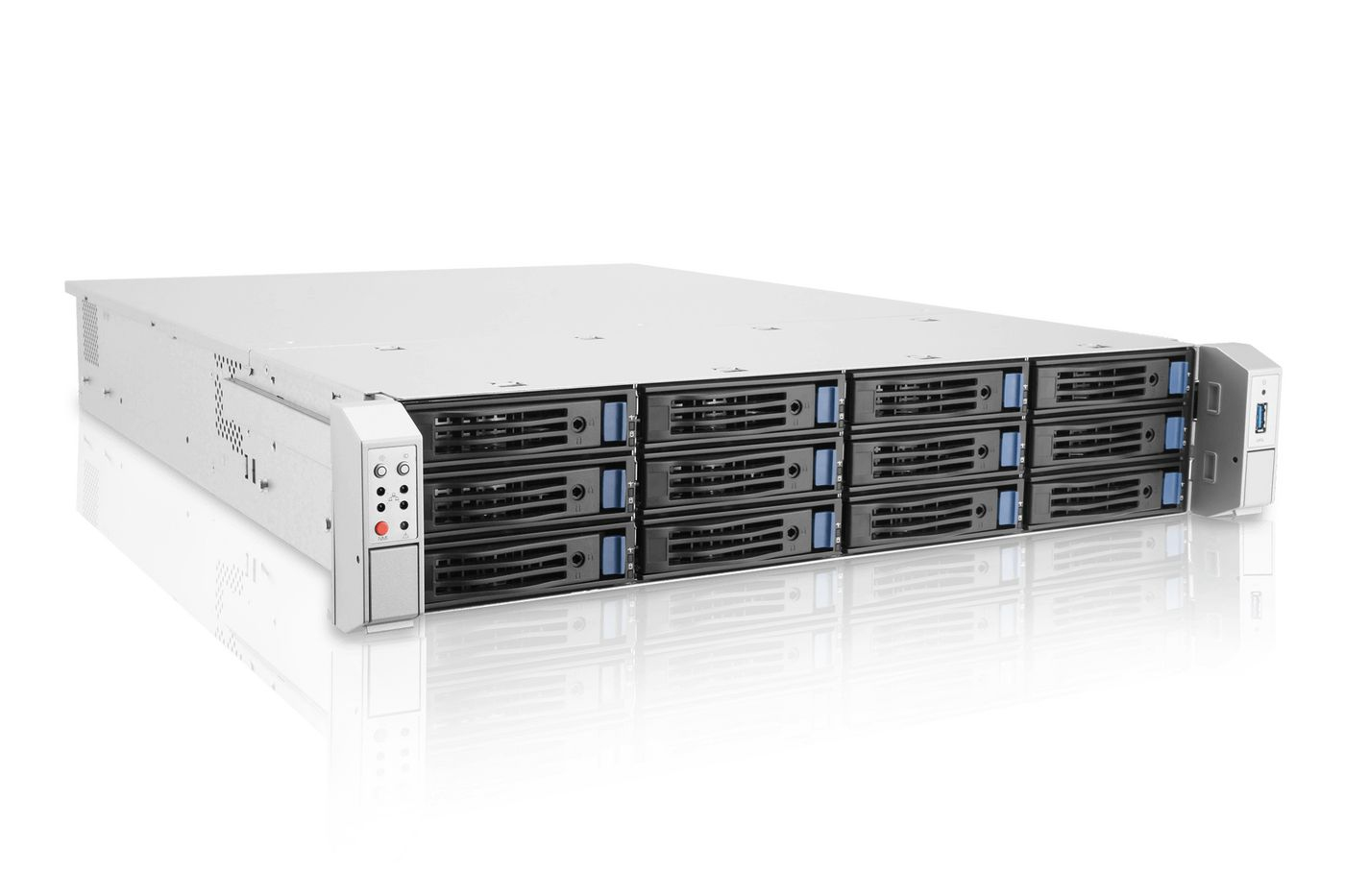

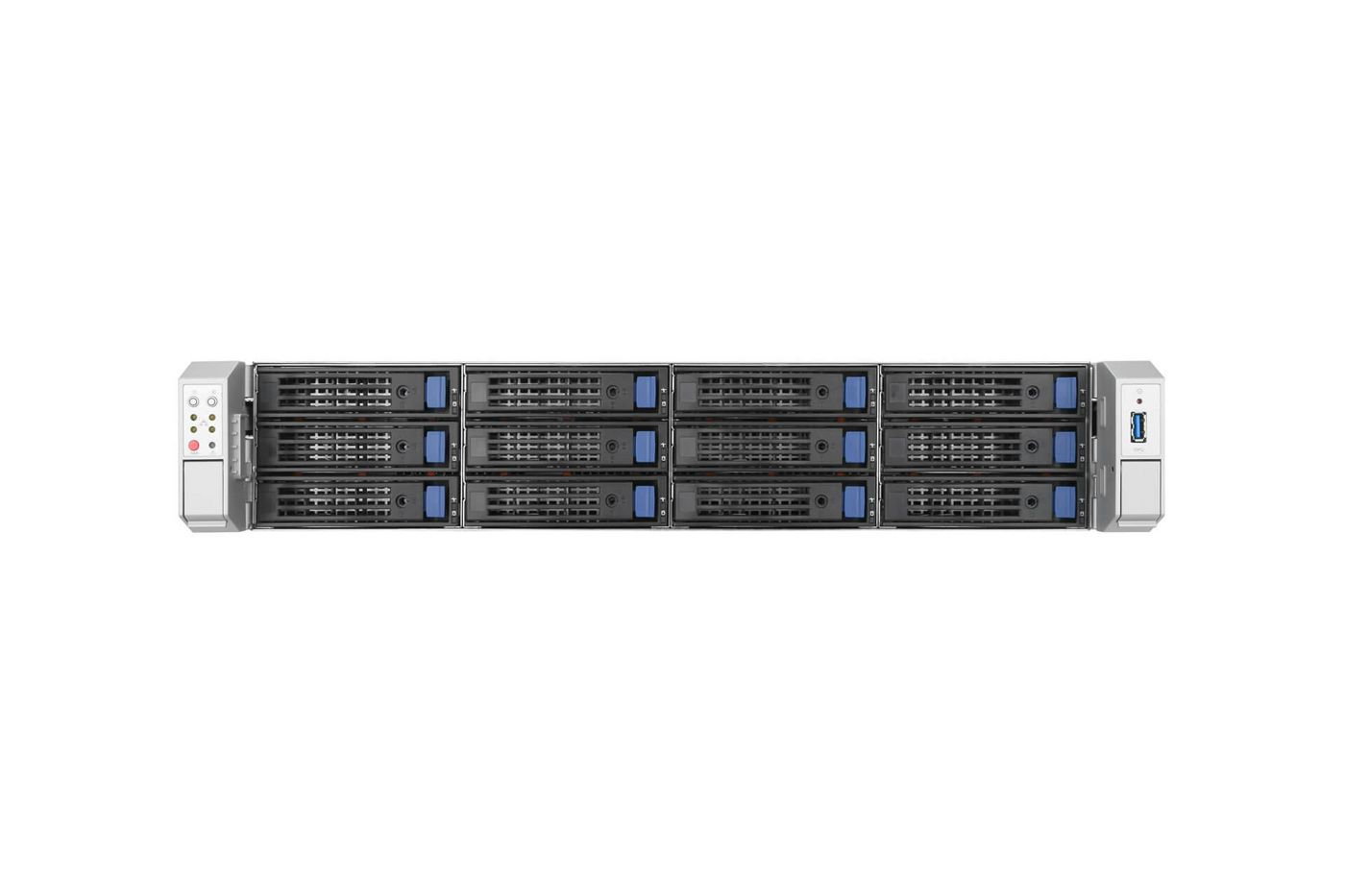

SR-2U712R-HW server Rack
32 GB DDR5-SDRAM Windows 11 Pro
Model SR-2U712R-HWEAN 5715328118607
63 specifications
- Memory32 GB
- Storage1 TB
- OSWindows 11 Pro
- Weight13 kg
- ColourBlack
- Processor manufacturerIntel
Overview
- Memory
- 32 GB
- Storage
- 1 TB
- OS
- Windows 11 Pro
- Weight
- 13 kg
- Colour
- Black
- Processor manufacturer
- Intel
- Brand
- Ernitec
- Category
- Server
- Model
- SR-2U712R-HW
- Part number
- SR-2U712R-HW
- EAN / UPC
- 5715328118607
- Also known as
- Ernitec SR-2U712R-HW server Rack 32 GB DDR5-SDRAM Windows 11 Pro
Specifications
63 specifications in 13 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Efficient-core base frequency | 1.8 GHz |
| Performance-core base frequency | 2.4 GHz |
| Performance-core Max Turbo Frequency | 5.3 GHz |
| Performance cores | 8 |
| Efficient cores | 12 |
| Processor cores | 20 |
| Processor threads | 20 |
| Cache internal | 36 MB |
Memory
| Specification | Value |
|---|---|
| Internal memory | 32 GB |
| Internal memory type | DDR5-SDRAM |
| ECC | No |
| Memory layout (slots x size) | 2 x 16 GB |
| Memory data transfer rate | 4800 MT/s |
| Maximum internal memory | 256 GB |
Storage
| Specification | Value |
|---|---|
| HDD capacity | 1 TB |
| Number of HDDs supported | 12 |
| Supported HDD sizes | 2.5" |
| Number of SSDs installed | 2 |
| SSD capacity | 1 TB |
| NVMe | Yes |
| SSD size | M.2 |
| Number of SSDs supported | 4 |
| RAID levels | 0 |
| RAID controller cache | 4 GB |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| On-board graphics card family | Intel Arc Graphics |
| On-board graphics card model | Intel Arc Graphics |
| Number of displays supported (on-board graphics) | 3 |
| On-board graphics card 4K support | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet interface type | 2.5 Gigabit Ethernet |
| LAN controller | Intel I225-V |
| Number of LAN controllers | 2 |

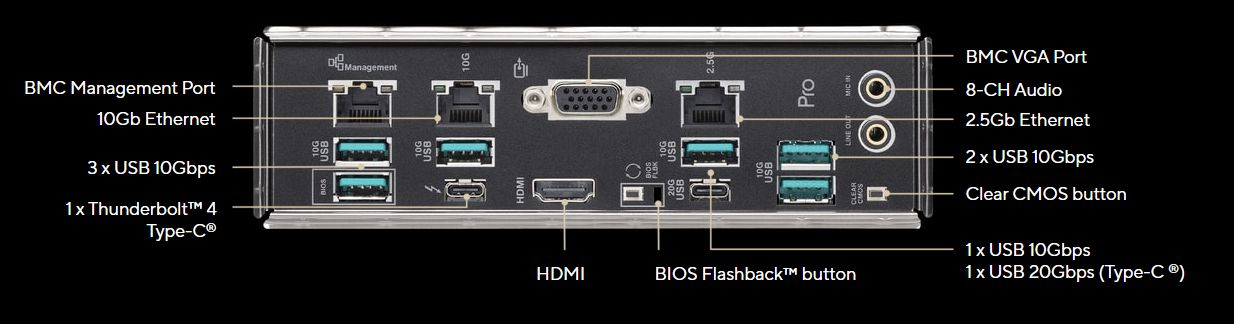

Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 6 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| VGA (D-Sub) ports quantity | 1 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x4 slots | 1 |
| PCI Express x16 (Gen 5.x) slots | 2 |
Design
| Specification | Value |
|---|---|
| Chassis type | Rack |
| Product colour | Black |
| Cooling type | Active |
| Rack mounting | Yes |
| Rack rails | Yes |
Performance
| Specification | Value |
|---|---|
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 11 Pro |
| Operating system language | Multilingual |
Power
| Specification | Value |
|---|---|
| Number of main power supplies | 2 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 590 mm |
| Depth | 830 mm |
| Height | 190 mm |
| Weight | 13 kg |
| Package width | 590 mm |
| Package depth | 830 mm |
| Package height | 190 mm |
| Package weight | 16 kg |
Other features
| Specification | Value |
|---|---|
| Integrated BMC with IPMI | Yes |
| Integrated LAN | Yes |
| RAID controller type | Hardware |
| Warranty period | 3 year(s) |
