SR-1X54R-A4-WS server
500 GB Rack 6357P 16 GB DDR5-SDRAM Windows Server 2025
Model SR-1X54R-A4-WSEAN 5715328221499
62 specifications
- Processor6357P
- Memory16 GB
- Storage500 GB
- OSWindows Server 2025
- Weight8 kg
- ColourBlack
Overview
- Processor
- 6357P
- Memory
- 16 GB
- Storage
- 500 GB
- OS
- Windows Server 2025
- Weight
- 8 kg
- Colour
- Black
- Brand
- Ernitec
- Category
- Server
- Model
- SR-1X54R-A4-WS
- Part number
- SR-1X54R-A4-WS
- EAN / UPC
- 5715328221499
- Also known as
- Ernitec SR-1X54R-A4-WS server 500 GB Rack 6357P 16 GB DDR5-SDRAM Windows Server 2025
Specifications
62 specifications in 13 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor model | 6357P |
| Performance-core base frequency | 3 GHz |
| Performance-core Max Turbo Frequency | 5.4 GHz |
| Performance cores | 8 |
| Processor cores | 8 |
| Processor socket | LGA 1700 |
| Processor threads | 16 |
| Cache internal | 24 MB |
Memory
| Specification | Value |
|---|---|
| Internal memory | 16 GB |
| Internal memory type | DDR5-SDRAM |
| Memory layout (slots x size) | 2 x 8 GB |
| Memory data transfer rate | 4400 MT/s |
| Maximum internal memory | 128 GB |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 500 GB |
| HDD capacity | 500 GB |
| Number of HDDs supported | 4 |
| Supported HDD sizes | 2.5" |
| Number of SSDs installed | 2 |
| SSD capacity | 500 GB |
| SSD size | 2.5" |
| Hot-swap | Yes |
| Supported storage drive interfaces | M.2 |
Graphics
| Specification | Value |
|---|---|
| Discrete graphics card | Yes |
| Discrete graphics card memory | 4 GB |
| On-board graphics card | Yes |
| On-board graphics card model | Aspeed AST2600 |
| Number of displays supported (on-board graphics) | 1 |
| On-board graphics card 4K support | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| LAN controller | Intel® I210-AT |
| Number of LAN controllers | 2 |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 2 |
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 4 |

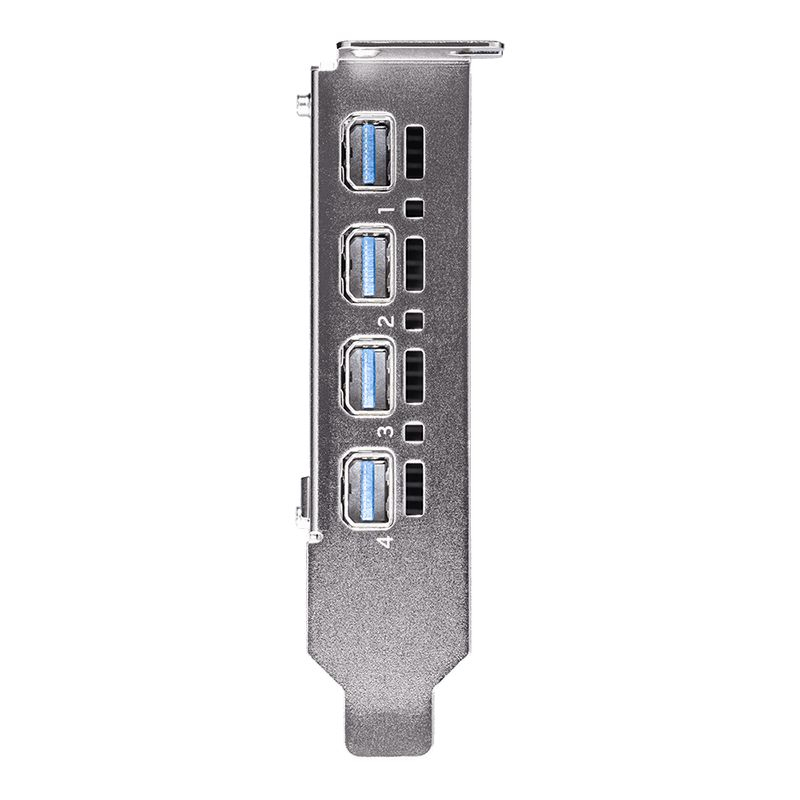

| Mini DisplayPorts quantity | 4 |
| VGA (D-Sub) ports quantity | 1 |
Design
| Specification | Value |
|---|---|
| Chassis type | Rack |
| Product colour | Black |
| Cooling type | Active |
| Rack mounting | Yes |
| Rack rails | Yes |
Performance
| Specification | Value |
|---|---|
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows Server 2025 |
| Operating system language | English |
Power
| Specification | Value |
|---|---|
| Number of main power supplies | 2 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 580 mm |
| Depth | 680 mm |
| Height | 137 mm |
| Weight | 8 kg |
| Package width | 580 mm |
| Package depth | 680 mm |
| Package height | 137 mm |
| Package weight | 9 kg |
Technical details
| Specification | Value |
|---|---|
| Supported RAID configuration | 0, 1, 10 |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 430 x 537.55 x 43.3 mm |
| Integrated BMC with IPMI | Yes |
| Integrated LAN | Yes |
| RAID controller type | Software |
| Warranty period | 3 year(s) |
