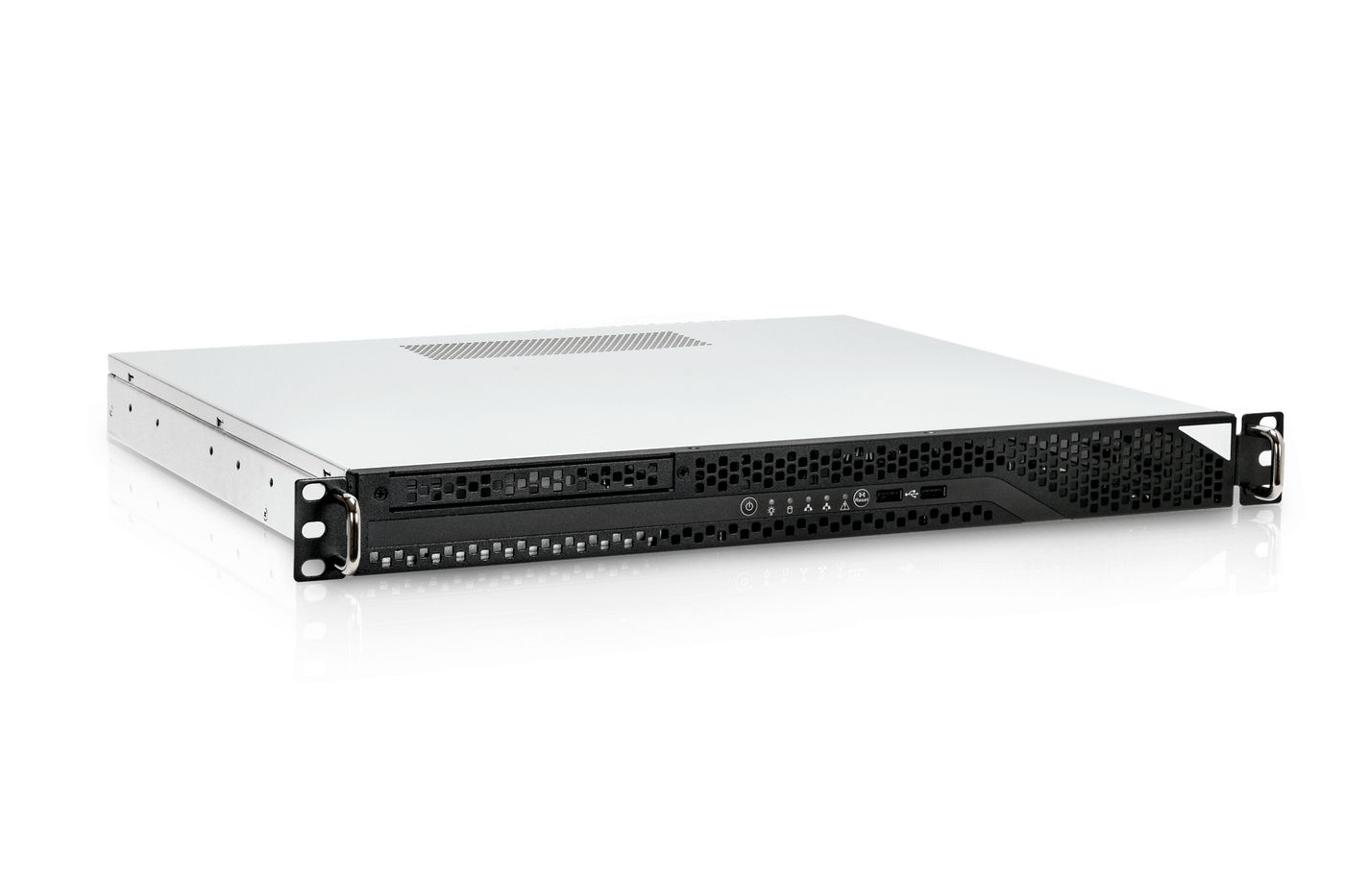

SR-1X1F2-A4 server Rack Intel Xeon E E-2414
16 GB DDR5-SDRAM Windows 11 Pro
Model SR-1X1F2-A4EAN 5715328192607
56 specifications
- ProcessorIntel Xeon E
- Memory16 GB
- Storage1 TB
- OSWindows 11 Pro
- Weight5 kg
- ColourBlack
Overview
- Processor
- Intel Xeon E
- Memory
- 16 GB
- Storage
- 1 TB
- OS
- Windows 11 Pro
- Weight
- 5 kg
- Colour
- Black
- Brand
- Ernitec
- Category
- Server
- Model
- SR-1X1F2-A4
- Part number
- SR-1X1F2-A4
- EAN / UPC
- 5715328192607
- Also known as
- Ernitec SR-1X1F2-A4 server Rack Intel Xeon E E-2414 16 GB DDR5-SDRAM Windows 11 Pro
Specifications
56 specifications in 12 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel Xeon E |
| Processor model | E-2414 |
| Performance-core base frequency | 2.6 GHz |
| Performance-core Max Turbo Frequency | 4.5 GHz |
| Performance cores | 4 |
| Processor cores | 4 |
| Processor threads | 4 |
| Cache internal | 12 MB |
Memory
| Specification | Value |
|---|---|
| Internal memory | 16 GB |
| Internal memory type | DDR5-SDRAM |
| Memory clock speed | 4400 MHz |
| Memory layout (slots x size) | 2 x 8 GB |
| Maximum internal memory | 128 GB |
Storage
| Specification | Value |
|---|---|
| HDD capacity | 1 TB |
| Number of HDDs supported | 2 |
| Supported HDD sizes | 2.5" |
| Number of SSDs installed | 1 |
| SSD capacity | 1 TB |
| NVMe | Yes |
| SSD interface | PCI Express |
| SSD size | M.2 |
Graphics
| Specification | Value |
|---|---|
| Discrete graphics card | Yes |
| Discrete graphics card memory | 4 GB |
| On-board graphics card | Yes |
| On-board graphics card model | Aspeed AST2600 |
| Number of displays supported (on-board graphics) | 1 |
| On-board graphics card 4K support | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet interface type | Gigabit Ethernet |
| LAN controller | Intel® I210-AT |
| Number of LAN controllers | 2 |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 4 |
| Mini DisplayPorts quantity | 4 |
| VGA (D-Sub) ports quantity | 1 |
Design
| Specification | Value |
|---|---|
| Chassis type | Rack |
| Product colour | Black |
| Cooling type | Active |
| Rack mounting | Yes |
Performance
| Specification | Value |
|---|---|
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 11 Pro |
| Operating system language | Multilingual |
Power
| Specification | Value |
|---|---|
| Number of main power supplies | 1 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 595 mm |
| Depth | 520 mm |
| Height | 155 mm |
| Weight | 5 kg |
| Package width | 595 mm |
| Package depth | 520 mm |
| Package height | 155 mm |
| Package weight | 6 kg |
Other features
| Specification | Value |
|---|---|
| Integrated BMC with IPMI | Yes |
| Integrated LAN | Yes |
| RAID controller type | Software |
| Warranty period | 3 year(s) |
