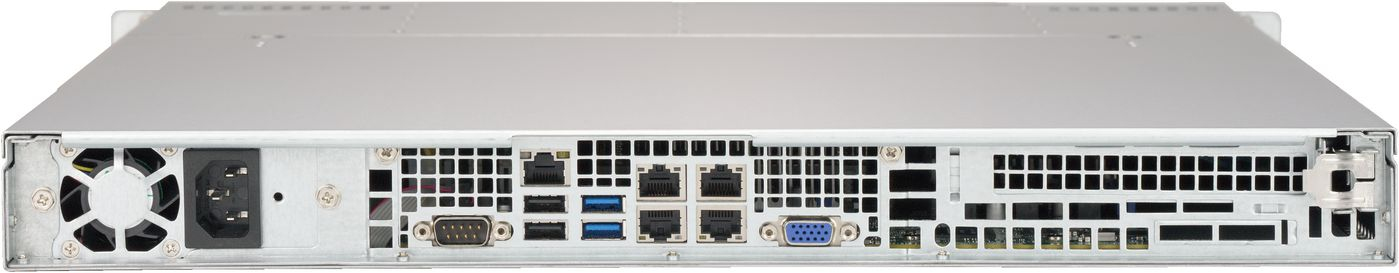

-BX-I7-16-R4-2X8TB server
16 TB Rack Intel® Core™ i7 4.9 GHz 16 GB 500 W
Model SERVER-BX-I7-16-R4-2X8TBEAN 5715063284889
48 specifications
- ProcessorIntel® Core™ i7
- Memory16 GB
- Storage16 TB
- Type1U
- Weight12 kg
- Processor manufacturerIntel
Overview
- Processor
- Intel® Core™ i7
- Memory
- 16 GB
- Storage
- 16 TB
- Type
- 1U
- Weight
- 12 kg
- Processor manufacturer
- Intel
- Brand
- Ernitec
- Category
- Server
- Model
- SERVER-BX-I7-16-R4-2X8TB
- Part number
- SERVER-BX-I7-16-R4-2X8TB
- EAN / UPC
- 5715063284889
- Also known as
- Ernitec -BX-I7-16-R4-2X8TB server 16 TB Rack Intel® Core™ i7 4.9 GHz 16 GB 500 W
Specifications
48 specifications in 13 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i7 |
| Processor frequency | 4.9 GHz |
| Processor cores | 12 |
| Thermal Design Power (TDP) | 65 W |
| Processor socket | LGA 1700 |
| Processor threads | 20 |
Memory
| Specification | Value |
|---|---|
| Internal memory | 16 GB |
| Buffered memory type | Unregistered (unbuffered) |
| Memory clock speed | 4400 MHz |
| Memory layout (slots x size) | 2 x 8 GB |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 16 TB |
| Number of HDDs installed | 4 |
| Number of HDDs supported | 4 |
| Supported HDD sizes | 3.5" |
| SSD capacity | 500 GB |
| RAID levels | 0 |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card model | Intel UHD Graphics 770 |
Network
| Specification | Value |
|---|---|
| Ethernet interface type | 2.5 Gigabit Ethernet |
| LAN controller | Intel I225-LM |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 2 |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 2 |
Design
| Specification | Value |
|---|---|
| Chassis type | Rack |
Performance
| Specification | Value |
|---|---|
| BIOS type | UEFI |
| Trusted Platform Module (TPM) version | 2.0 |
Software
| Specification | Value |
|---|---|
| Compatible operating systems | Windows 10/11, Windows Server 2022 |
Power
| Specification | Value |
|---|---|
| Number of power supply units | 1 |
| Power supply | 500 W |
| Number of main power supplies | 1 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 437 mm |
| Depth | 503 mm |
| Height | 43 mm |
| Weight | 12 kg |
| Package width | 600 mm |
| Package depth | 760 mm |
| Package height | 220 mm |
| Package weight | 17 kg |
Technical details
| Specification | Value |
|---|---|
| Number of 3.5" bays | 4 |
| Number of storage drives supported | 4 |
| 2.5" HDD support | 2 |
| 3.5" HDD support | 4 |
Other features
| Specification | Value |
|---|---|
| Form factor | 1U |
| Number of DIMM slots | 4 |
| Number of SATA connectors | 4 |
| Number of drive bays | 4 |
| RAID controller type | Software RAID |
| Warranty period | 5 year(s) |
